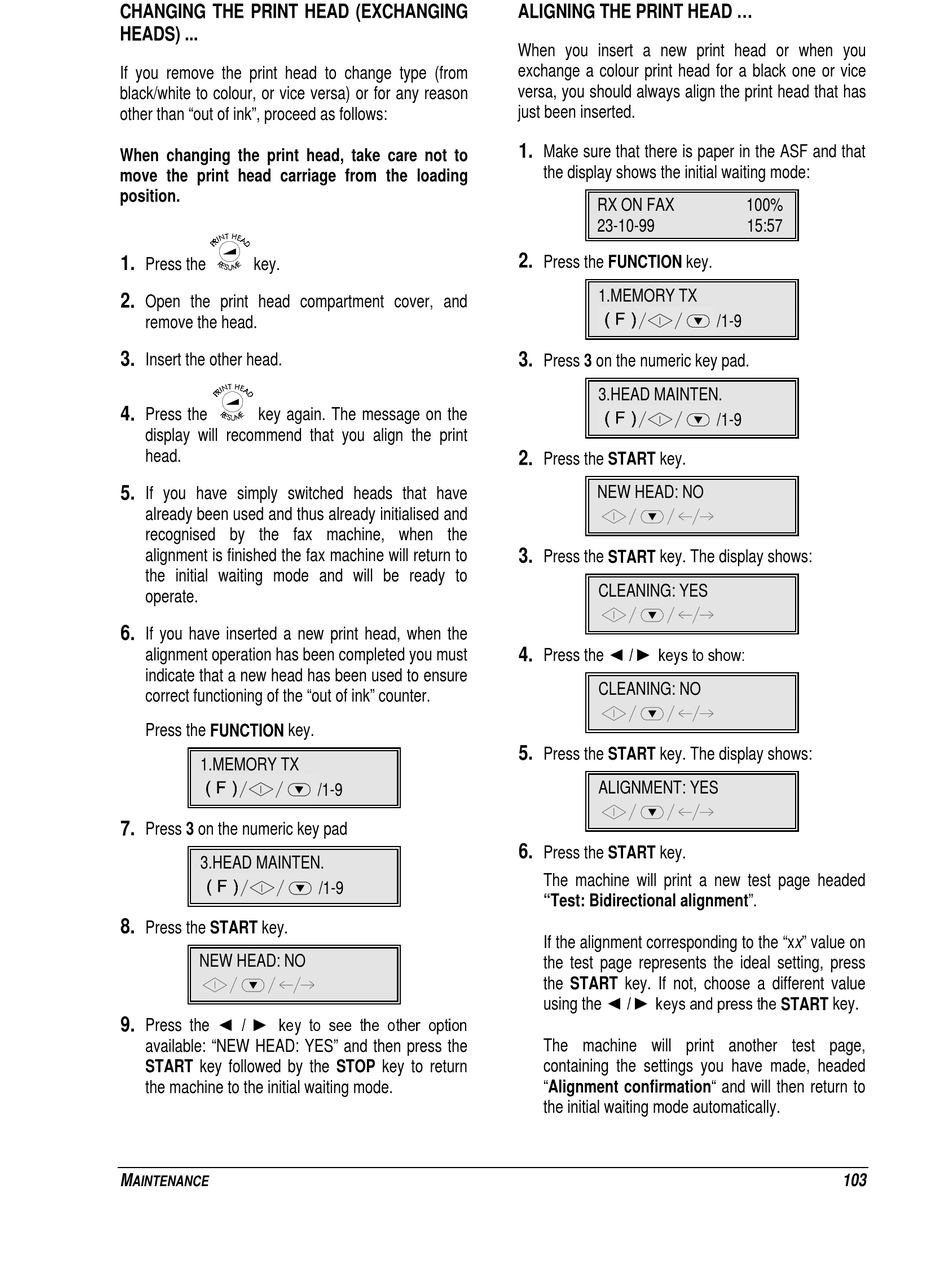

CHANGING THE PRINT HEAD (EXCHANGING
HEADS) ...
If you remove the print head to change type (from
black/white to colour, or vice versa) or for any reason
other than "out of ink", proceed as follows:
When changing the print head, take care not to
move the print head carriage from the loading
position.
1.
Press the key.
2.
Open the print head compartment cover, and
remove the head.
3.
Insert the other head.
4.
Press the key again. The message on the
display will recommend that you align the print
head.
5.
If you have simply switched heads that have
already been used and thus already initialised and
recognised by the fax machine, when the
alignment is finished the fax machine will return to
the initial waiting mode and will be ready to
operate.
6.
If you have inserted a new print head, when the
alignment operation has been completed you must
indicate that a new head has been used to ensure
correct functioning of the "out of ink" counter.
Press the FUNCTION key.
1.MEMORY TX
7.
Press 3 on the numeric key pad
3.HEAD MAINTEN.
8.
Press the START key.
NEW HEAD: NO


9.
Press the
available: "NEW HEAD: YES" and then press the
START key followed by the STOP key to return
the machine to the initial waiting mode.
M
AINTENANCE
/1-9
/1-9

ALIGNING THE PRINT HEAD ...

When you insert a new print head or when you
exchange a colour print head for a black one or vice
versa, you should always align the print head that has
just been inserted.
1.
Make sure that there is paper in the ASF and that
the display shows the initial waiting mode:
RX ON FAX
23-10-99
2.
Press the FUNCTION key.
1.MEMORY TX
3.
Press 3 on the numeric key pad.
3.HEAD MAINTEN.
2.
Press the START key.
NEW HEAD: NO
3.
Press the START key. The display shows:
CLEANING: YES


4.
Press the
CLEANING: NO
5.
Press the START key. The display shows:
ALIGNMENT: YES
6.
Press the START key.
The machine will print a new test page headed
"Test: Bidirectional alignment".
If the alignment corresponding to the "xx" value on
the test page represents the ideal setting, press
the START key. If not, choose a different value

using the
The machine will print another test page,
containing the settings you have made, headed
"Alignment confirmation" and will then return to
the initial waiting mode automatically.
100%
15:57
/1-9
/1-9
START key.
