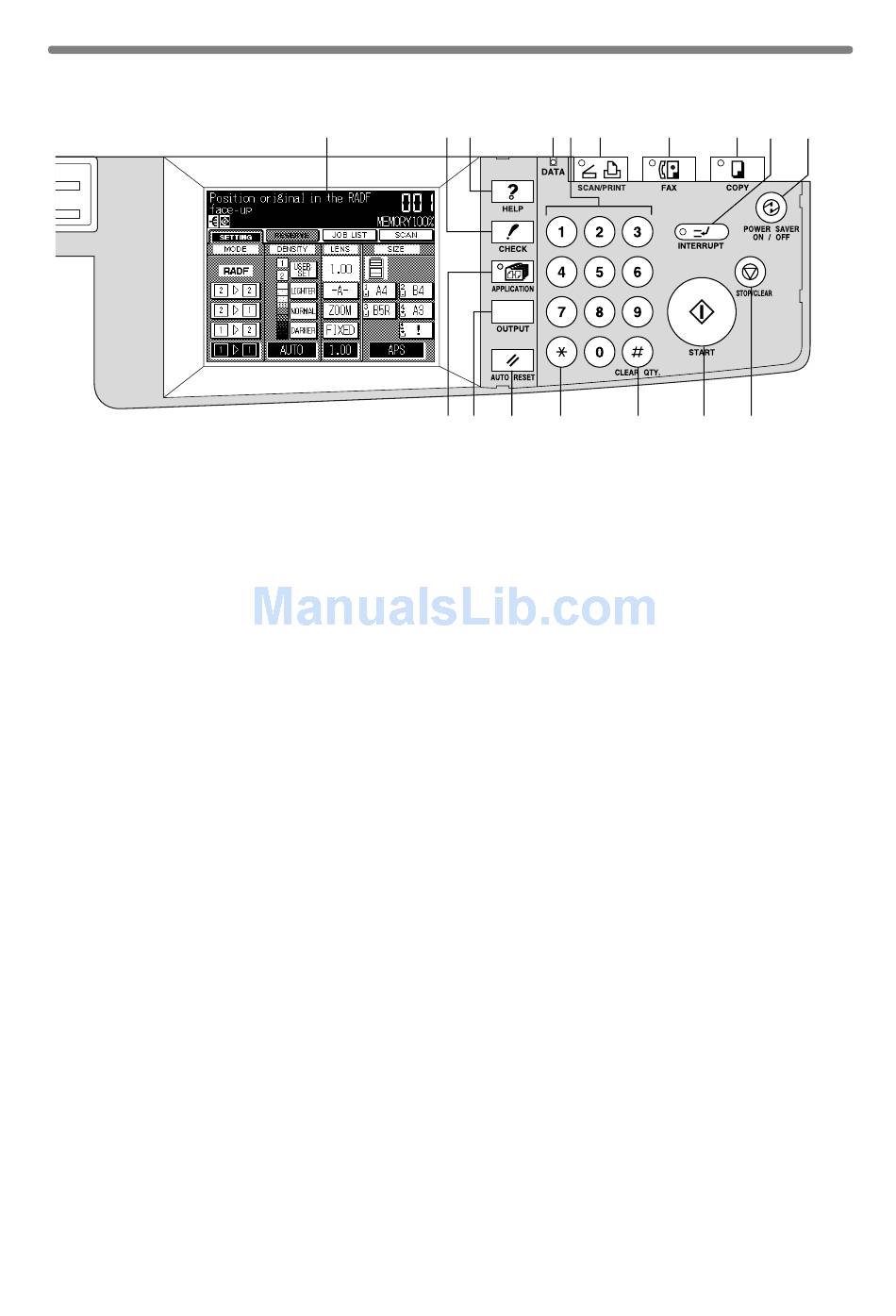

Control Panel Layout

1 LCD TOUCH SCREEN displays machine and copying status, help information,
interactive screens, and touch keys for selecting all functions.
2 CHECK displays a screen showing all settings that are selected for the current job.
3 HELP displays a screen with help for the currently selected function, and access to the
Key Operator Mode Screen.
4 DATA blinks while receiving print data in printer mode, then lights after completing it.
5 KEYPAD enters numeric values.
6 SCAN/PRINT switches the machine operation mode to scanner and printer in turn.
7 FAX switches the machine operation mode to facsimile.
8 COPY switches the machine operation mode to copy.
9 INTERRUPT stops copying/facsimile/printing/scanning in progress to allow copying from
the platen glass.
10 POWER SAVER ON/OFF activates power-saving mode for times when the copier is
inactive.
11 STOP/CLEAR stops the copying sequence; deletes the stored memory.
12 START activates copying or scanning.
13 [#] (CLEAR QTY.) allows resetting of print quantity.
14 [✽] (COUNTER) displays the Counter List Screen or accesses programming modes for
setting special functions.
15 AUTO RESET restores copier to default settings or to Key Operator settings.
16 OUTPUT displays screens for selecting an Exit tray for Sort/ Staple/ Group mode in the
machine with Finisher, selecting an Exit tray for E-SORT+sort/ E-SORT+group/ Group
mode in the machine with Inner tray, or selecting E-SORT+sort/ E-SORT+group/ Group
mode in the machine without Finisher.
17 APPLICATION displays a menu screen for selecting special application functions, or
displays screens for selecting Job Store/ Job Recall functions.
2-8
Machine Configuration (continued)
1 2 3
17 16
4 5 6 7
15 14 13
8 9 10
12 11
