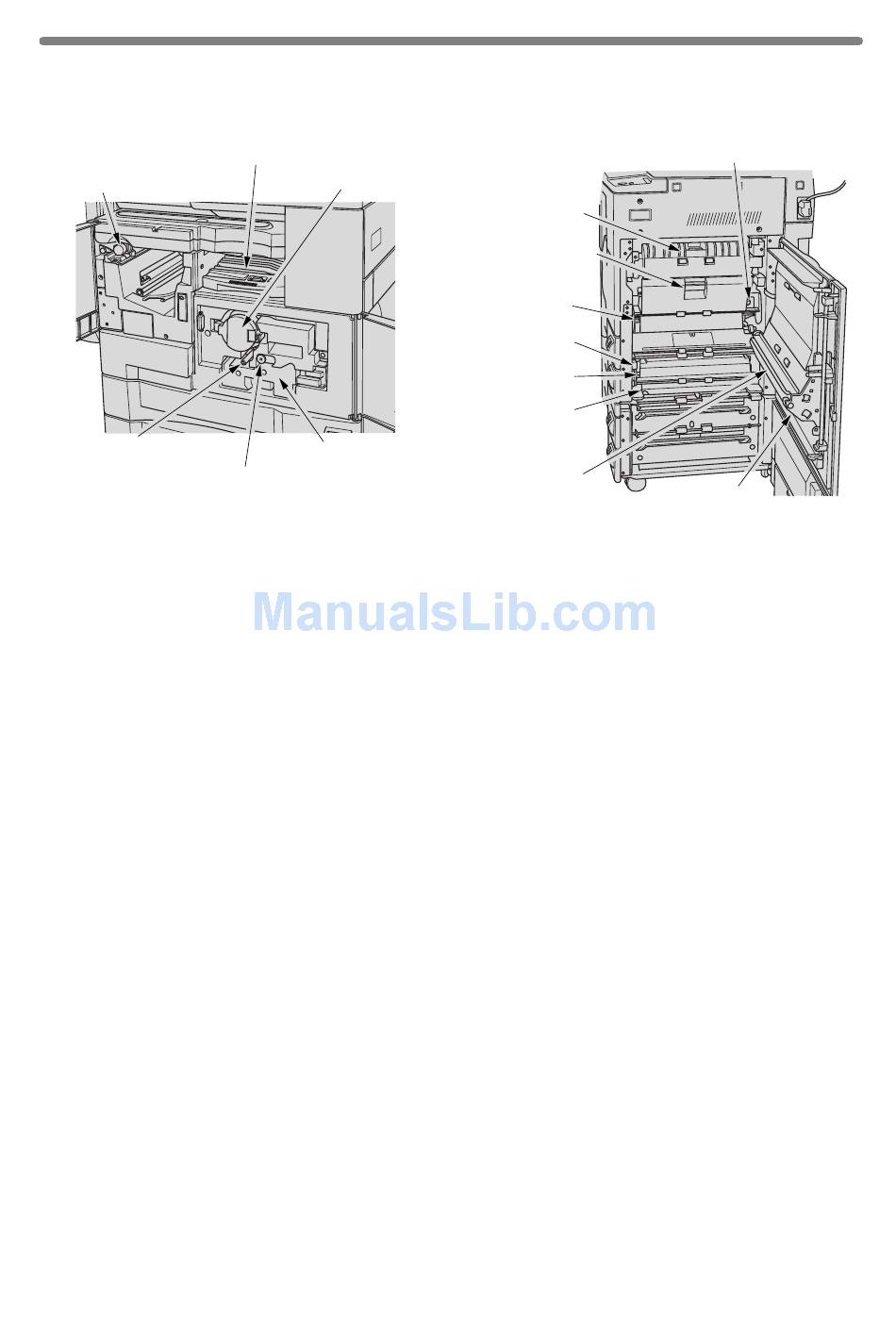

Internal Machine Items

2 Finisher conveyance unit
1 Finisher knob
4 Writing unit glass
cleaning knob
5 Corona wire cleaning knob
1 Finisher knob can be turned to ease removal of mishandled paper in the Finisher.
2 Finisher conveyance unit can be opened to ease removal of mishandled paper in
the Finisher.
3 Toner bottle cover is to be opened when supplying toner.
4 Writing unit glass cleaning knob is withdrawn to clean the writing unit glass.
5 Corona wire cleaning knob is withdrawn to clean the corona wire.
6 Developing unit prints images to the drum, and needs to be replaced periodically.
7 Transfer/Separator wire cleaning lever forms the copy image.
8 Fixing unit guide 5 fuses the toner onto the copy paper, and is to be opened for
removal of mishandled paper.
9 Conveyance unit cover 6 passes the paper through the drum unit, and is to be
opened for removal of mishandled paper.
10 Lever 1 can be opened for removal of mishandled paper.
11 Lever 2 can be opened to release the pressure rollers for removal of mishandled
paper.
12 Cover 3 can be opened for removal of mishandled paper.
13 Lever 7 can be opened for removal of mishandled paper.
14 ADU is used for stackless duplex copying.
15 Lever 4 can be opened for removal of mishandled paper in ADU.
2-4
Machine Configuration (continued)
3 Toner bottle cover
8 Fixing unit guide 5
6 Developing unit
7 Transfer/Separator wire
9 Conveyance
unit cover 6
10 Lever 1
11 Lever 2
12 Cover 3
13 Lever 7
14 ADU
cleaning lever
15 Lever 4
