Loading Paper in DB-410 Tray

DB-410 tray: Tray 3
1.
Withdraw the DB-410 tray.
See p. 2-2 to check positions of each tray.
Do not withdraw the tray forcibly; otherwise you may be injured.
2.

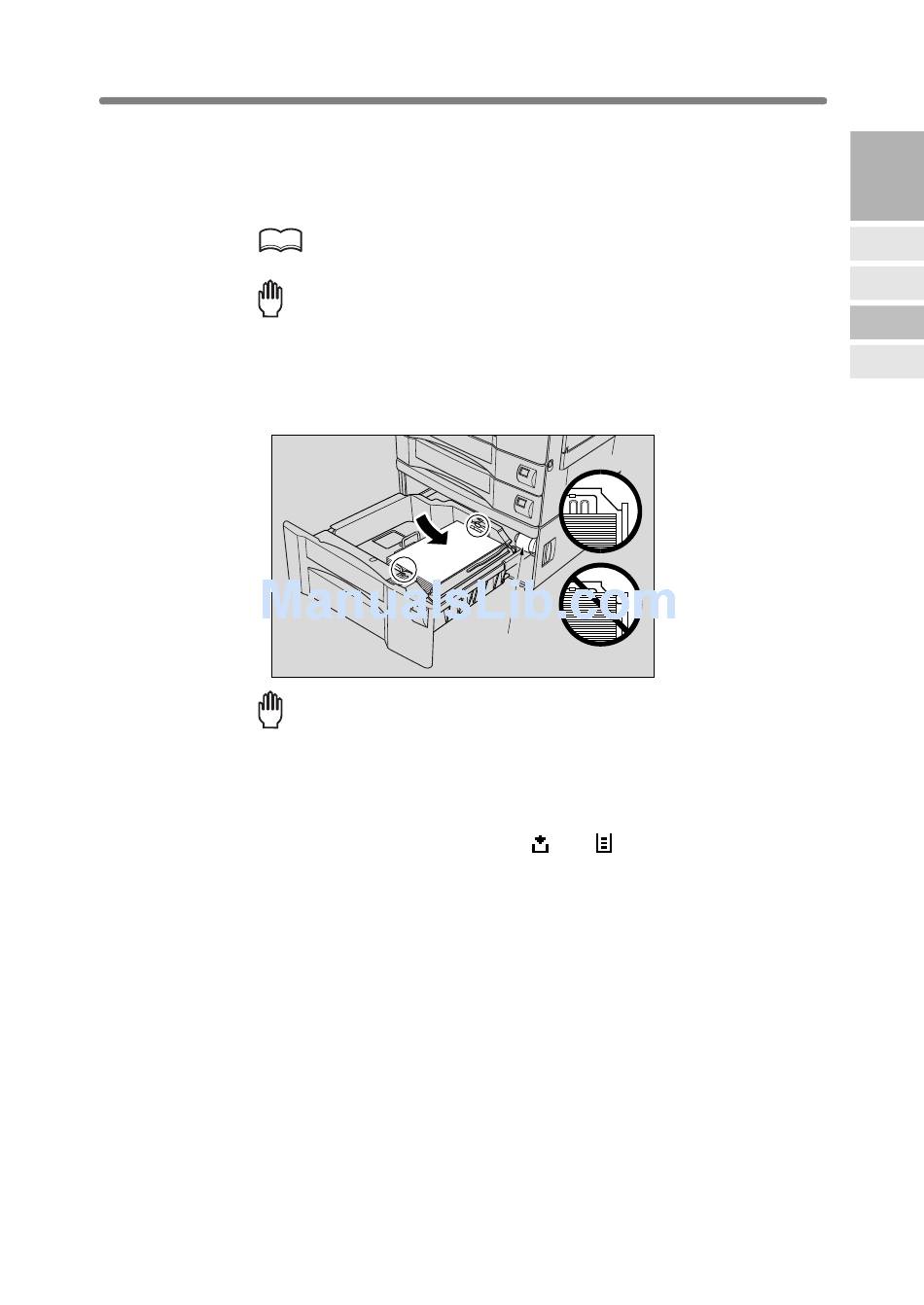

Stack paper with curl side up.
Load paper, aligning it to the right side of the tray.
The tray bottom will lower due to the stacker paper weight.
• Do not load paper above the hooks on the side guide plates.
• Be sure that the rear guide plate is correctly positioned according to the
paper size to be loaded; otherwise machine trouble may occur.
3.
Push in the tray until it locks into place.
The indicator on the tray 3 key will change from "
HINT
Reminder!
Size indication dial
Reminder!
Loading Paper (continued)
" to " ".
