Output Mode for Machine with Finisher

Finisher FS-107 is initially equipped with two exit trays. If desired, up to two optional exit
trays can be installed.
Each exit tray provides output modes as described below.

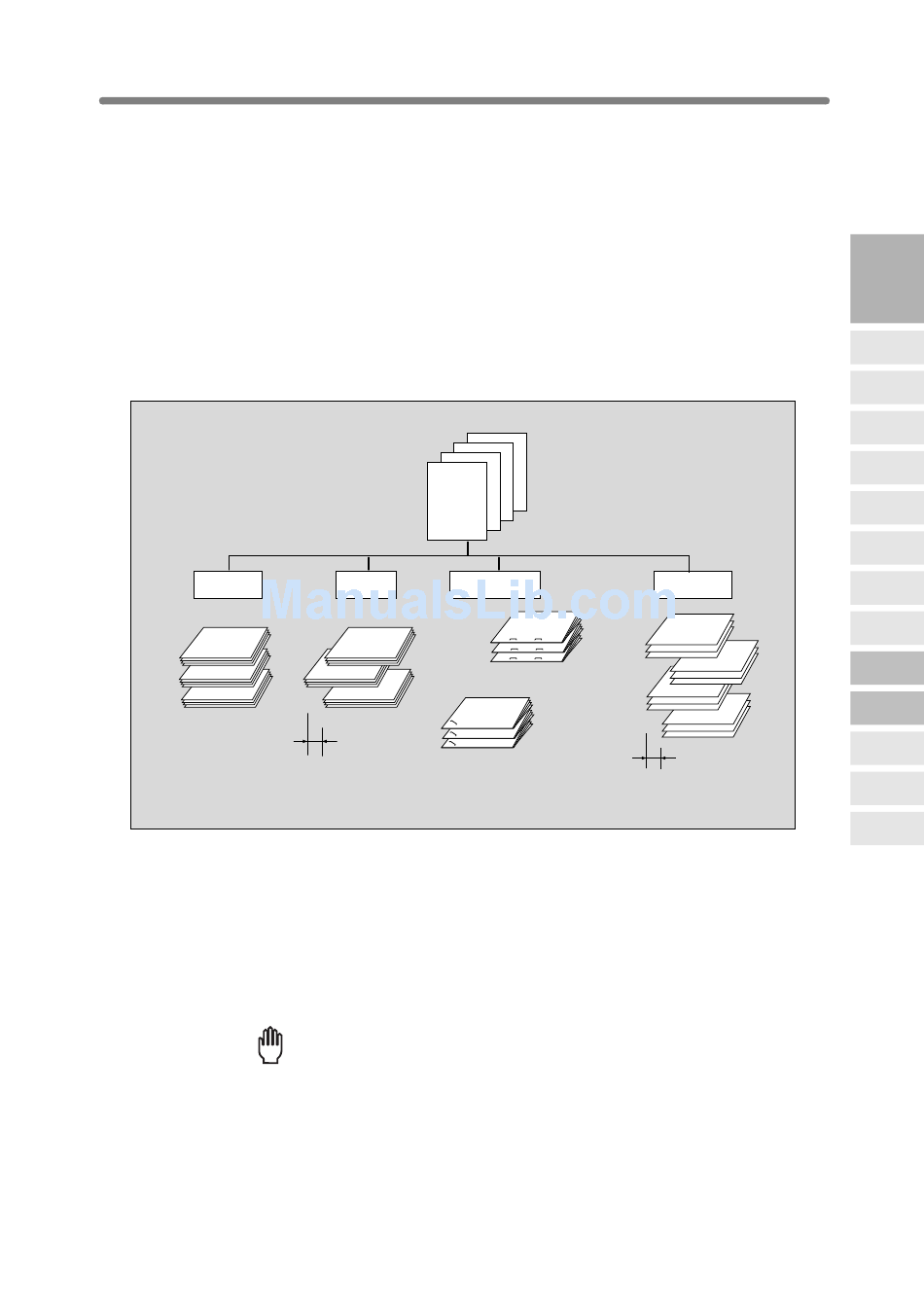

1 Stack mode means that the offset-stacker finisher modes are not selected. Copies
will be stacked upon exit without being offset by sorted sets.
2 Sort mode outputs multiple copies of the original set; each sorted set will be offset by
30mm upon exit.
3 Staple mode offsets and staples each sorted set. Up to 50 sheets (or a stack up to
5mm thick) can be stapled.
4 Group mode groups together multiple copies of each original and offsets the sets by
30mm upon exit.
Stack
4
3
2
1
4
3
2
1
4
3
2
1
Offset by 30mm
The copier is initially set to output to tray 1 in Sort mode.
Follow the procedure on the next page to change the output mode, as desired.
>>>Specification for Output Modes with Finisher<<<
❒ Incompatible with Sort mode: Using platen glass (unless Image Insert, Dual Page,
or Platen store mode is used), OHP, Repeat, AUTO Layout, Non-Image Area Erase
❒ Incompatible with Staple mode: Using platen glass (unless Image Insert, Dual
Page, or Platen store mode is used), Booklet, OHP, Special Original (Mixed Original
with APS), Repeat, AUTO Layout, Non-Image Area Erase
Using excessively curled paper or some types of thin paper in Staple mode
may cause poor results in arrangement of the stapled sets.
❒ Incompatible with Group mode: Proof Copy, Sheet/Cover Insertion, Booklet, OHP,
Image Insert, Repeat, AUTO Layout, Non-Image Area Erase, Stamp (Numbering)
Sort Staple-sort
