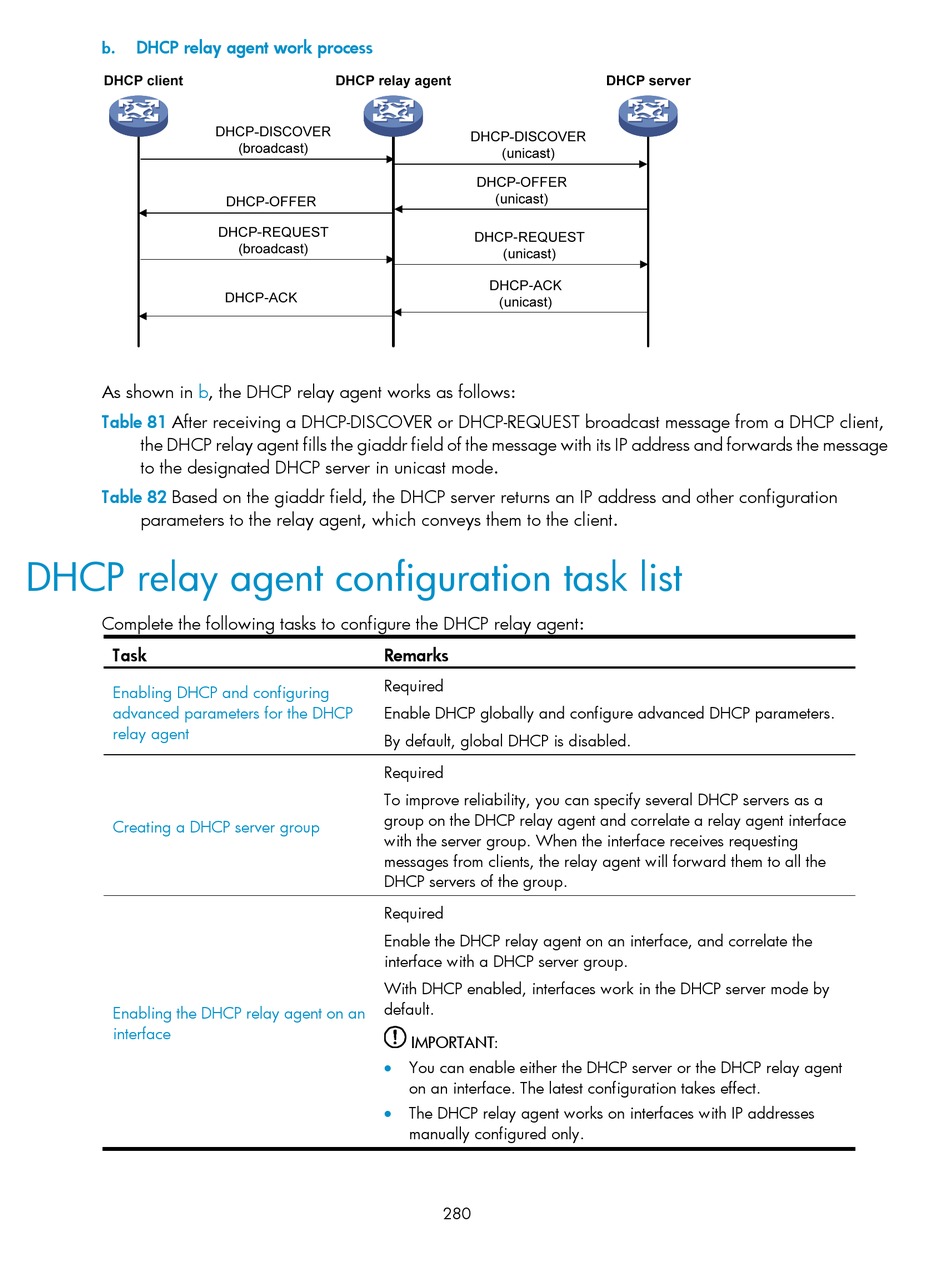

DHCP relay agent work process
b.
As shown in b, the DHCP relay agent works as follows:
Table 81 After receiving a DHCP-DISCOVER or DHCP-REQUEST broadcast message from a DHCP client,
the DHCP relay agent fills the giaddr field of the message with its IP address and forwards the message
to the designated DHCP server in unicast mode.
Table 82 Based on the giaddr field, the DHCP server returns an IP address and other configuration
parameters to the relay agent, which conveys them to the client.

DHCP relay agent configuration task list

Complete the following tasks to configure the DHCP relay agent:
Task
Enabling DHCP and configuring
advanced parameters for the DHCP
relay agent
Creating a DHCP server group
Enabling the DHCP relay agent on an
interface
Remarks
Required
Enable DHCP globally and configure advanced DHCP parameters.
By default, global DHCP is disabled.
Required
To improve reliability, you can specify several DHCP servers as a
group on the DHCP relay agent and correlate a relay agent interface
with the server group. When the interface receives requesting
messages from clients, the relay agent will forward them to all the
DHCP servers of the group.
Required
Enable the DHCP relay agent on an interface, and correlate the
interface with a DHCP server group.
With DHCP enabled, interfaces work in the DHCP server mode by
default.
IMPORTANT:

You can enable either the DHCP server or the DHCP relay agent
on an interface. The latest configuration takes effect.

The DHCP relay agent works on interfaces with IP addresses
manually configured only.
280
