HP V1810-48G Quickspecs

1810 series.
Hide thumbs
QuickSpecs
Overview
Models
Models
Models
Models

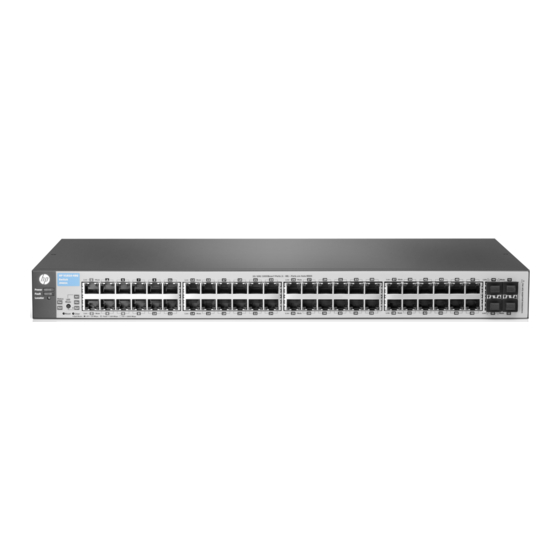

HP 1810-48G Switch
HP 1810-24G Switch
HP 1810-8G Switch
Key features
Key features
Key features
Key features
Customized operation using intuitive Web interface
Flexible connection and deployment options
Layer 2 operation at wire speeds
VLANs and link aggregation support
Lifetime
warranty*
Product overview
Product overview
Product overview
Product overview
HP 1810 switch series devices are basic smart managed fixed-configuration Gigabit Ethernet Layer 2 switches designed for small
businesses looking for key features in an easy-to-administer solution. The series has three models: 8-, 24-, and 48-port
10/100/1000 switches. The 24-port model includes two dual-purpose combo SFP ports, and the 48-port model has four additional
true Gigabit Ethernet SFP ports (52 total active ports) for fiber connectivity. All models support flexible deployment options, including
mounting on walls or ceilings, under tables, or desktop operation, and come with an anti-theft protection Kensington Lock slot (lock
not included). The 8-port model can optionally be powered by an upstream Power over Ethernet (PoE) switch. HP 1810 switches
support QoS traffic prioritization and security features such as denial-of-service prevention. Customizable features include VLANs
and link aggregation trunking. HP 1810 switches come with lifetime warranty.
Features and Benefits
Features and Benefits
Features and Benefits
Features and Benefits
Quality of Service (QoS)
Quality of Service (QoS)
Quality of Service (QoS)
Quality of Service (QoS)
Traffic prioritization
Traffic prioritization
Traffic prioritization (IEEE 802.1p): allows real-time traffic classification with eight priority levels mapped to four queues
Traffic prioritization
Broadcast control
Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
Broadcast control
Broadcast control
Management
Management
Management
Management
Simple Web management
Simple Web management: intuitive Web GUI allows for easy management of device by even nontechnical users
Simple Web management
Simple Web management
Secure Web GUI
Secure Web GUI
Secure Web GUI: provides a secure, easy-to-use graphical interface for configuring the module via HTTPS
Secure Web GUI
SNMPv1, v2c: devices can be discovered and monitored from an SNMP management station
SNMPv1, v2c
SNMPv1, v2c
SNMPv1, v2c
Dual flash images
Dual flash images: provide independent primary and secondary operating system files for backup while upgrading
Dual flash images
Dual flash images
Port mirroring
Port mirroring
Port mirroring
Port mirroring: enables traffic on a port to be simultaneously sent to a network analyzer for monitoring
IEEE 802.1AB Link Layer Discovery Protocol (LLDP): automated device discovery protocol provides easy mapping by network
IEEE 802.1AB Link Layer Discovery Protocol
IEEE 802.1AB Link Layer Discovery Protocol
IEEE 802.1AB Link Layer Discovery Protocol
management applications
HP PCM
HP PCM
HP PCM
HP PCM: provides central management through HP PCM+ for discovery, logging, and status management
Connectivity
Connectivity
Connectivity
Connectivity
Auto-MDI/MDIX
Auto-MDI/MDIX
Auto-MDI/MDIX
Auto-MDI/MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
NEW Non-shared SFP ports (1810-48G switch): four true SFP ports for optional fiber connectivity such as Gigabit-SX, -LX, or
NEW Non-shared SFP ports
NEW Non-shared SFP ports
NEW Non-shared SFP ports
100-FX; also support SFP 1G RJ-45 copper connections
Dual-personality ports
Dual-personality ports
Dual-personality ports (1810-24G switch): two Gigabit Ethernet copper ports or SFP slots for optional fiber connectivity such
Dual-personality ports
DA - 13447
Worldwide — Version 9 — October 28, 2011
HP 1810 Switch Series
HP 1810 Switch Series
HP 1810 Switch Series
HP 1810 Switch Series
J9660A
J9450A
J9449A
Page 1

Advertising

   Summary of Contents for HP V1810-48G

  • Page 1

    Kensington Lock slot (lock not included). The 8-port model can optionally be powered by an upstream Power over Ethernet (PoE) switch. HP 1810 switches support QoS traffic prioritization and security features such as denial-of-service prevention.

  • Page 2

    Locator LED Locator LED (switch): allows users to set the locator LED on a specific switch to either turn on, blink, or turn off; simplifies troubleshooting by making it easy to locate a particular switch within a rack of similar switches...

  • Page 3

    The disk drive included with HP Alliance One Advanced Services and Services zl Modules, HP Threat Management Services zl Module, HP AllianceOne Ext zl Mod w/Rvrbd Stlhd, HP E-MSM765zl Mobility Controller and HP Surv Brch Com zl Mod pwrby Msft Lync has a five-year hardware warranty.

  • Page 4

    FCC Rules Part 15, Subpart B Class A; EN 55022; VCCI; ICES-003 (Canada) DA - 13447 Worldwide — Version 9 — October 28, 2011 HP 1810 Switch Series HP 1810 Switch Series HP 1810 Switch Series HP 1810 Switch Series 9.75(d) x 17.4(w) x 1.75(h) in.

  • Page 5: Technical Specifications

    Flicker Flicker HP PCM; Web browser Use only supported genuine HP mini-GBICs with your switch. 3-year, 4-hour onsite, 13x5 coverage for hardware (HS854E) 3-year, 4-hour onsite, 24x7 coverage for hardware (HS856E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support...

  • Page 6

    Refer to the HP website at: service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. 22 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX;...

  • Page 7

    Flicker Flicker HP PCM; Web browser Use only supported genuine HP mini-GBICs with your switch. 3-year, 4-hour onsite, 13x5 coverage for hardware (U4683E) 3-year, 4-hour onsite, 24x7 coverage for hardware (U4835E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support...

  • Page 8

    Refer to the HP website at: service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. 8 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX;...

  • Page 9

    Flicker Flicker Flicker HP PCM; Web browser Use only supported genuine HP mini-GBICs with your switch. Power: external AC power adapter and IEEE 802.3af-compatible PoE-PD, class 3 on Port 1 3-year, 4-hour onsite, 13x5 coverage for hardware (UE256E) 3-year, 4-hour onsite, 24x7 coverage for hardware (UE257E)

  • Page 10

    5 Yr 6 hr Call-to-Repair Onsite (UW385E) Refer to the HP website at: www.hp.com/networking/services service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Denial of service Denial of service Denial of service...

  • Page 11

    HP 30 m Multimode OM3 LC/LC Optical Cable HP 50 m Multimode OM3 LC/LC Optical Cable NEW HP 0.5 m PremierFlex OM3+ LC/LC Optical Cable NEW HP 1 m PremierFlex OM3+ LC/LC Optical Cable NEW HP 2 m PremierFlex OM3+ LC/LC Optical Cable...

  • Page 12

    Refer to the HP website at www.hp.com/networking/services service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Worldwide — Version 9 — October 28, 2011 HP 1810 Switch Series...

  • Page 13

    Refer to the HP website at www.hp.com/networking/services service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Worldwide — Version 9 — October 28, 2011 HP 1810 Switch Series...

  • Page 14

    Refer to the HP website at www.hp.com/networking/services service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Worldwide — Version 9 — October 28, 2011 HP 1810 Switch Series...

  • Page 15

    Refer to the HP website at www.hp.com/networking/services service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Worldwide — Version 9 — October 28, 2011 HP 1810 Switch Series...

  • Page 16

    Refer to the HP website at www.hp.com/networking/services service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Worldwide — Version 9 — October 28, 2011 HP 1810 Switch Series...

  • Page 17

    Refer to the HP website at www.hp.com/networking/services service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Worldwide — Version 9 — October 28, 2011 HP 1810 Switch Series...

  • Page 18

    Refer to the HP website at www.hp.com/networking/services service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Worldwide — Version 9 — October 28, 2011 HP 1810 Switch Series...

  • Page 19

    For details about services and response times in your area, please contact your local HP sales office. Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

  • Page 20

    For details about services and response times in your area, please contact your local HP sales office. Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

  • Page 21

    For details about services and response times in your area, please contact your local HP sales office. Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

  • Page 22

    For details about services and response times in your area, please contact your local HP sales office. The rack mounting kit supports the 1U, full width switches in the following switch series and the power supply: V1810 Series, E2510 Series, E2520...

  • Page 23

    For details about services and response times in your area, please contact your local HP sales office. 1 LC 1000BASE-SX port; Duplex: full only Dimensions: 2.24(d) x 0.54(w) x 0.48(h) in. (5.69 x 1.37 x 1.22 cm) Weight: 0.04 lb.

  • Page 24

    For details about services and response times in your area, please contact your local HP sales office. 1 LC 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX); Duplex: full only Dimensions: 2.24(d) x 0.54(w) x 0.486(h) in. (5.69 x 1.37 x 1.23 cm) Weight:0.04 lb.

  • Page 25

    © Copyright 2009-2011 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
