imagistics DF200 Operating Manual page 43

Finisher 9747/Finisher 9748
18 Grip
19 Front Door
20 Bottom Offset Tray
Top Offset Tray
21
Option Offset Tray
22
23 Option Tray Cover
24 Upper Cover
Mailbin Finisher 9749
25 Mail Bins
Bottom Offset Tray
26
Top Offset Tray
27
28 Top Offset Tray Cover
Stapler Cover
29
Grip
30

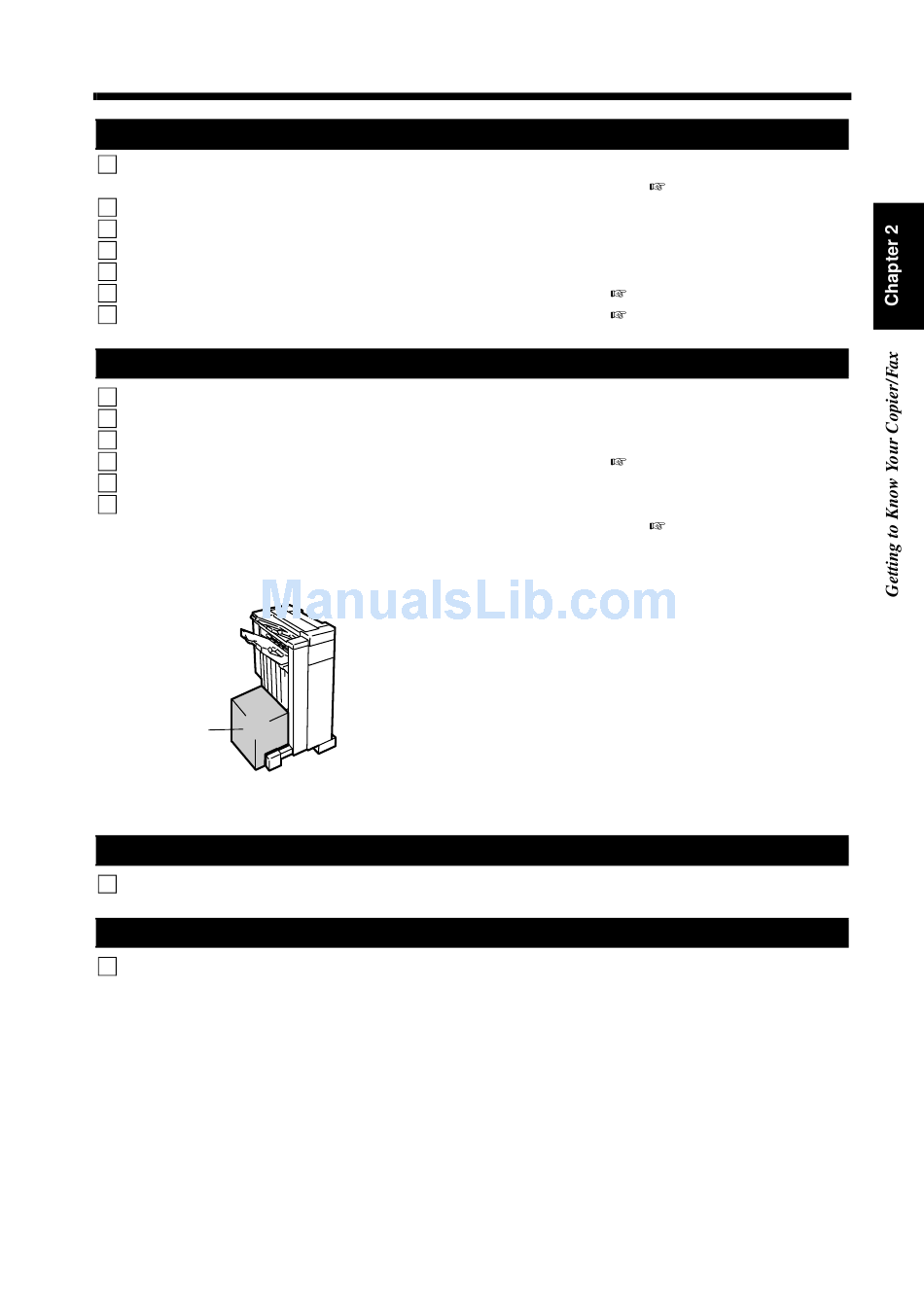

<Precautions When Using a Finisher>
Do not place an
object here.
Shift Tray 9750
Shift Tray
31
Job Tray 9751
32 Job Tray
: Hold to slide the Finisher away from the machine to clear a misfed
sheet of paper or perform other service job. p.10-24
: Open to clear a misfed sheet of paper.
: Receives sorted paper by shifting.
: Receives plain paper or Card.
: Receives the type of paper assigned by the PC.
: Open to clear a misfed sheet of paper. p.10-24
: Open to clear a misfed sheet of paper. p.10-24
: Receive copied paper.
: Receives sorted paper by shifting.
: Receives plain paper or Card.
: Open to clear a misfed sheet of paper. p.10-30
: Open to replace the staple cartridge.
: Hold to slide the Finisher away from the machine to clear a misfed
sheet of paper or perform other service job. p.10-30
NEVER place an object under the Bottom Offset
Tray. Anything that is placed under the Bottom
Offset Tray can interfere with the tray when it is
lowered after a copy has been fed onto it, which
could result in a malfunction.
4002O276AA
: Receives copy sets sorted by bin shifting.
: Can receive a maximum of 100 finished copies.
2-15
2. System Overview
