5-18
2. Sending Documents

Setting the Communication Mode

The communication mode should be set as detailed below according to the standards of the fax machine
on the receiving end and lines over which data is transmitted.
• Transmitting documents to G3 fax machines over the ordinary telephone line: [G3]
<When G3 MULTIPORT SERIES 2 is mounted>
• Transmitting documents to G3 fax machines over port 1 of ordinary telephone line: [G3-1]
• Transmitting documents to G3 fax machines over port 2 of ordinary telephone line: [G3-2]
<When using F CODE communications>
"F CODE" p.6-30

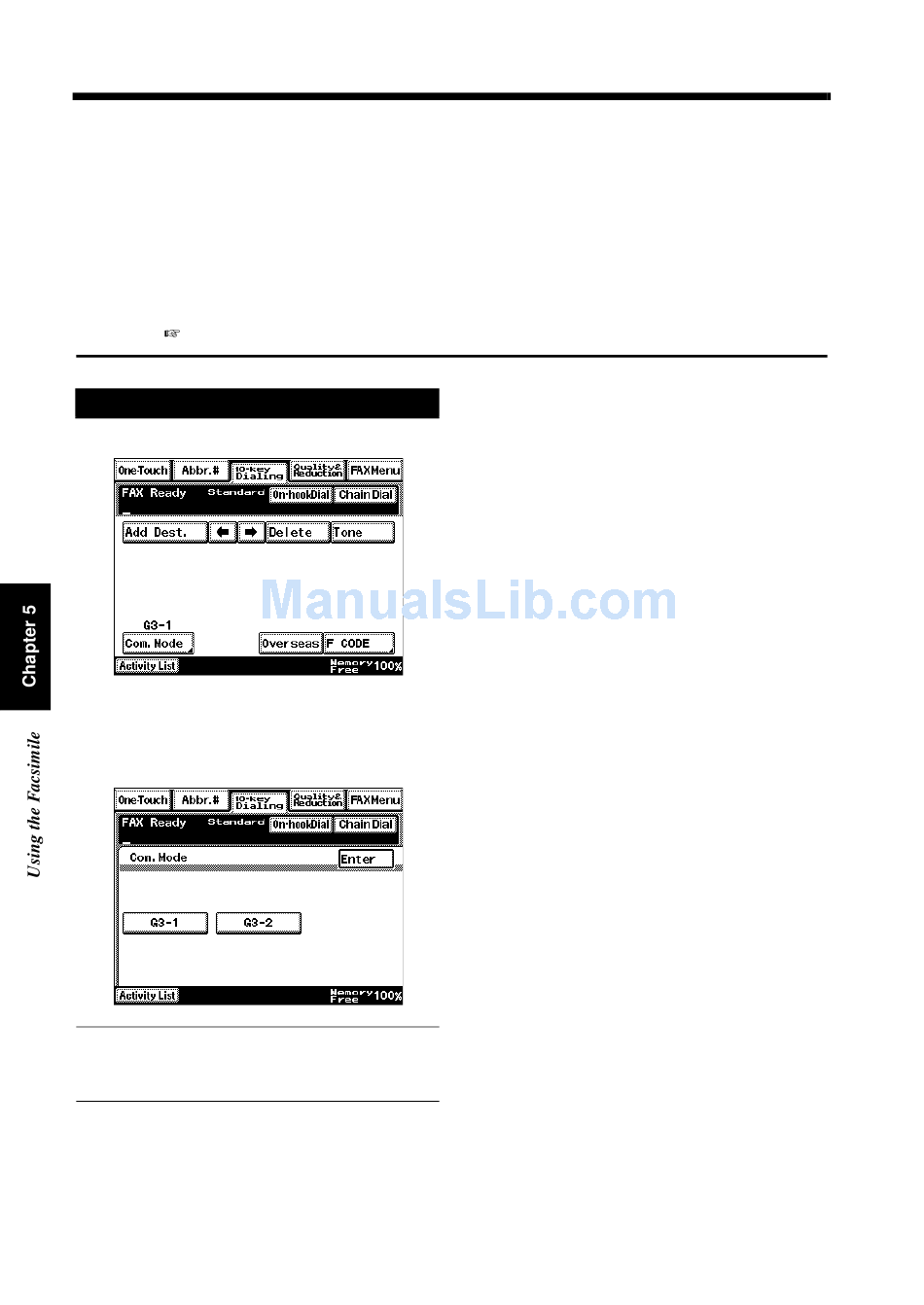

Selecting the Communication Mode
1
Touch [10-Key Dialing].
2
Touch [Com. Mode] and select the
appropriate mode to suit the standard of the
fax machine on the receiving end.
NOTE
The setting can be made only when the optional
G3 MULTIPORT SERIES 2 is mounted.
3
Touch [Enter].
4017P253EA
4016P273CA
