Replacing The Fan Drawer - Polycom 2000 Hardware Manual

RealPresence®Collaboration Server (RMX) 2000 Hardware Guide
To replace the Power Supply Module:
1 Ensure that the power switch on the RMX 2000 is turned OFF (O) and that the power cords are
disconnected from the MCU.
2 Unscrew the captive screws on the front panel of the RMX 2000 that secure the Power Supply unit.
3 Use the finger grip to pull the Power Supply unit out of its slot in the Backplane.
4 Carefully slide the Power Supply unit out through the front panel.
5 Slide in the replacement Power Supply unit.
6 Push the Power Supply unit firmly into the Backplane, making sure it is properly seated in its slot.
7 Tighten the captive screws on the front panel of the RMX 2000 that secure the Power Supply unit.
8 Turn ON the RMX 2000.
.
For more information on the Card Configuration Modes after reset, see

Replacing the Fan Drawer

Three fans are mounted in the Fan drawer, where the airflow is from right to left. Should one of these fans
fail as indicated by a Fan LED, you are required to replace the Fan drawer.

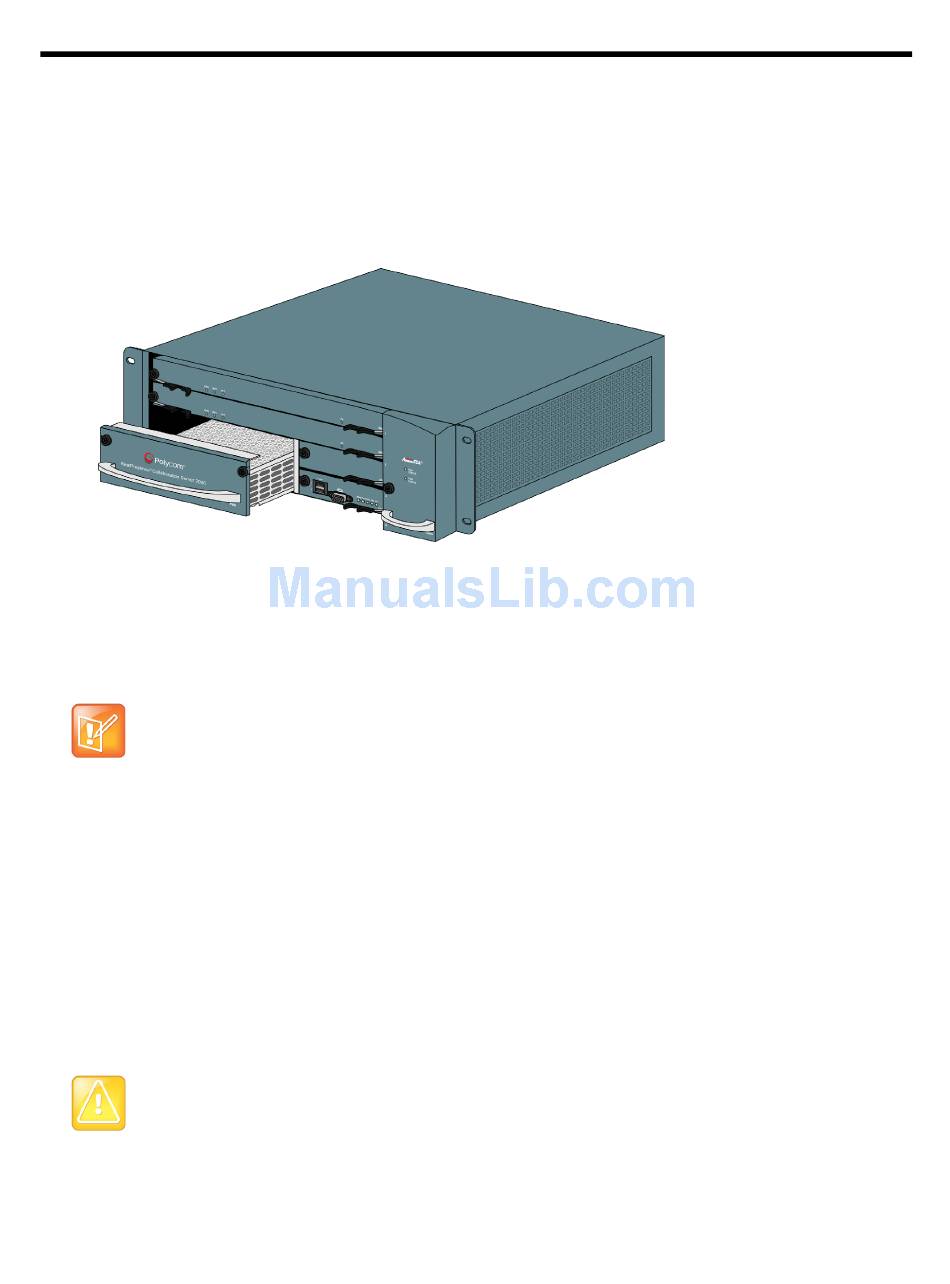

To replace the Fan Drawer:
1 Unscrew the captive screws on the front panel of the RMX 2000 that secure the Fan drawer.
2 Use the metal ejector levers to pull the Fan drawer out of its slot in the Backplane.
3 Carefully slide the Fan drawer out through the front panel.
.
The Fan drawer can be replaced when the RMX unit is ON, however a replacement drawer must be
inserted immediately. The temperature increase is detected by the system; when critical, a system
shutdown is initiated.
