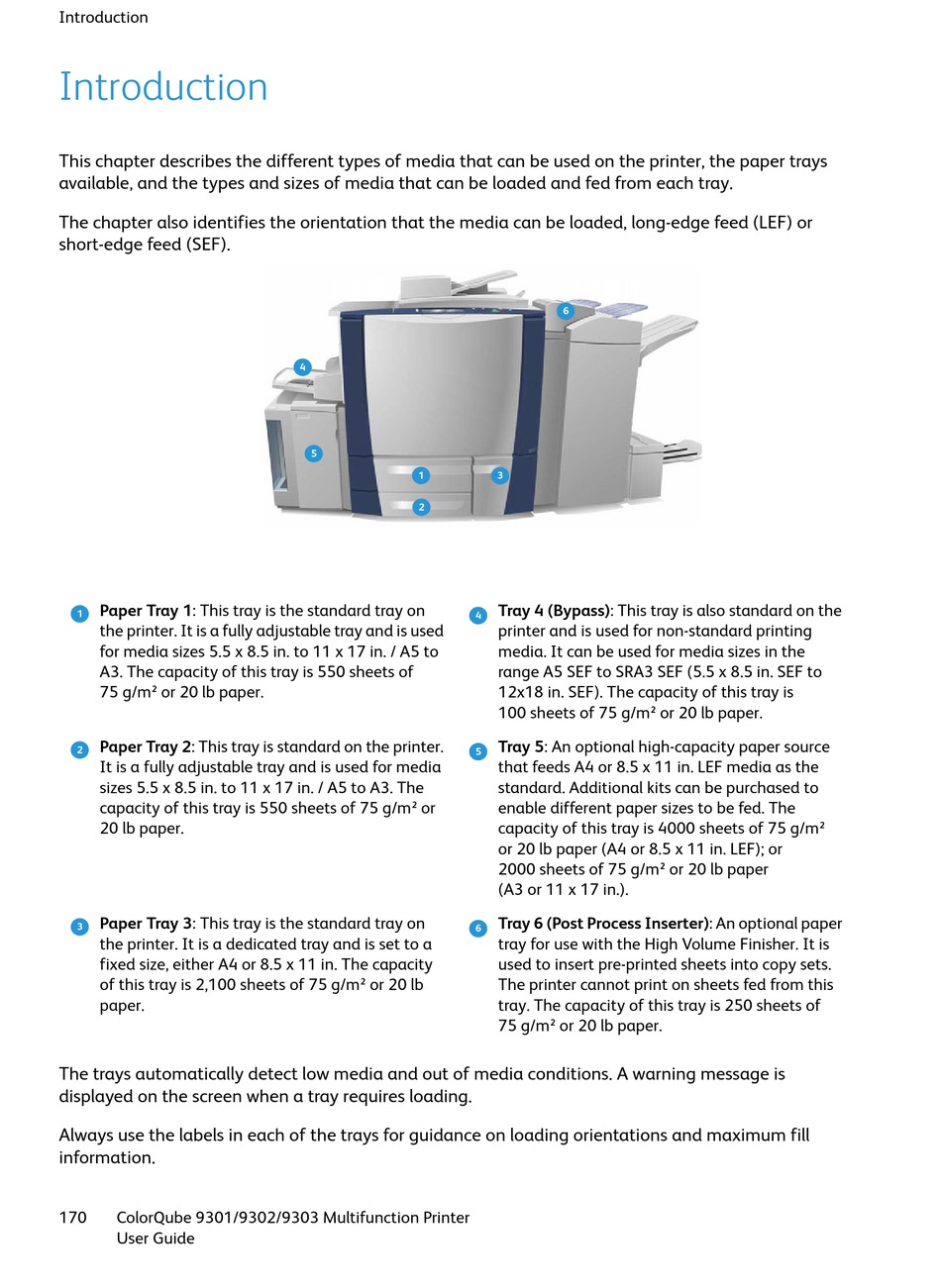

Introduction

Introduction
This chapter describes the different types of media that can be used on the printer, the paper trays
available, and the types and sizes of media that can be loaded and fed from each tray.
The chapter also identifies the orientation that the media can be loaded, long-edge feed (LEF) or
short-edge feed (SEF).
Paper Tray 1: This tray is the standard tray on
1
the printer. It is a fully adjustable tray and is used
for media sizes 5.5 x 8.5 in. to 11 x 17 in. / A5 to
A3. The capacity of this tray is 550 sheets of
75 g/m² or 20 lb paper.
Paper Tray 2: This tray is standard on the printer.
2
It is a fully adjustable tray and is used for media
sizes 5.5 x 8.5 in. to 11 x 17 in. / A5 to A3. The
capacity of this tray is 550 sheets of 75 g/m² or
20 lb paper.
Paper Tray 3: This tray is the standard tray on
3
the printer. It is a dedicated tray and is set to a
fixed size, either A4 or 8.5 x 11 in. The capacity
of this tray is 2,100 sheets of 75 g/m² or 20 lb
paper.
The trays automatically detect low media and out of media conditions. A warning message is
displayed on the screen when a tray requires loading.
Always use the labels in each of the trays for guidance on loading orientations and maximum fill
information.
170 ColorQube 9301/9302/9303 Multifunction Printer
User Guide
4
5
1
2
6
3
Tray 4 (Bypass): This tray is also standard on the
4
printer and is used for non-standard printing
media. It can be used for media sizes in the
range A5 SEF to SRA3 SEF (5.5 x 8.5 in. SEF to
12x18 in. SEF). The capacity of this tray is
100 sheets of 75 g/m² or 20 lb paper.
Tray 5: An optional high-capacity paper source
5
that feeds A4 or 8.5 x 11 in. LEF media as the
standard. Additional kits can be purchased to
enable different paper sizes to be fed. The
capacity of this tray is 4000 sheets of 75 g/m²
or 20 lb paper (A4 or 8.5 x 11 in. LEF); or
2000 sheets of 75 g/m² or 20 lb paper
(A3 or 11 x 17 in.).
Tray 6 (Post Process Inserter): An optional paper
6
tray for use with the High Volume Finisher. It is
used to insert pre-printed sheets into copy sets.
The printer cannot print on sheets fed from this
tray. The capacity of this tray is 250 sheets of
75 g/m² or 20 lb paper.
