Copy Options

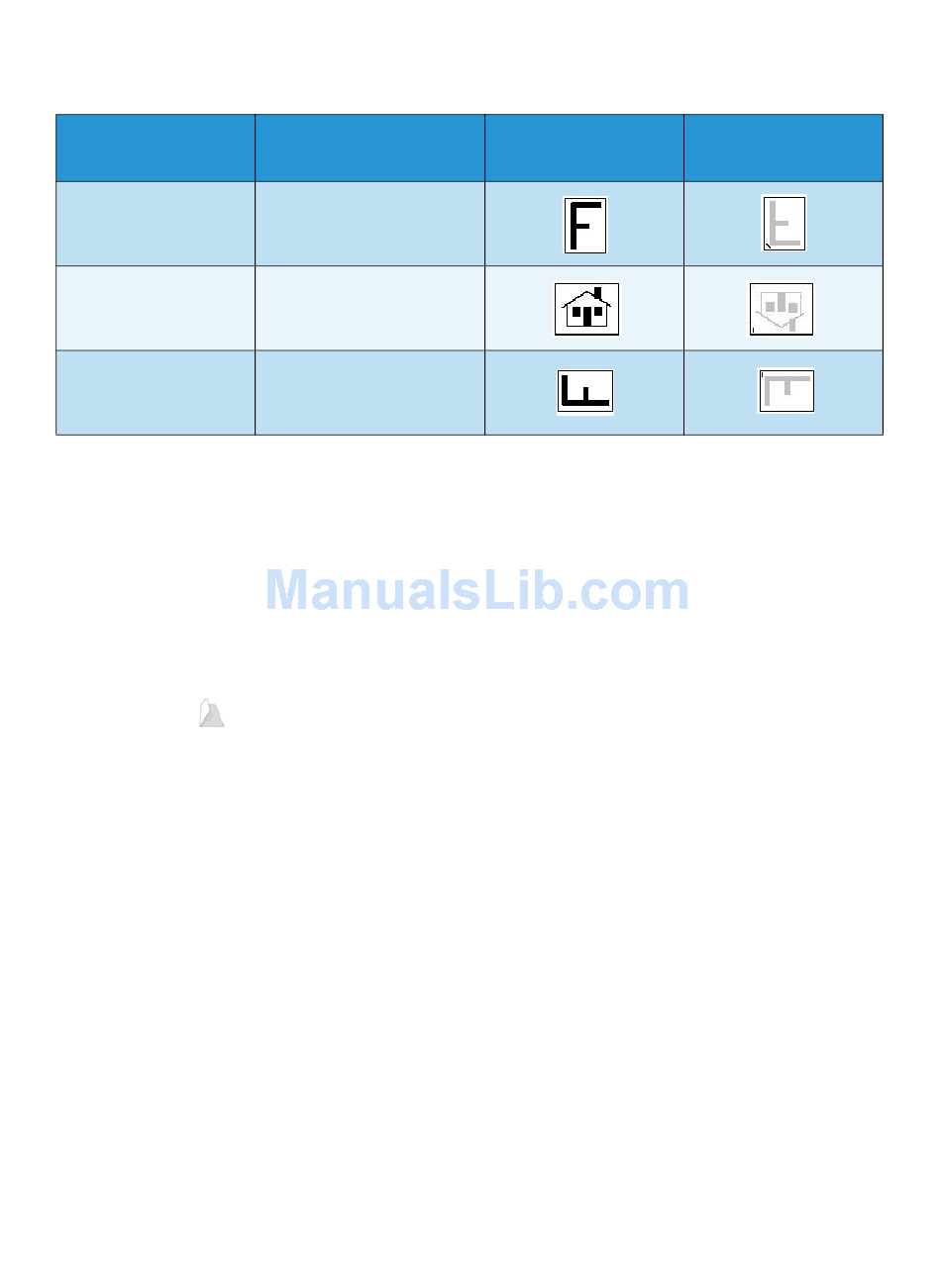

To achieve some of the staple options, load the copy paper as shown:
Paper Size and
Orientation
A4, 8.5 x 11 in. LEF
A4, 8.5 x 11 in. SEF
A4, 8.5 x 11 in. SEF
Note: For some selections, the printer rotates the image. If you are unable to staple, ensure that
Image Rotation is On in Tools. Refer to
information.
Folding
If the optional Tri-fold Module is installed on the printer, A4 or 8.5 x 11 in. media in a weight range of
60 to 105 g/m² (16 lb to 28 lb) can be folded in a Single Fold, C-Fold, or Z-fold. Load originals SEF, and
select the orientation of the originals.
• Off: Use this option when no folding is required.
• Single Fold folds the page in half. Select an option:
• Individually is used to fold each page individually.
• Together as a Set is used to fold all the pages together to create a single booklet.
• Booklet Staple is selected to fold and staple the output. This option is only available with the
Together as a Set option.
• Advanced Settings are used to select additional layout options:
• Originals options allow you to select if the originals are standard or already formatted
as a booklet.
• Side 1 Image options are used to select if the image on the first side is printed inside or
outside the fold.
• Collation is used to select collated or uncollated output.
• Use the Original Orientation option to select the orientation of the originals being scanned. Select
Upright Images or Sideways Images. The images are rotated, as required.
12 ColorQube 9301/9302/9303 Multifunction Printer
User Guide
Output Required
LEF A4, 8.5 x 11 in.
Single Staple
Top Left
SEF A4, 8.5 x 11 in.
Single Staple
Top Left
SEF A4, 8.5 x 11 in.
Single Staple
Bottom Left
Administration and Accounting
Original Orientation
on page 195 for more
Output Tray
Orientation
