CONTROL COMMAND
■ Remote jack (CI-V) information
D D CI-V connection example
IC-7700
mini-plug cable
D D Data format
Controller to IC-7700
q
FE FE
FE FE
q
IC-7700 to controller
9–15 V DC
personal
ct- 17
computer
w
e
r
t
74
E0
Cn
Sc
E0
74
Cn
Sc
w
e
r
t

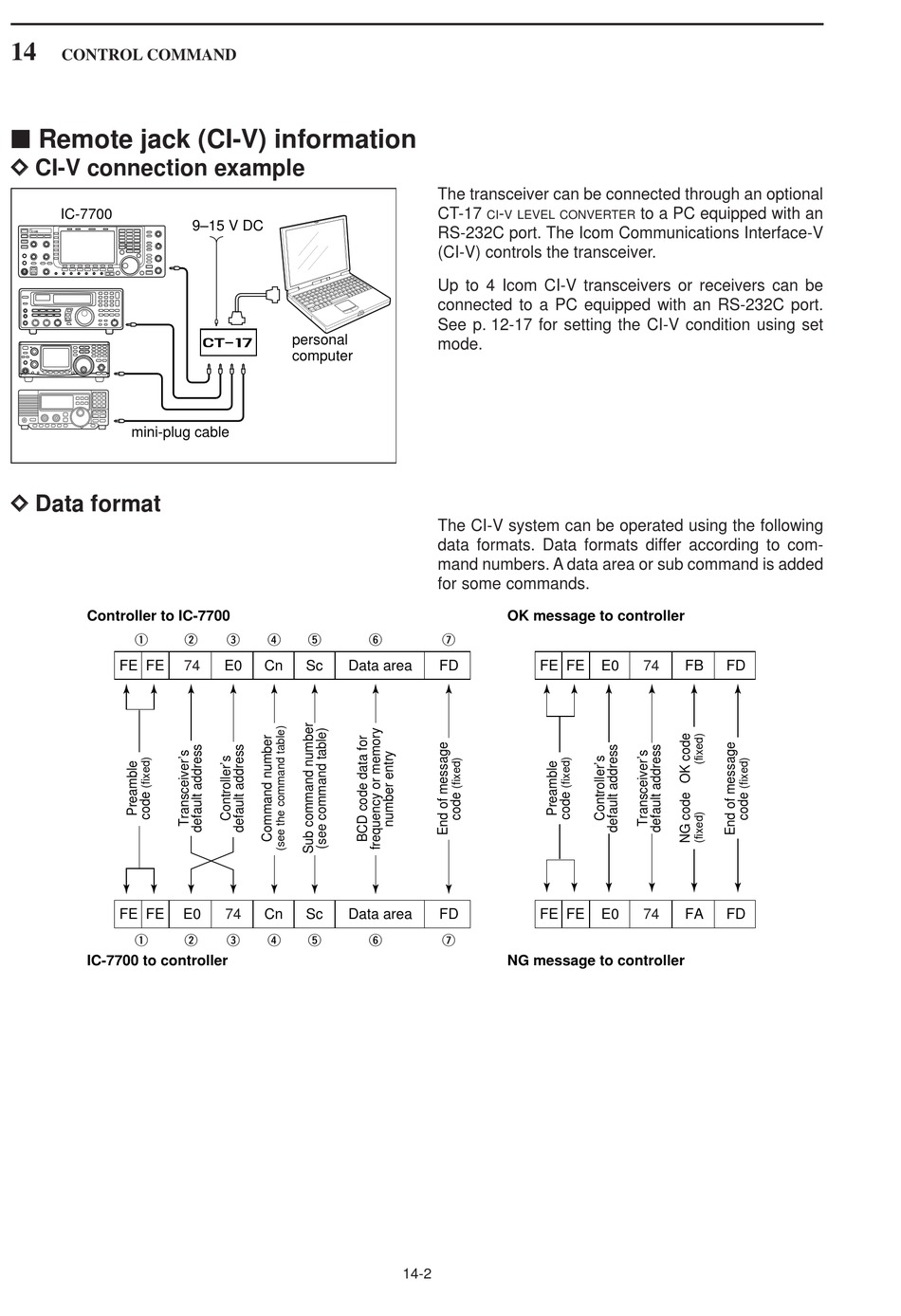

The transceiver can be connected through an optional
CT-17
-
CI
V LEVEL CONVERTER
RS-232C port. The Icom Communications Interface-V
(CI-V) controls the transceiver.
Up to 4 Icom CI-V transceivers or receivers can be
connected to a PC equipped with an RS-232C port.
See p. 12-17 for setting the CI-V condition using set
mode.
The CI-V system can be operated using the following
data formats. Data formats differ according to com-
mand numbers. A data area or sub command is added
for some commands.
OK message to controller
y
u
Data area
FD
Data area
FD
y
u
NG message to controller
14-2
to a PC equipped with an
FE FE
E0
74
FB
FE FE
E0
74
FA
FD
FD
