13

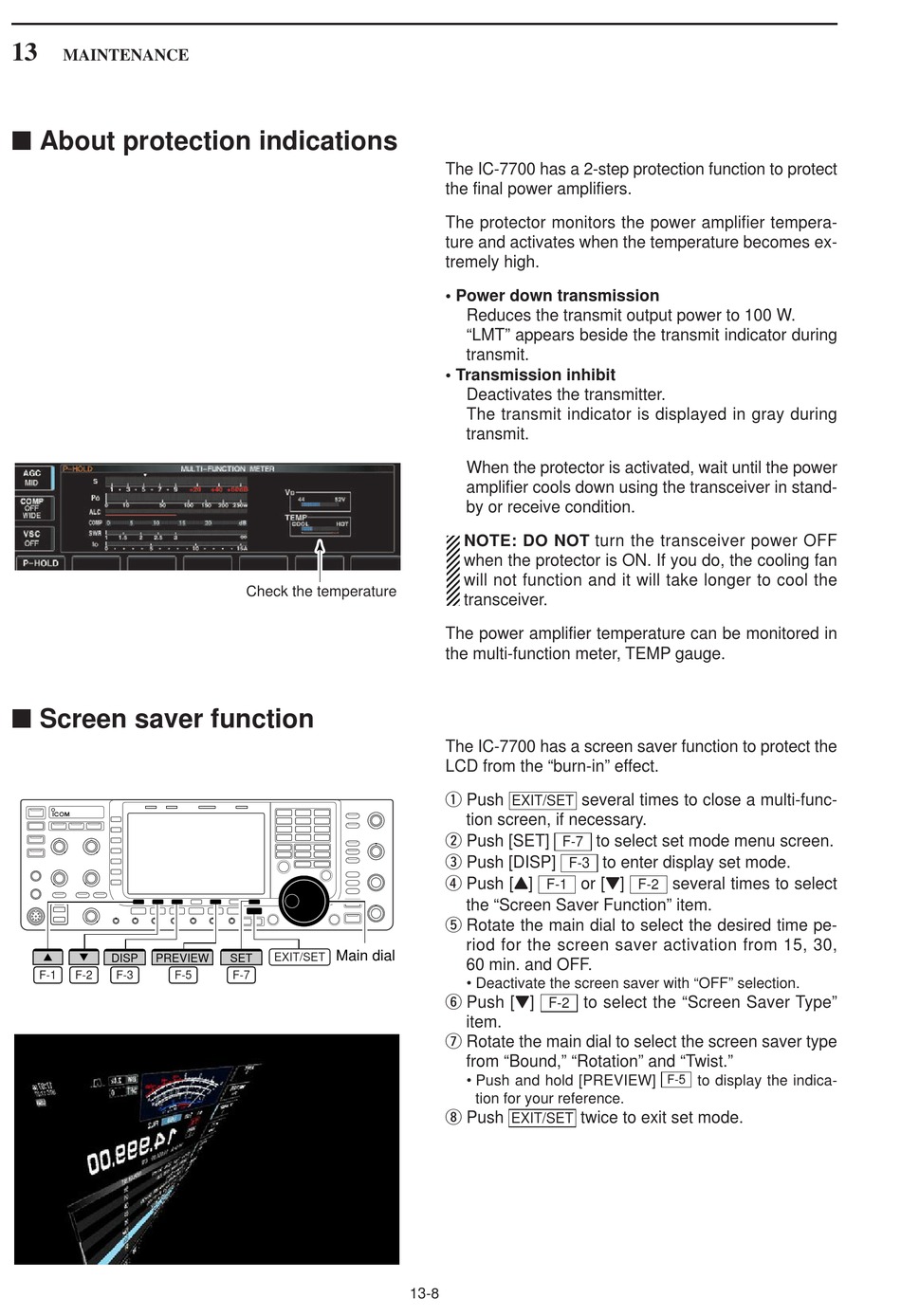

MAINTENANCE

■ About protection indications

■ Screen saver function

∫ √ DISP PREVIEW
F-1 F-2 F-3 F-5
Check the temperature
Main dial
EXIT/SET
SET
F-7
The IC-7700 has a 2-step protection function to protect
the final power amplifiers.
The protector monitors the power amplifier tempera-
ture and activates when the temperature becomes ex-
tremely high.
• Power down transmission
Reduces the transmit output power to 100 W.
"LMT" appears beside the transmit indicator during
transmit.
• Transmission inhibit
Deactivates the transmitter.
The transmit indicator is displayed in gray during
transmit.
When the protector is activated, wait until the power
amplifier cools down using the transceiver in stand-
by or receive condition.
NOTE: DO NOT turn the transceiver power OFF
when the protector is ON. If you do, the cooling fan
will not function and it will take longer to cool the
transceiver.
The power amplifier temperature can be monitored in
the multi-function meter, TEMP gauge.
The IC-7700 has a screen saver function to protect the
LCD from the "burn-in" effect.
q Push
EXIT/SET
tion screen, if necessary.
w Push [SET]
F-7
e Push [DISP]
F-3
r Push [Y]
F-1
the "Screen Saver Function" item.
t Rotate the main dial to select the desired time pe-
riod for the screen saver activation from 15, 30,
60 min. and OFF.
• Deactivate the screen saver with "OFF" selection.
y Push [Z]
F-2
item.
u Rotate the main dial to select the screen saver type
from "Bound," "Rotation" and "Twist."
• Push and hold [PREVIEW]
tion for your reference.
i Push
EXIT/SET
13-8
several times to close a multi-func-
to select set mode menu screen.
to enter display set mode.
or [Z] several times to select
F-2
to select the "Screen Saver Type"
to display the indica-
F-5
twice to exit set mode.
