BASIC OPERATIONS

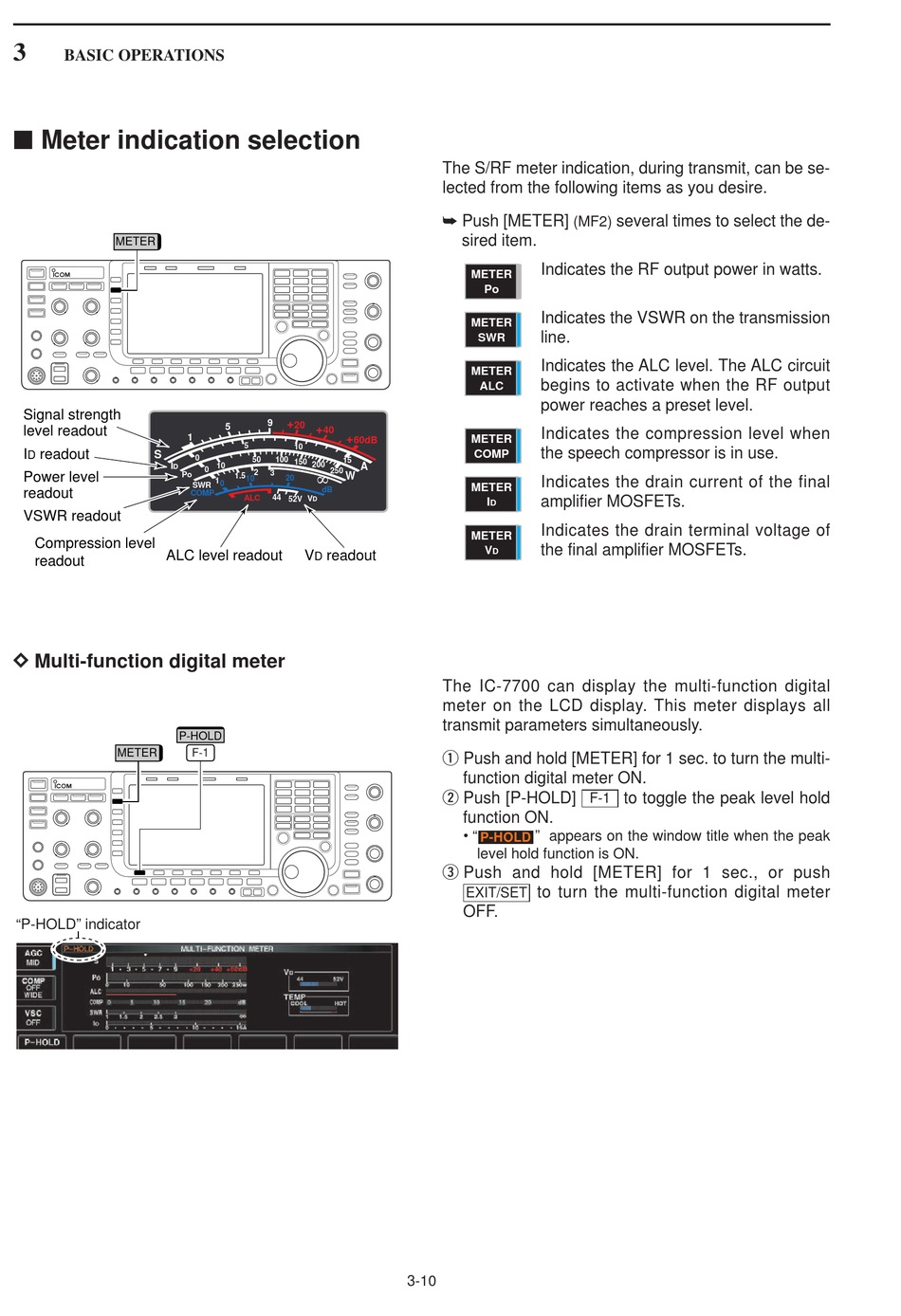

■ Meter indication selection

METER
Signal strength
level readout
I readout
D S
I
D
Power level
readout
VSWR readout
Compression level
ALC level readout
readout
D D Multi-function digital meter
METER
"P-HOLD" indicator
9 +
20
5
+
40
1
5
10
0
50 100 150
15
200
10
0
250
2
3
Po
1.5 ∞
20
10
1
0
SWR
dB
COMP
ALC 44 52V V
D
V readout
D
P-HOLD
F-1
The S/RF meter indication, during transmit, can be se-
lected from the following items as you desire.
➥ Push [METER]
sired item.
METER
Po
METER
SWR
METER
ALC
+ METER
60dB
COMP
A
W
METER
I
D
METER
V
D
The IC-7700 can display the multi-function digital
meter on the LCD display. This meter displays all
transmit parameters simultaneously.
q Push and hold [METER] for 1 sec. to turn the multi-
function digital meter ON.
w Push [P-HOLD]
function ON.
• "
P-HOLD
level hold function is ON.
e Push and hold [METER] for 1 sec., or push
EXIT/SET
OFF.
3-10
several times to select the de-
(MF2)
Indicates the RF output power in watts.
Indicates the VSWR on the transmission
line.
Indicates the ALC level. The ALC circuit
begins to activate when the RF output
power reaches a preset level.
Indicates the compression level when
the speech compressor is in use.
Indicates the drain current of the final
amplifier MOSFETs.
Indicates the drain terminal voltage of
the final amplifier MOSFETs.
to toggle the peak level hold
F-1
" appears on the window title when the peak
to turn the multi-function digital meter
