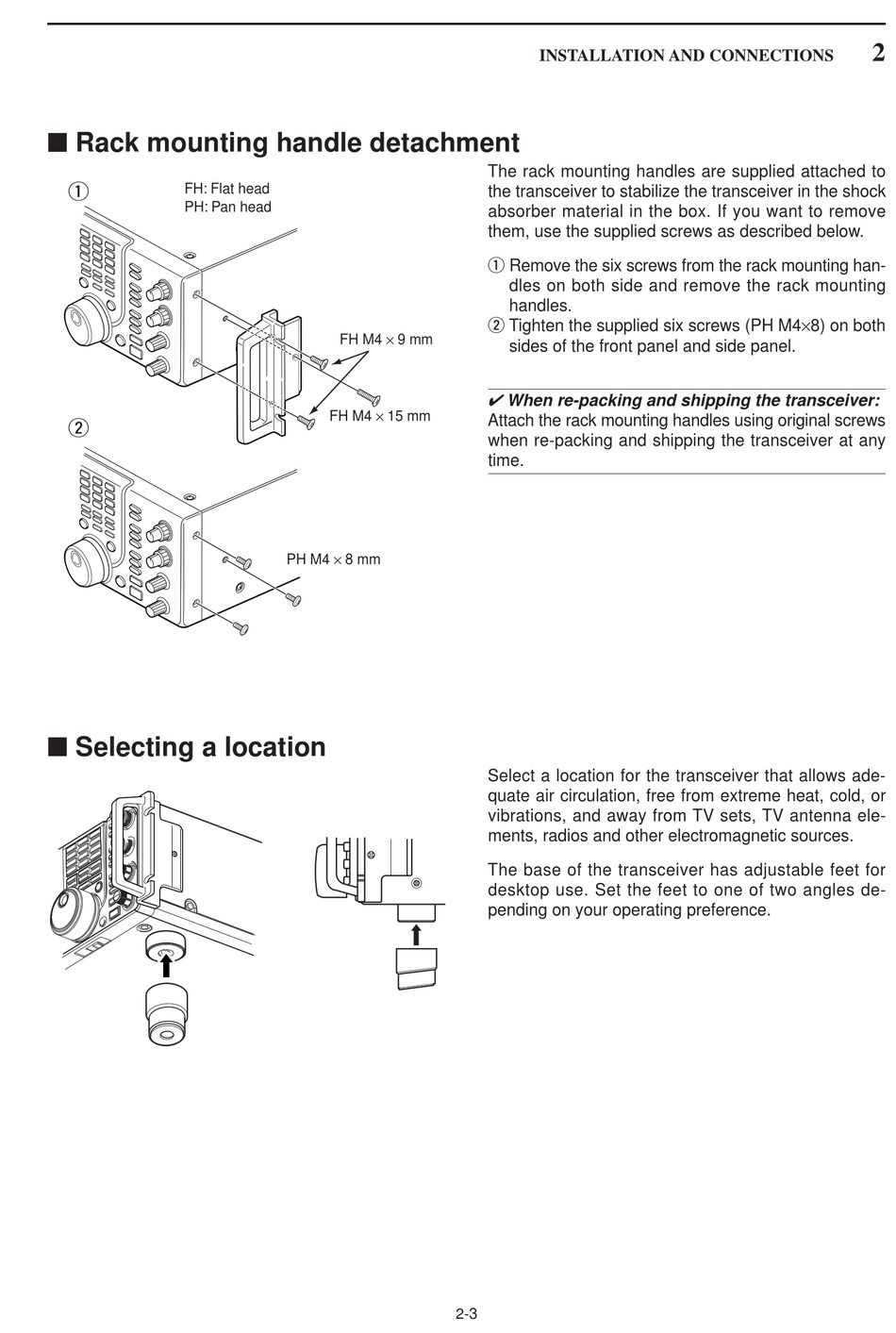

■ Rack mounting handle detachment

q
FH: Flat head
PH: Pan head
w

■ Selecting a location

FH M4 × 9 mm
FH M4 × 15 mm
PH M4 × 8 mm
INSTALLATION AND CONNECTIONS
The rack mounting handles are supplied attached to
the transceiver to stabilize the transceiver in the shock
absorber material in the box. If you want to remove
them, use the supplied screws as described below.
q Remove the six screws from the rack mounting han-
dles on both side and remove the rack mounting
handles.
w Tighten the supplied six screws (PH M4×8) on both
sides of the front panel and side panel.
✔ When re-packing and shipping the transceiver:
Attach the rack mounting handles using original screws
when re-packing and shipping the transceiver at any
time.
Select a location for the transceiver that allows ade-
quate air circulation, free from extreme heat, cold, or
vibrations, and away from TV sets, TV antenna ele-
ments, radios and other electromagnetic sources.
The base of the transceiver has adjustable feet for
desktop use. Set the feet to one of two angles de-
pending on your operating preference.
