D Psk Memory Transmission; D Automatic Transmission/Reception Setting - Icom IC-7700 Instruction Manual

4
RECEIVE AND TRANSMIT

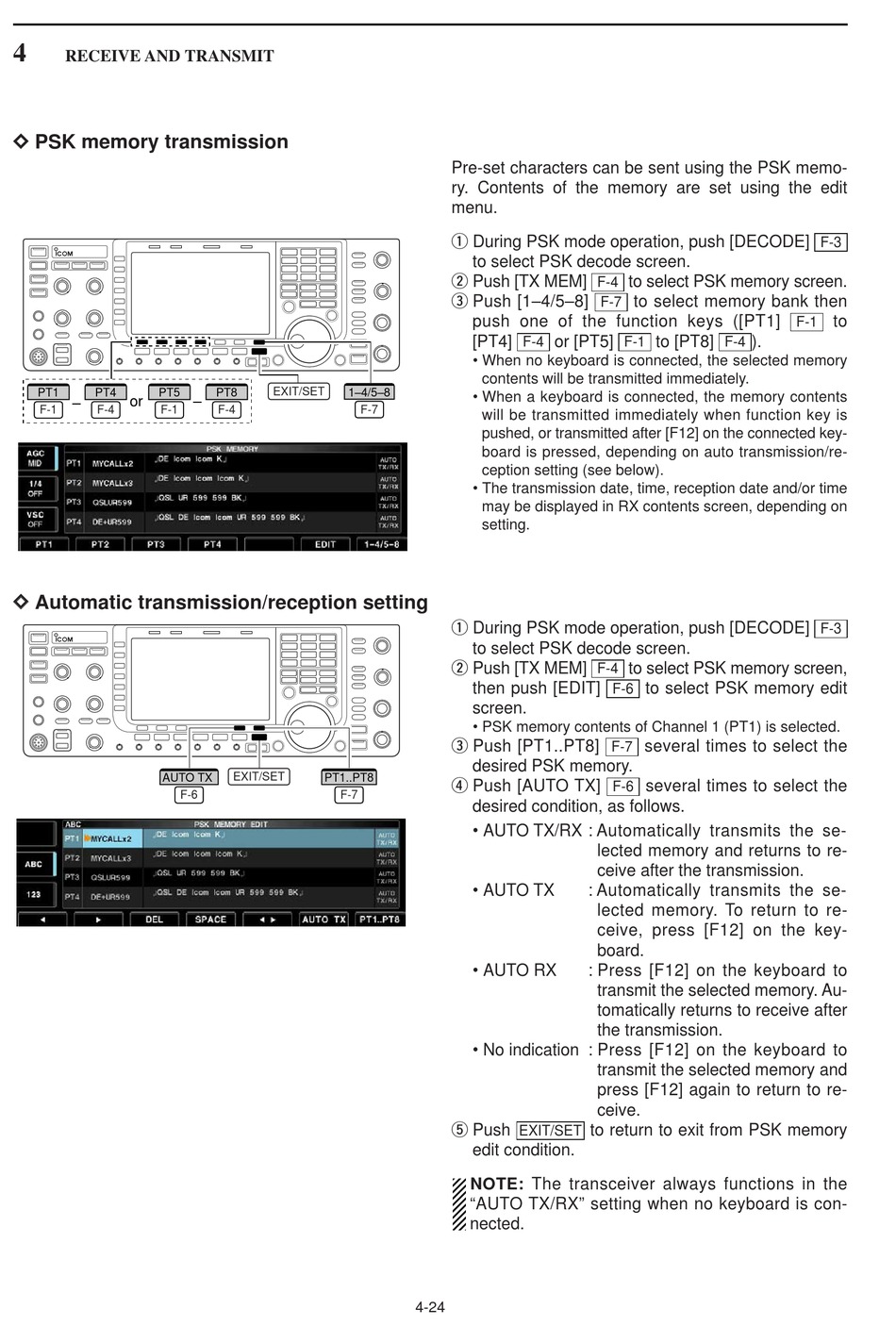

D D PSK memory transmission
PT1 PT4
PT5
or
–
F-1 F-4 F-1
D D Automatic transmission/reception setting
AUTO TX
F-6
EXIT/SET
1–4/5–8
PT8
–
F-7
F-4
EXIT/SET
PT1..PT8
F-7
Pre-set characters can be sent using the PSK memo-
ry. Contents of the memory are set using the edit
menu.
q During PSK mode operation, push [DECODE]
to select PSK decode screen.
w Push [TX MEM]
e Push [1–4/5–8]
push one of the function keys ([PT1]
[PT4] or [PT5]
F-4
• When no keyboard is connected, the selected memory
contents will be transmitted immediately.
• When a keyboard is connected, the memory contents
will be transmitted immediately when function key is
pushed, or transmitted after [F12] on the connected key-
board is pressed, depending on auto transmission/re-
ception setting (see below).
• The transmission date, time, reception date and/or time
may be displayed in RX contents screen, depending on
setting.
q During PSK mode operation, push [DECODE]
to select PSK decode screen.
w Push [TX MEM]
then push [EDIT]
screen.
• PSK memory contents of Channel 1 (PT1) is selected.
e Push [PT1..PT8]
desired PSK memory.
r Push [AUTO TX]
desired condition, as follows.
• AUTO TX/RX : Automatically transmits the se-
• AUTO TX
• AUTO RX
• No indication : Press [F12] on the keyboard to
t Push
EXIT/SET
edit condition.
NOTE: The transceiver always functions in the
"AUTO TX/RX" setting when no keyboard is con-
nected.
4-24
to select PSK memory screen.
F-4
to select memory bank then
F-7
to [PT8] ).
F-1 F-4
to select PSK memory screen,
F-4
to select PSK memory edit
F-6
several times to select the
F-7
several times to select the
F-6
lected memory and returns to re-
ceive after the transmission.
: Automatically transmits the se-
lected memory. To return to re-
ceive, press [F12] on the key-
board.
: Press [F12] on the keyboard to
transmit the selected memory. Au-
tomatically returns to receive after
the transmission.
transmit the selected memory and
press [F12] again to return to re-
ceive.
to return to exit from PSK memory
F-3
to
F-1
F-3
