Removing The System Memory (Ram) -1 - EUROCOM P570WM Service Manual

Disassembly

Removing the System Memory (RAM) -1

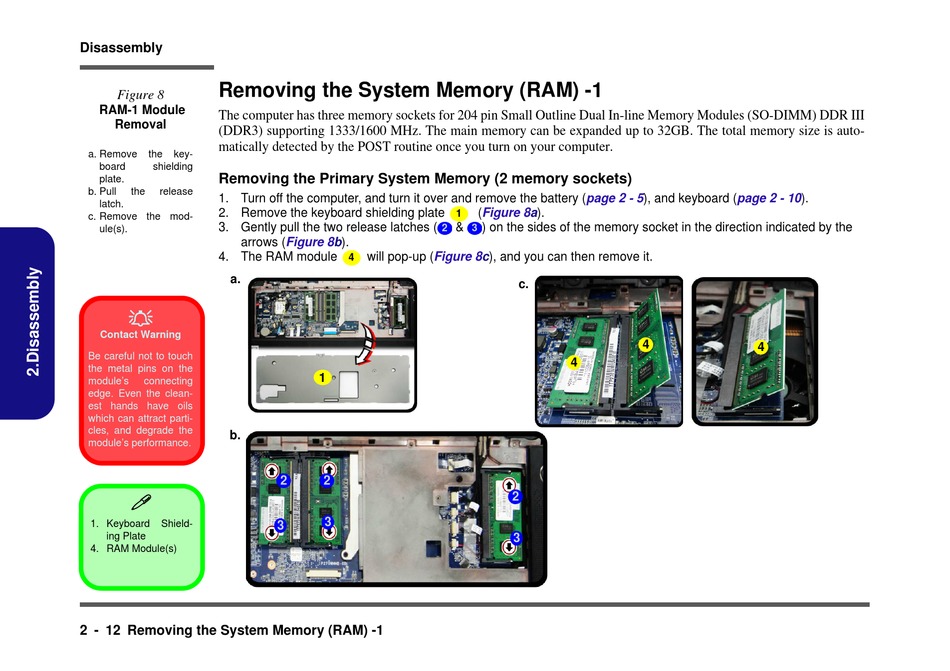

Figure 8
RAM-1 Module
The computer has three memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) DDR III
Removal
(DDR3) supporting 1333/1600 MHz. The main memory can be expanded up to 32GB. The total memory size is auto-
matically detected by the POST routine once you turn on your computer.
a. Remove the key-
board shielding
Removing the Primary System Memory (2 memory sockets)
plate.
b. Pull the release
1. Turn off the computer, and turn it over and remove the battery
latch.
2. Remove the keyboard shielding plate
c. Remove the mod-
3. Gently pull the two release latches (
ule(s).
arrows
4. The RAM module
a.

Contact Warning
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the clean-
est hands have oils
which can attract parti-
cles, and degrade the
b.
module's performance.

1. Keyboard Shield-
ing Plate
4. RAM Module(s)
2 - 12 Removing the System Memory (RAM) -1
1
&
2
(Figure 8b).
will pop-up (Figure
4
1
2 2
3
3
(page 2 - 5), and keyboard
(Figure 8a).
) on the sides of the memory socket in the direction indicated by the
3
8c), and you can then remove it.
c.
4
4
2
3
(page 2 - 10).
4
