Removing The System Memory (Ram) - EUROCOM ARMADILLO 2 W840AU Service Manual

Disassembly

Removing the System Memory (RAM)

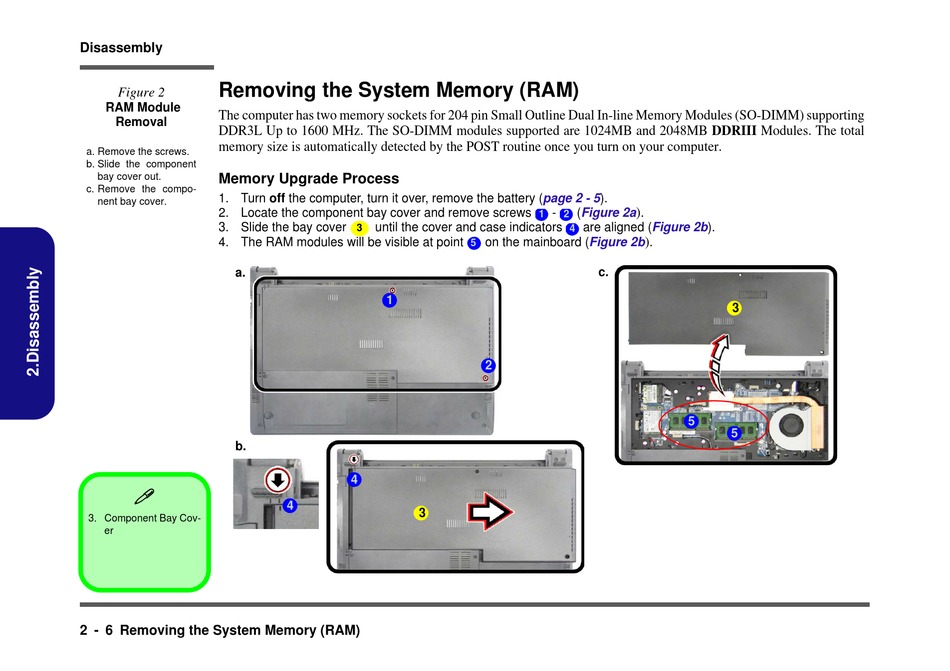

Figure 2
RAM Module
The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting
Removal
DDR3L Up to 1600 MHz. The SO-DIMM modules supported are 1024MB and 2048MB DDRIII Modules. The total
memory size is automatically detected by the POST routine once you turn on your computer.
a. Remove the screws.
b. Slide the component
bay cover out.
Memory Upgrade Process
c. Remove the compo-
1. Turn off the computer, turn it over, remove the battery
nent bay cover.
2. Locate the component bay cover and remove screws
3. Slide the bay cover
4. The RAM modules will be visible at point
a.
b.

3. Component Bay Cov-
er
2 - 6 Removing the System Memory (RAM)
