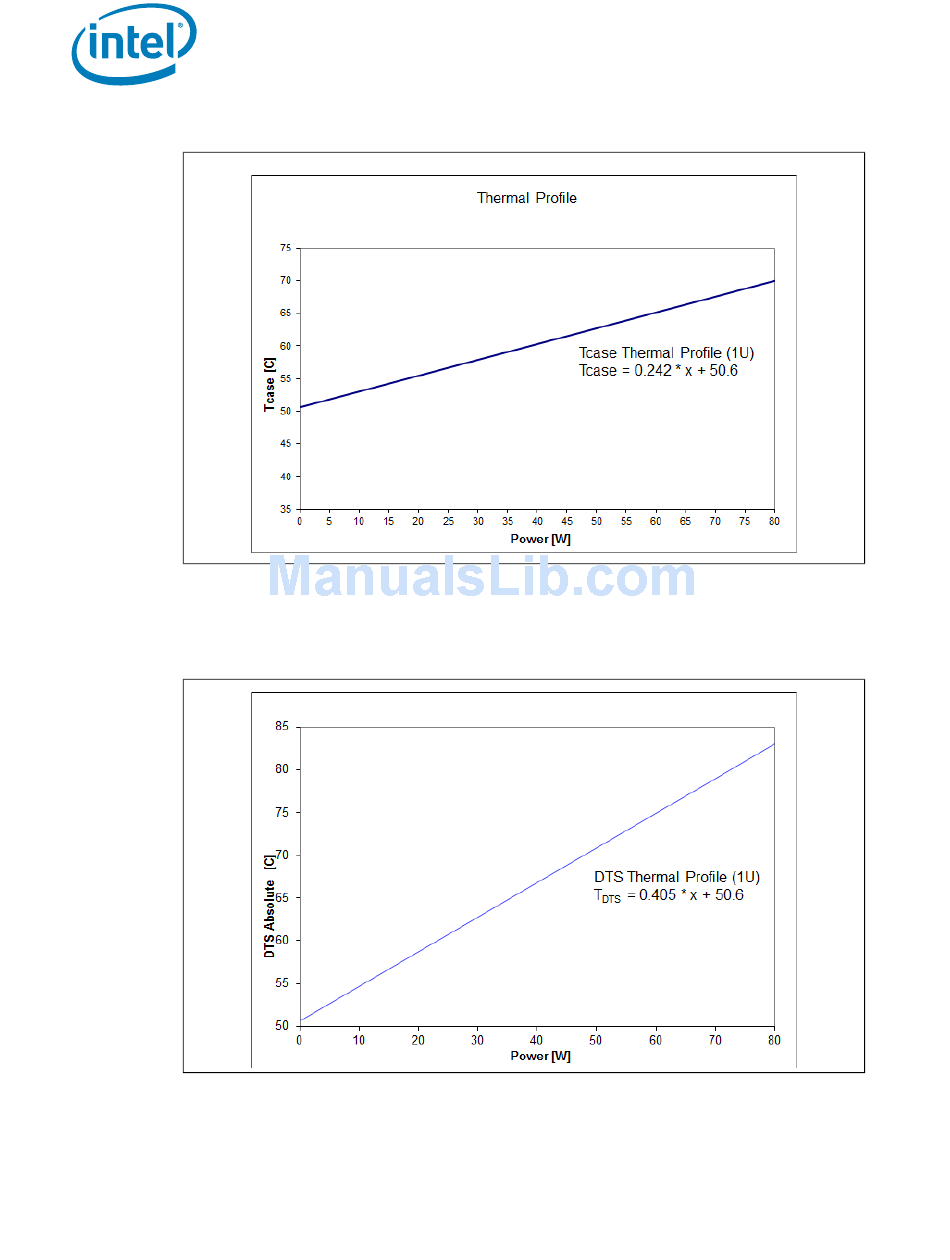

Figure 5-25. Tcase: 4/2-Core 80W Thermal Profile 1U
Notes:
1.
Please refer to
2.
Implementation of this Thermal Profile should result in virtually no TCC activation. Refer to the Intel®
Xeon® Processor E5-1600/E5-2600/E5-4600 Product Families Thermal/Mechanical Design Guide for
system and environmental implementation details.
Figure 5-26. DTS: 4-Core 80W Thermal Profile 1U
Notes:
1.
Some processor units may be tested to lower TDP and the TEMPERATURE_TARGET MSR will be aligned to
that lower TDP.
2.
Please refer to
3.
Implementation of this Thermal Profile should result in virtually no TCC activation. Refer to the Intel®
Xeon® Processor E5-1600/E5-2600/E5-4600 Product Families Thermal/Mechanical Design Guide for
system and environmental implementation details.
130
Table 5-25
for discrete points that constitute the thermal profile.
Table 5-25
for discrete points that constitute the thermal profile.
Intel® Xeon® Processor E5-1600/E5-2600/E5-4600 Product Families
Thermal Management Specifications
Datasheet Volume One
