Slot Locations

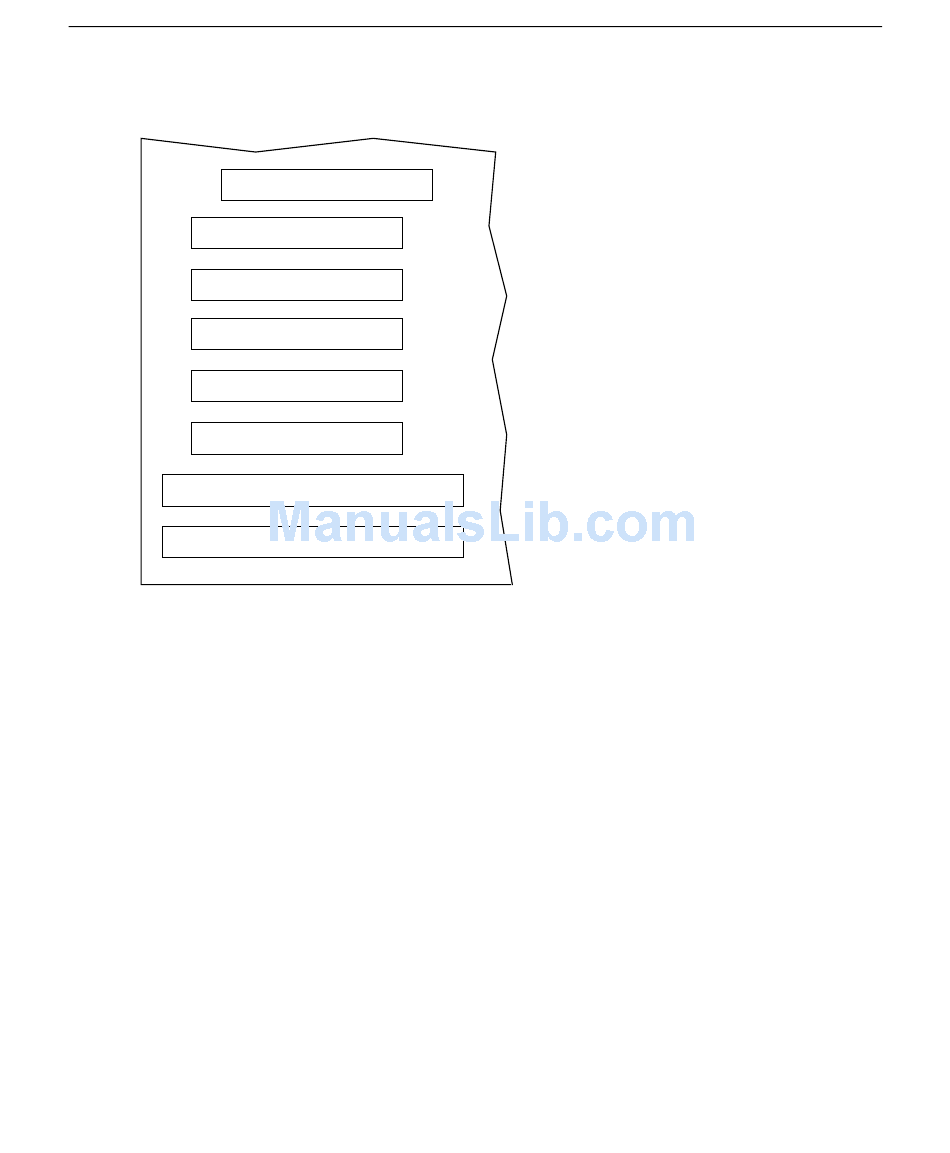

AGP slot

PCI slot

PCI slot (shared)

ISA slot (shared)

ISA slot

For other cards, such as internal modems or SCSI adapters, see the documentation that came with

the card for details on installation, configuration, cable connections, and operation.

To install an option card:

Locate an open slot and remove the blanking plate for the slot. Keep the retaining screw.

NOTE

If you have no open slots and/or want to replace an existing expansion card, see the

instructions in Chapter 2, "Servicing the System."

Remove the expansion card from its antistatic packaging.

Slide the expansion card carefully into the card guides. Ensure that the connectors on the

board's edge are aligned properly with the slot connector.

Push the card into the slot firmly and evenly until it is fully seated in the slot connector.

Inspect the connection. If it does not appear to be correct, remove and reinstall the card.

Install the retaining screw.

Attach any required cables to the internal or external connectors.
