10
6.
Replace the two hinge screws, ensuring that the hinge screws are equally tightened. This will
ensure that the door is centered properly.
To replace the face panel:
1.
Remove the disk drive section door from the old face panel. See the previous procedure.
2.
Install the disk drive section door in the new face panel. See the previous procedure.
3.
Remove the old face panel by removing the four screws at the bottom left and right corners of
the face panel.
4.
Align the new face panel with the front of the unit, and reattach the 4 screws from step 3.
5.
Close the new face panel. See Chapter 1, "Accessing the Components," for details.

Peripheral Drives

This section explains how to replace the CD-ROM drive and the various disk drives in the system.
See Chapter 5, "Peripherals," for details on drive configuration and cables.

CD-ROM Drive

The procedure for replacing a SCSI or an EIDE CD-ROM drive is the same, except for data cables
and jumper settings.
To replace the CD-ROM drive (or any other peripheral in the Peripheral Cage):
1.
Remove the front panel, as described in the previous section.
2.
Disconnect the power and data cables from the CD-ROM drive and other peripherals in the
cage. Note the position of the red stripe on the CR-ROM data cable.

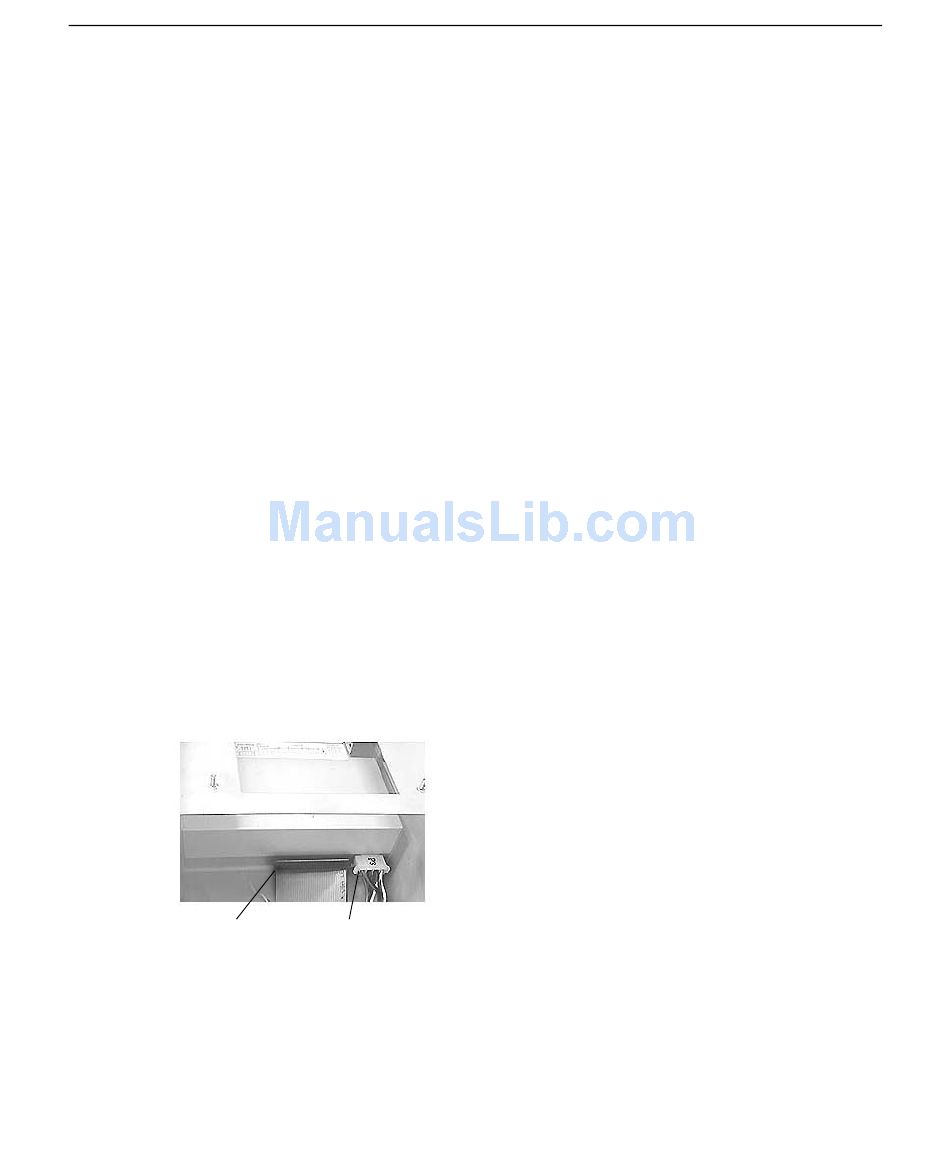

Data Cable
3.
Remove the four screws at the top and bottom left and right of the peripheral cage that attach
the peripheral cage to the chassis.
Power Connector
