The STB Signal Level and Bitrates columns refresh every 30 seconds with the latest data. If
a bitrates value is shown with a green background, the data transmission is within a standard
operating range; if the bitrates value is shown with a yellow background, the data transmission
may be too slow (i.e., between 0.2 and 2 Mbps); and if the bitrates value is shown with a red
background, there is little to no data transmission (under 0.2 Mbps).
Note: The System Status screen above shows a typical DISH Network system with IP output
data. If a DISH Network system is configured for RF output, the System Status screen will
show up to 12 streams (four channels with three programs each). If an additional STB (one or
two) is installed for spare purposes, you will be able to see the spare(s) in the STB Information
screen described below.

STB Information

For each STB connected to the PIVD100R, the STB Information screen identifies the STB
channel number, the STB signal level, the streaming bitrates (color coded as described
above), the STB serial number, and the link status (UP or DOWN). For COM 23 STBs, the
screen will also identify the STB access card number and the activation status of the STB
(Activated or N/A), while for ViP 222/ViP 222k STBs, the screen will identify the STB smart
card number and the STB software version.
From the STB Information screen, you can click on an STB channel number to access the
STB Menu for the selected STB. Refer to "STB Menu Options" on pages 24 to 27 for
information on the STB Menu
To view the STB information data at any time while you are working in the web GUI, click on
STB Info in the options panel at the left of the screen.
206-4202
Configuration Options via GUI (Cont.)
yellow
red
green
yellow
red
green
yellow
red
green
yellow yellow
red red
green green

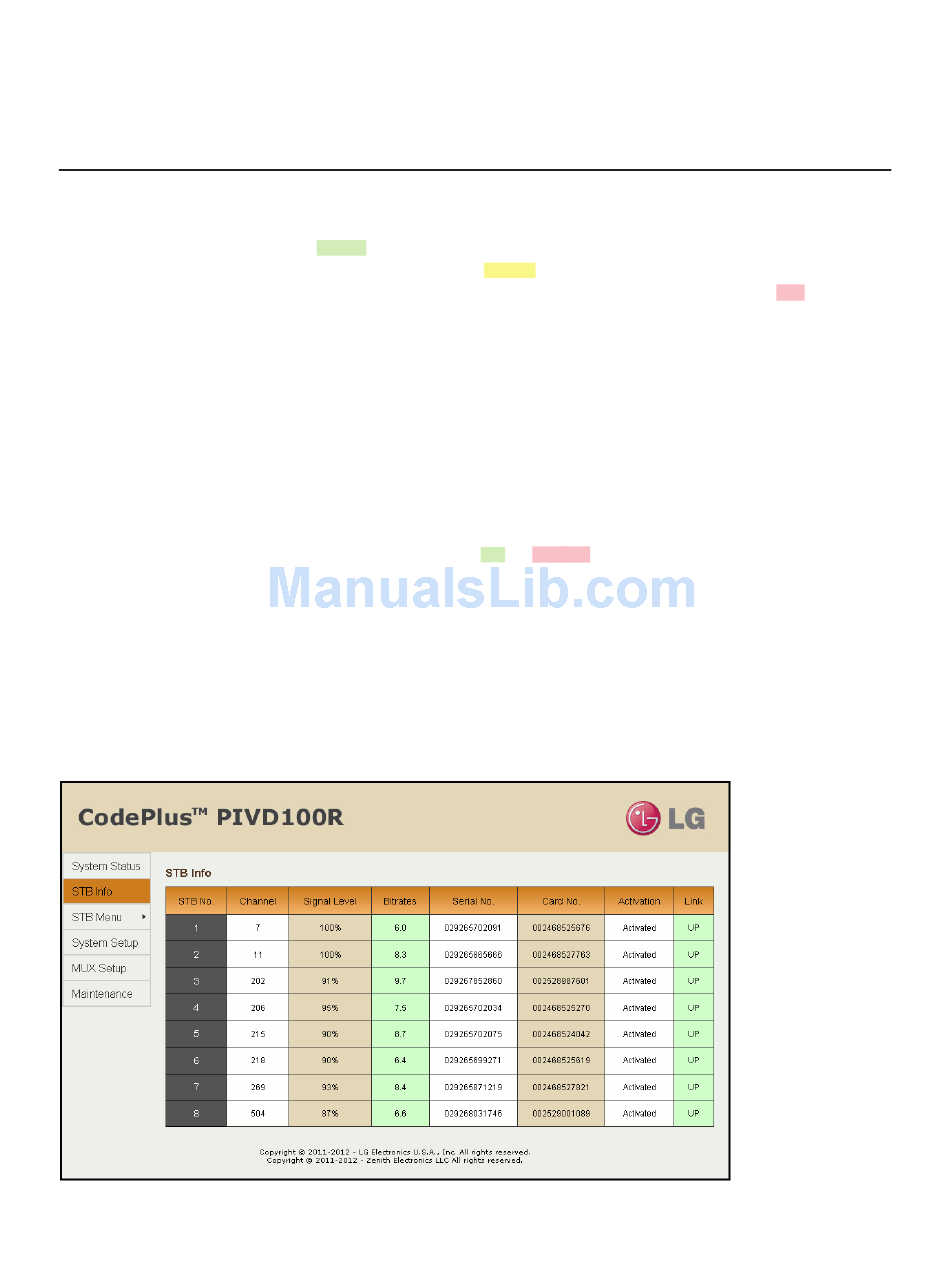

Typical STB
Information
Screen
23
