Access the PIVD100R Web GUI

Note: The PIVD100R must be connected to an IP network for GUI access. See "Network and
Communication Setup" on page 20 for further information.
If necessary, consult the system administrator to obtain the "admin" user password before
proceeding.
1. Launch a web browser, and type http://ipaddress in the browser's address bar, where
ipaddress is the network IP address of the PIVD100R. Then, press Enter.
2. The system will display a login authentication pop-up window. In the User Name field, type
admin; in the Password field, type the admin user password. Then, click OK.

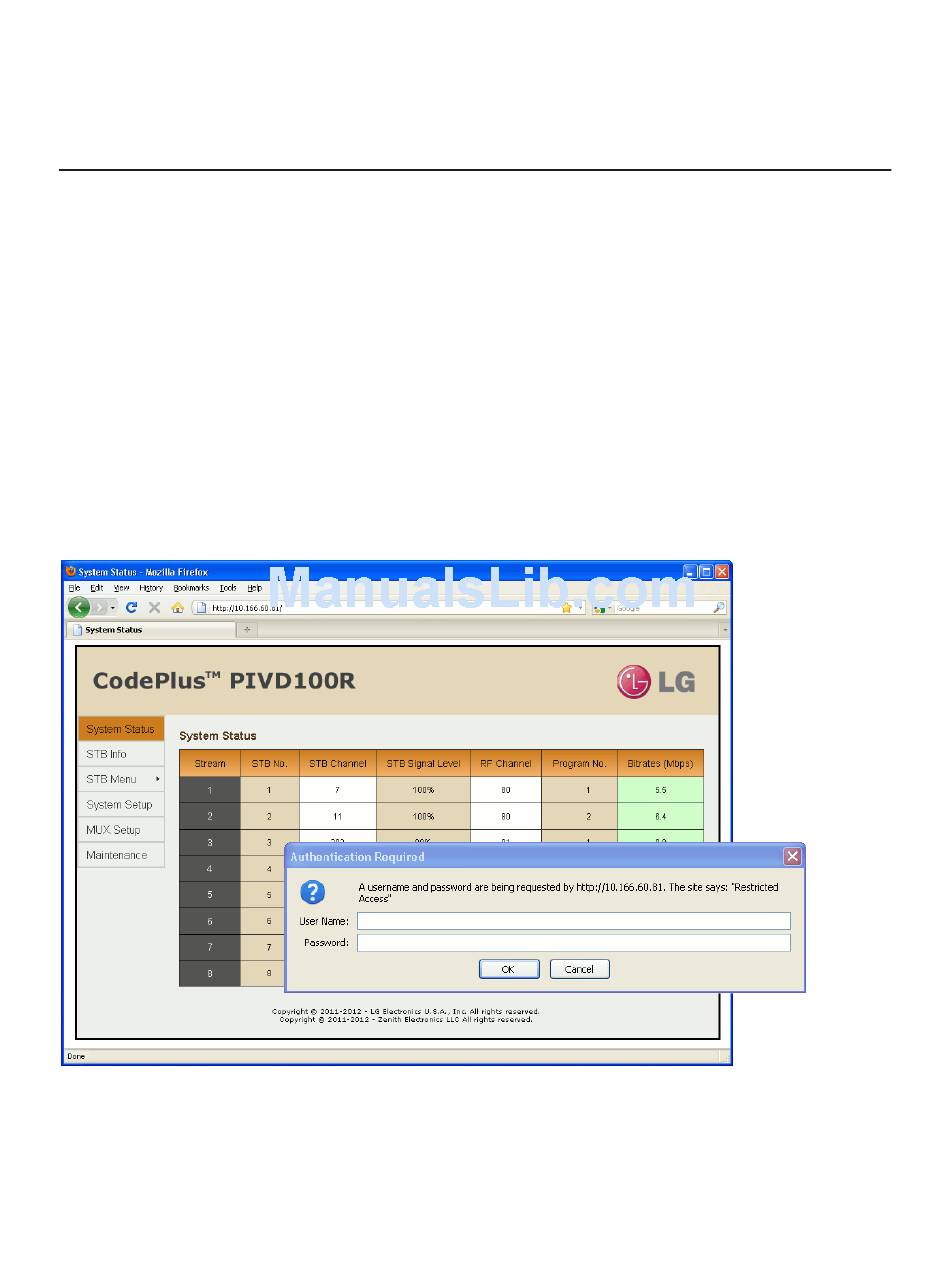

The PIVD100R web GUI opens with the System Status on display (see "PIVD100R System
Status" on the next page for further information). The options panel at the left of the screen
enables you to view and configure system settings. The following sections provide detailed
information on the configuration settings and commands.
Note: The System Status screen above shows a typical DIRECTV system with RF output data.
Note: It is possible, if desired, to change the login password via the command line interface
Setup Menu "pwd" command as described on page 56.
When you have completed your activities in the PIVD100R web GUI, it is recommended
that you close your browser to prevent unauthorized access to the system.
