Rack-Mount Considerations; Rack Installation - LG CodePlus PIVD100R Installation & Setup Manual

Rack Installation (Cont.)

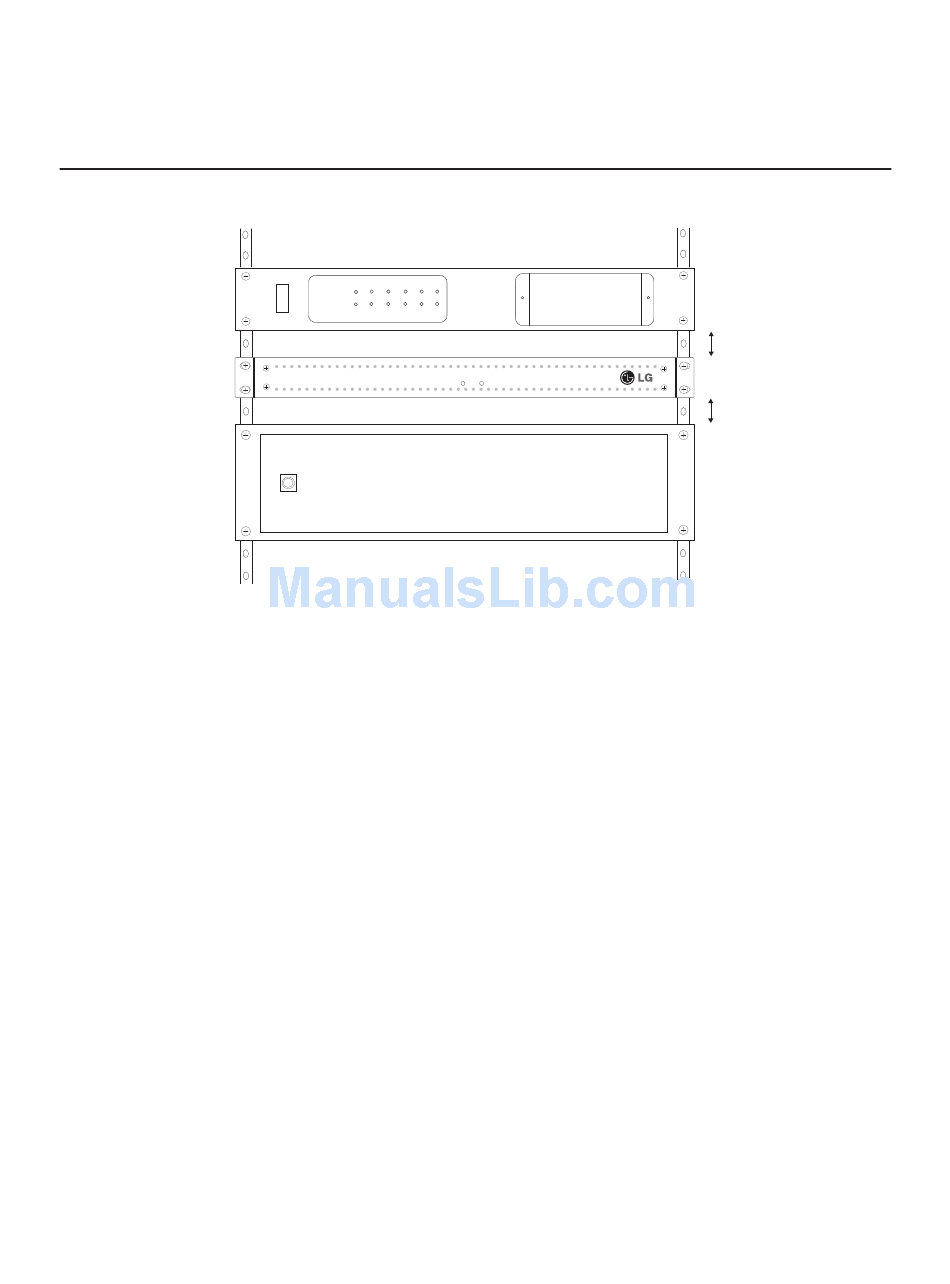

Front View
of Rack Cabinet

Rack-mount Considerations

A. Elevated Operating Ambient
If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the
rack environment may be greater than room ambient. Therefore, consideration should be given
to installing the equipment in an environment compatible with the maximum ambient tempera-
ture (Tma) specified by the manufacturer (see Specifications information in this document).
B. Reduced Air Flow
Installation of the equipment in a rack should be such that the amount of air flow required for
safe operation of the equipment is not compromised. To ventilate the system normally and
avoid overheating, leave at least 1 inch (2.5 cm) on each side (including top and bottom) of
the PIVD100R. Do NOT stack other equipment on the top of the PIVD100R.
C. Circuit Overloading
Consideration should be given to the connection of the equipment to the supply circuit and
the effect that overloading of the circuits might have on overcurrent protection and supply
wiring.
D. Reliable Earthing
Maintain reliable earthing of rack-mounted equipment. Particular attention should be given
to supply connections other than direct connections to the branch circuit (e.g. use of power
strips).
E. Mains Outlet Earthing
The apparatus with Class I construction must be connected to a mains socket outlet with a
protective earthing connection.
