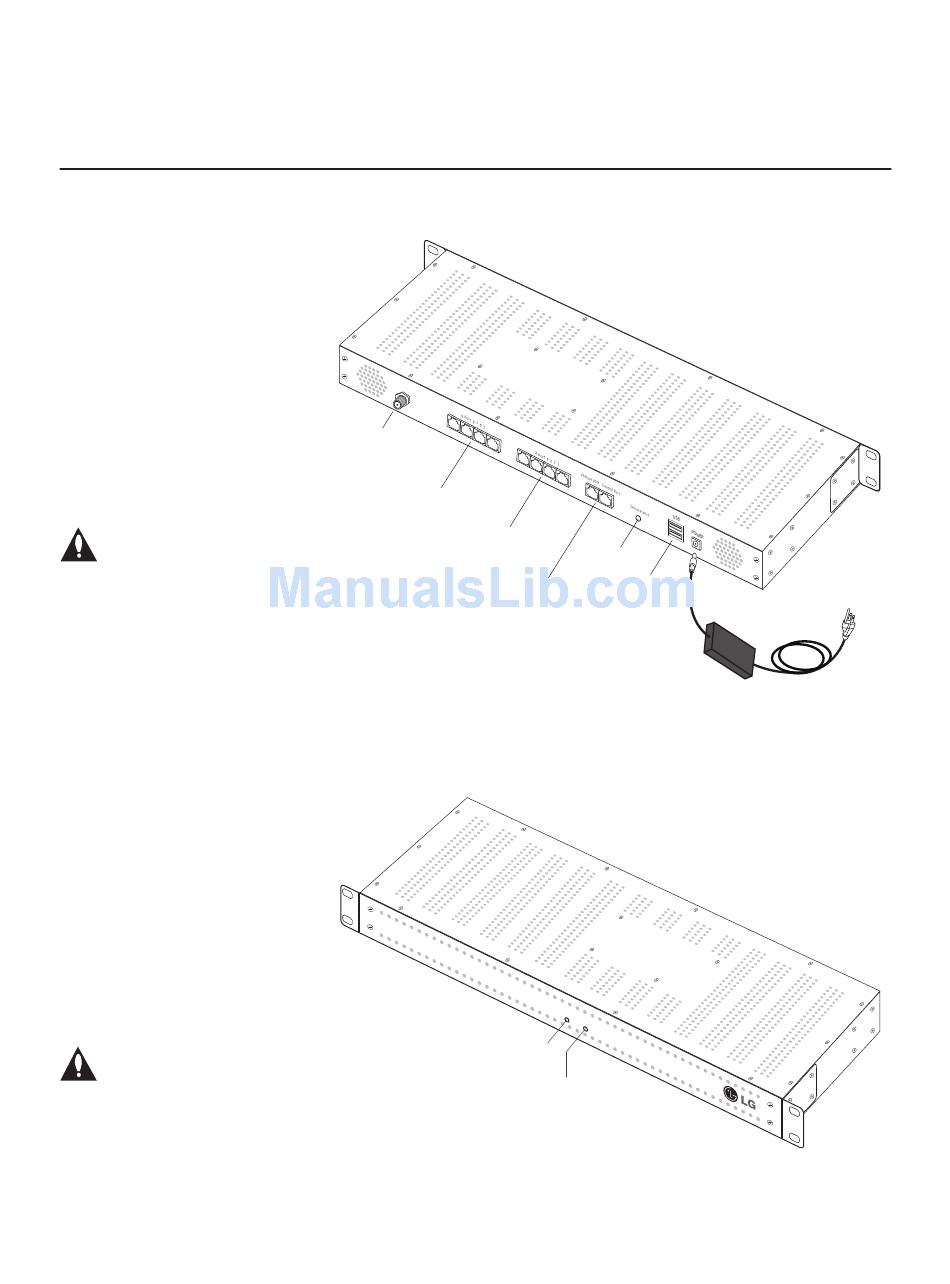

Rear and Front Panel Overviews

PIVD100R Rear View
Disconnect Device
The AC mains plug is used
as the disconnect device.
The disconnect device must
remain readily operable.
PIVD100R Front View
Ventilation Holes
Air flow must not be obstructed. To
ventilate the system normally and
avoid overheating, leave at least 1
inch (2.5 cm) on each side (including
top and bottom) of the PIVD100R.
Do NOT stack other equipment on
the top of the PIVD100R.
10
R F -
O U
T
RF Out
X-Ports
8, 7, 6, 5
X-Ports
4, 3, 2, 1
Feature & Control
(Ethernet) Ports
POWER LED
Service Port
USB Ports
P W
R
S T
A T
U S
STATUS LED
AC Power
Cord & Adapter
206-4202
