System Setup; Typical Setup Flowchart For Pivd100R; With Rf Output - LG CodePlus PIVD100R Installation & Setup Manual

Refer to the following diagrams, and complete the system installation as described on pages
15 to 19.
Caution: Do NOT make system connections until instructed to do so during the
system installation procedure. In some instances, configuration steps must be
performed before physical connections are made.

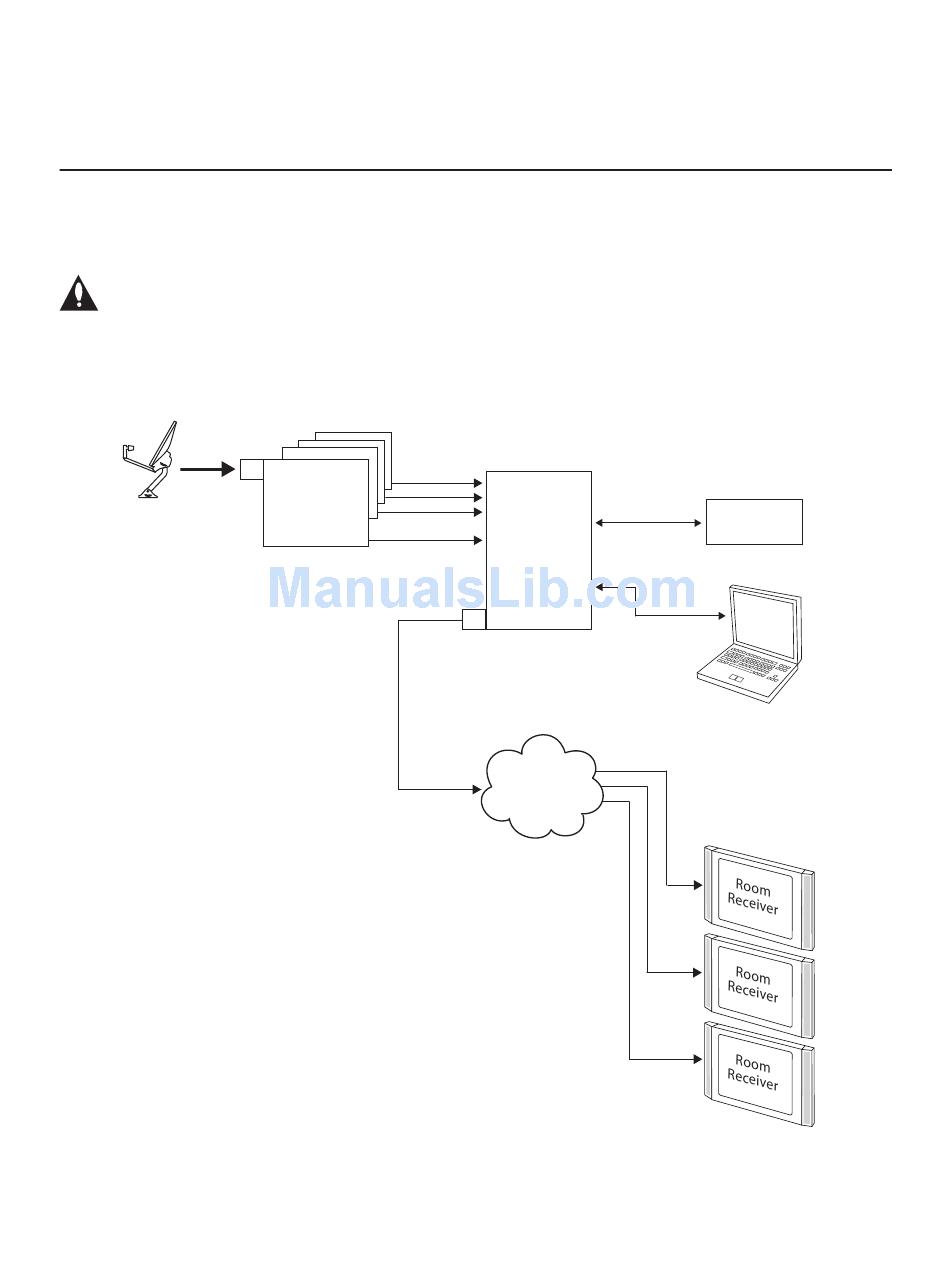

Typical Setup Flow Chart for PIVD100R with RF Output
Satellite Signal/
Distribution
*
* Multi-switch will be necessary if the number
of transcoders exceeds the dish antenna's
capacity.
** Where n is the last X-Port used. Up to eight
COM 23 or six ViP 222/ViP 222k STBs are
supported for RF output.
206-4202
CAT5E
Cable
Satellite In
Satellite
STB
Ethernet
RF
Cable
IP
Distribution
Network
X-Port 1
X-Port 2
X-Port 3
. .
.
X-Port n **
PIVD100R
RF Out
Service Port
Connection
RF
Distribution
System

System Setup

Network
Laptop
PC
13
