PIVD100R System Status
For each transport stream (one per COM 23 STB or two per ViP 222/ViP 222k STB), the
System Status screen identifies the STB number, the STB channel, the STB signal level, and
the streaming bitrates. Depending on the output mode, the display also identifies (for each
stream) either the RF channel and program number or the multicast IP address and port number.
From the System Status screen, you can click on an STB channel number to access the
STB Menu for the selected STB. Also, you can click on an RF channel number or multicast
IP address, depending on the output mode, to access the System Setup screen and menu
options for the PIVD100R. Refer to "STB Menu Options" on pages 24 to 27 for information on
the STB Menu and "PIVD100R System Setup Options" on pages 27 to 32 for information on
the System Setup display and menu options.
To view the System Status data at any time while you are working in the web GUI, click on
System Status in the options panel at the left of the screen.
22

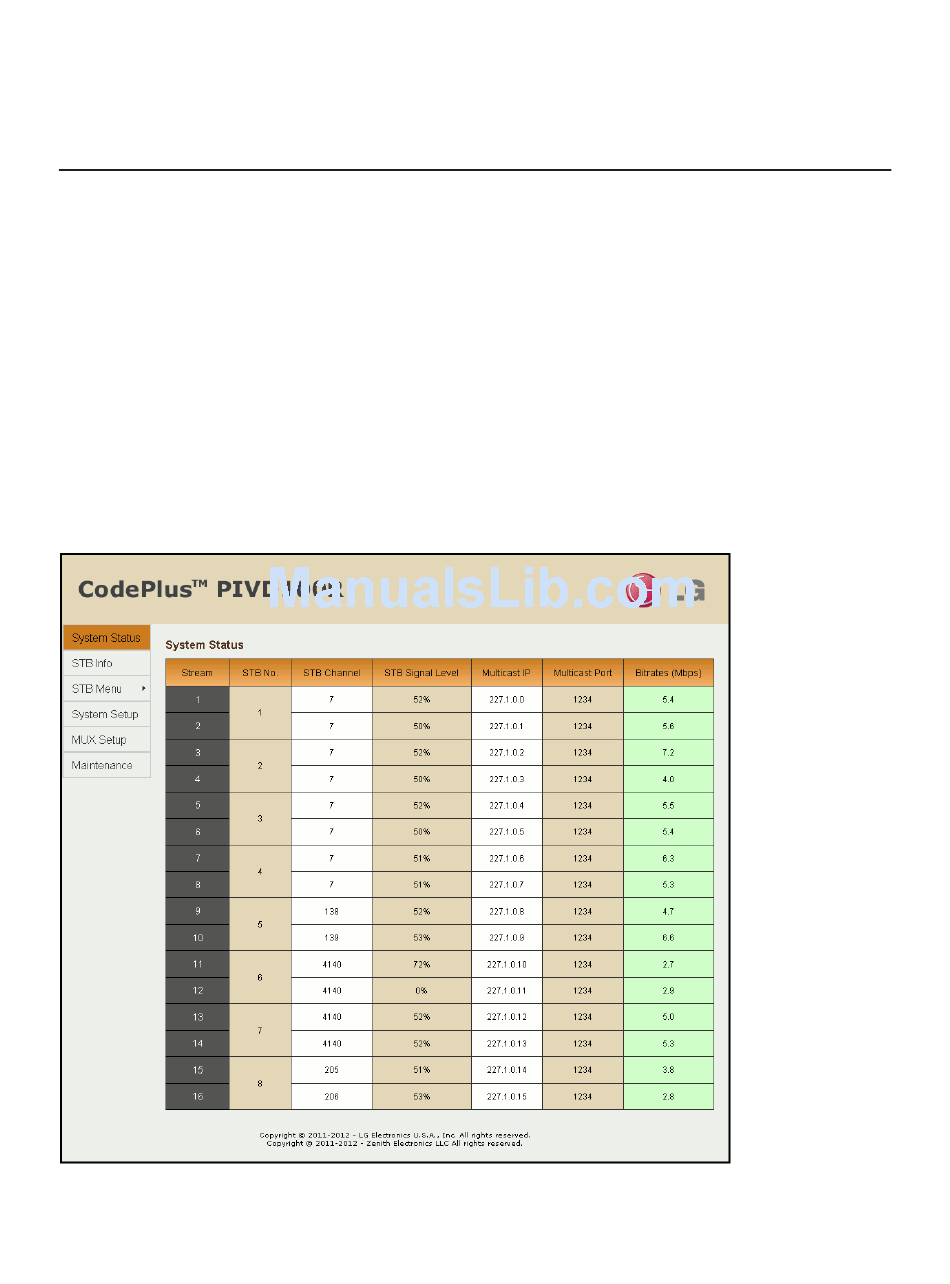

Typical System
Status Screen
(DISH Network
system with IP
output data)
206-4202
