Typical Rack Installation

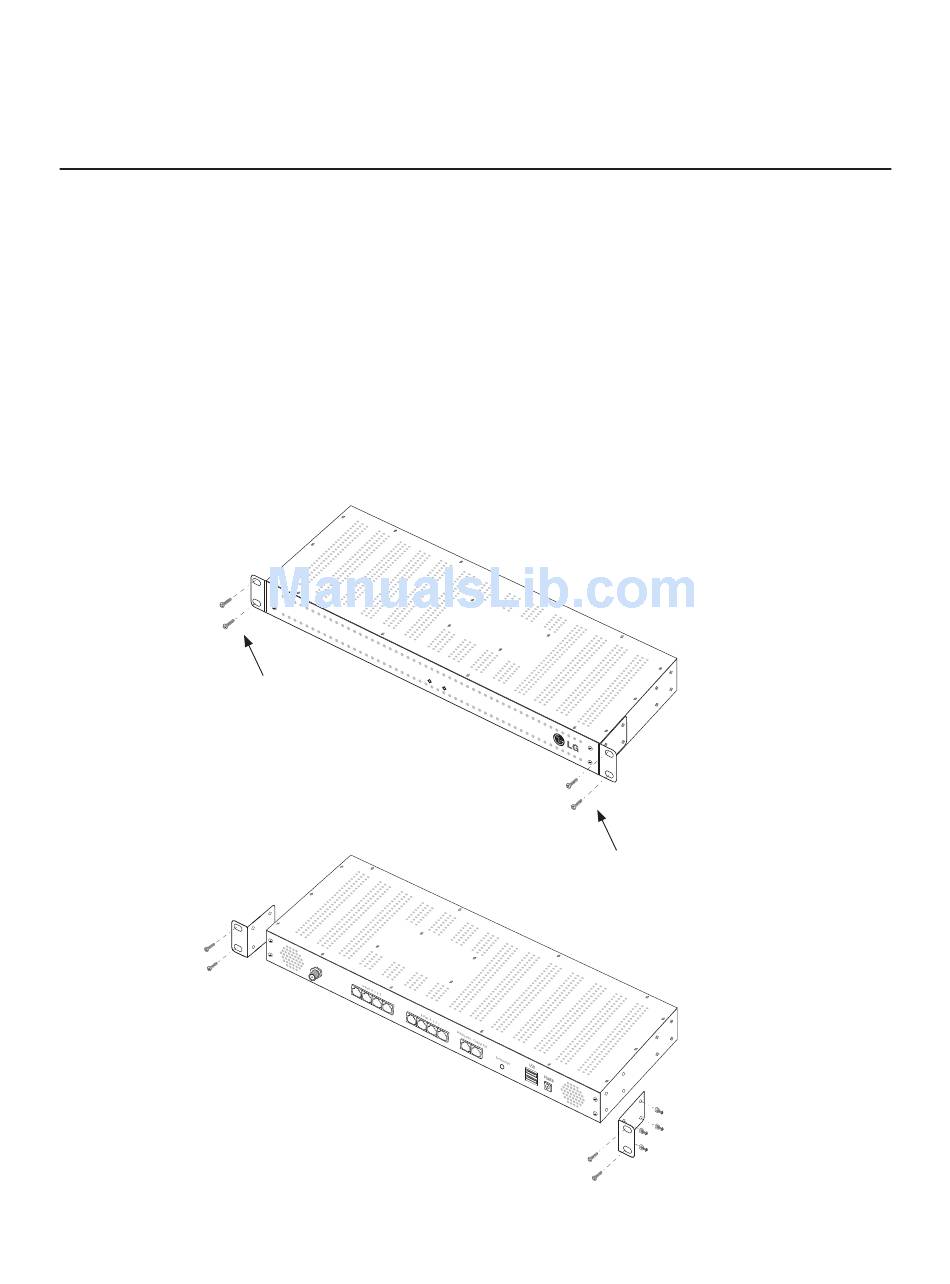

1. (Optional) As shipped, the PIVD100R mounting brackets are attached flush with the front of
the unit (see diagram a). If desired, the mounting brackets may be detached from the unit
and reattached, for example, so that they are flush with the rear of the unit (see diagram b).
If you wish to change the location/orientation of the mounting brackets, carefully remove
each of the four (M4 x 10 mm) screws and attendant washers (one flat and one lock washer
per screw) holding each bracket in place. Then, use the same screws and washers to
reattach the mounting brackets in the desired location.
2. Carefully slide the chassis into a standard 19-inch equipment rack.
3. Use all four mounting screws to secure the chassis to the rack.
(a)
(b)
206-4202
To rack
R F -
R F -O
O U
U T
T
P W
R
S T
A T
U S
P W
R
S T
A T
U S
To rack
Rack Installation
Use flat washer and
lock washer with each
M4 x 10 mounting
bracket screw.
11
