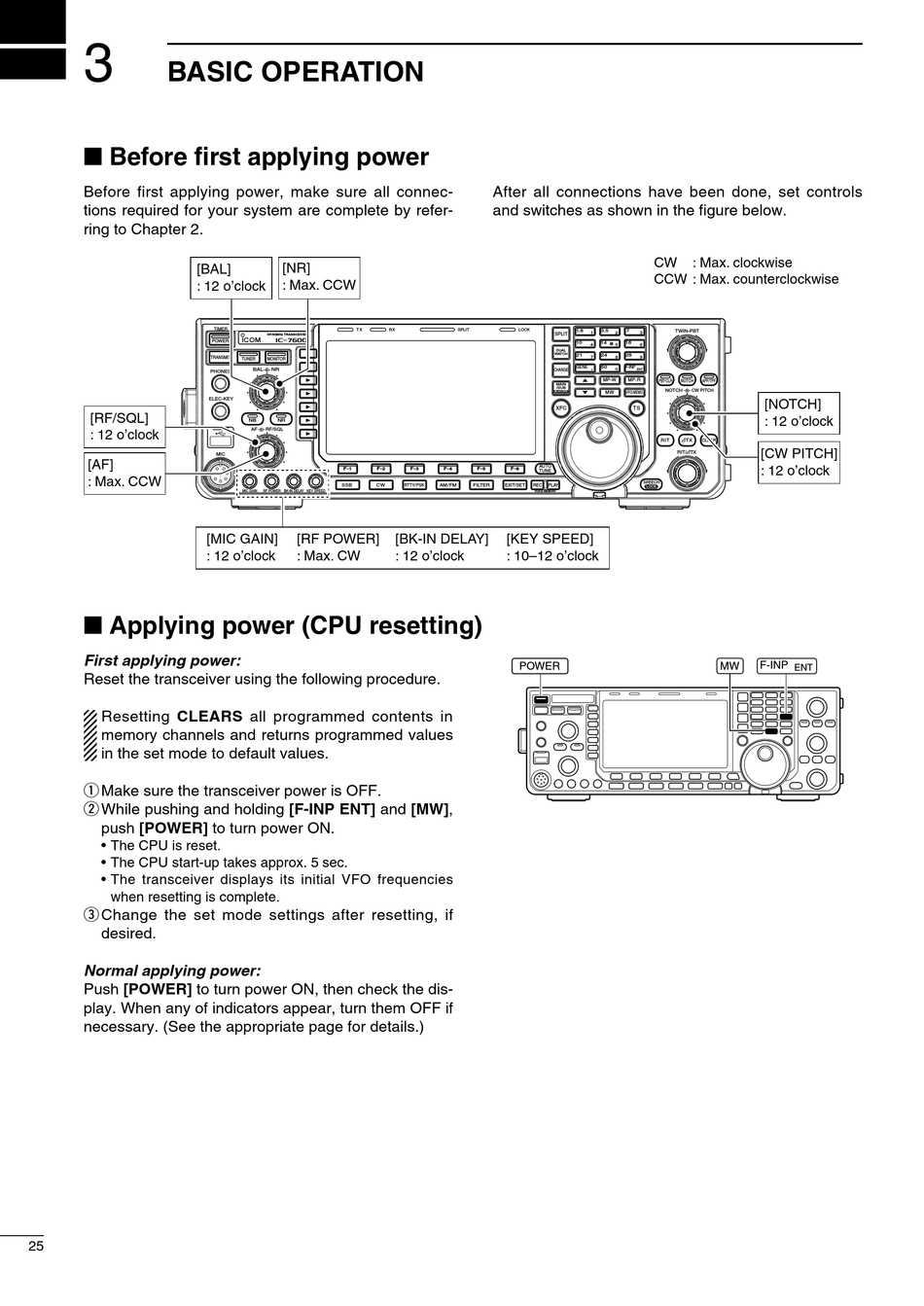

BASIC OPERATION

■ Before first applying power

Before frst applyng power, make sure all connec-
tons requred for your system are complete by refer-
rng to Chapter 2.
[BAL]
: 12 o'clock
[RF/SQL]
: 12 o'clock
[AF]
: Max. CCW
■ Applying power (CPU resetting)
First applying power:
Reset the transcever usng the followng procedure.
Resettng CLEARS all programmed contents n
memory channels and returns programmed values
n the set mode to default values.
q Make sure the transcever power s OFF.
w Whle pushng and holdng [F-INP ENT] and [MW],
push [POWER] to turn power ON.
• The CPU s reset.
• The CPU start-up takes approx. 5 sec.
• The transcever dsplays ts ntal VFO frequences
when resettng s complete.
e Change the set mode settngs after resettng, f
desred.
Normal applying power:
Push [POWER] to turn power ON, then check the ds-
play. When any of ndcators appear, turn them OFF f
necessary. (See the approprate page for detals.)
