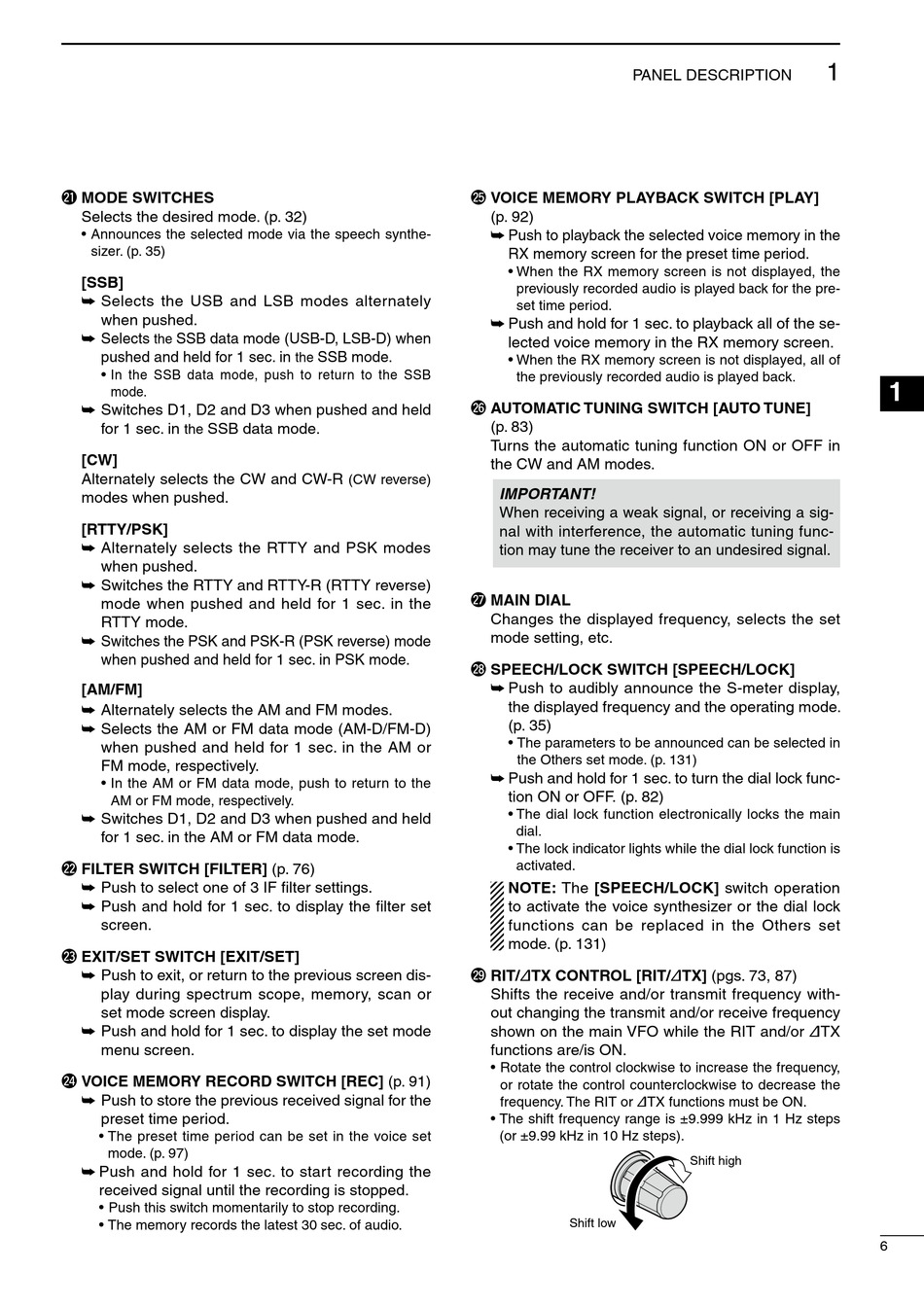

Icom IC-7600 Instruction Manual page 13

@1 MODE SWITCHES
Selects the desred mode. (p. 32)
• Announces the selected mode va the speech synthe-
szer. (p. 35)
[SSB]
➥ Selects the USB and LSB modes alternately
when pushed.
➥ Selects SSB data mode (USB-D, LSB-D) when
the
pushed and held for 1 sec. n
• In the SSB data mode, push to return to the SSB
mode.
➥ Swtches D1, D2 and D3 when pushed and held
for 1 sec. n SSB data mode.
the
[CW]
Alternately selects the CW and CW-R
modes when pushed.
[RTTY/PSK]
➥ Alternately selects the RTTY and PSK modes
when pushed.
➥ Swtches the RTTY and RTTY-R (RTTY reverse)
mode when pushed and held for 1 sec. n the
RTTY mode.
➥ Swtches the PSK and PSK-R (PSK reverse) mode
when pushed and held for 1 sec. n PSK mode.
[AM/FM]
➥ Alternately selects the AM and FM modes.
➥ Selects the AM or FM data mode (AM-D/FM-D)
when pushed and held for 1 sec. n the AM or
FM mode, respectvely.
• In the AM or FM data mode, push to return to the
AM or FM mode, respectvely.
➥ Swtches D1, D2 and D3 when pushed and held
for 1 sec. n the AM or FM data mode.
@2 FILTER SWITCH [FILTER] (p. 76)
➥ Push to select one of 3 IF filter settngs.
➥ Push and hold for 1 sec. to dsplay the filter set
screen.
@3 EXIT/SET SWITCH [EXIT/SET]
➥ Push to ext, or return to the prevous screen ds-
play durng spectrum scope, memory, scan or
set mode screen dsplay.
➥ Push and hold for 1 sec. to dsplay the set mode
menu screen.
@4 VOICE MEMORY RECORD SWITCH [REC] (p. 91)
➥ Push to store the prevous receved sgnal for the
preset tme perod.
• The preset tme perod can be set n the voce set
mode. (p. 97)
➥ Push and hold for 1 sec. to start recordng the
receved sgnal untl the recordng s stopped.
• Push ths swtch momentarly to stop recordng.
• The memory records the latest 30 sec. of audo.
SSB mode.
the
(CW reverse)
PANEL DESCRIPTION
@5 VOICE MEMORY PLAYBACK SWITCH [PLAY]
(p. 92)
➥ Push to playback the selected voce memory n the
RX memory screen for the preset tme perod.
• When the RX memory screen s not dsplayed, the
prevously recorded audo s played back for the pre-
set tme perod.
➥ Push and hold for 1 sec. to playback all of the se-
lected voce memory n the RX memory screen.
• When the RX memory screen s not dsplayed, all of
the prevously recorded audo s played back.
@6 AUTOMATIC TUNING SWITCH [AUTO TUNE]
(p. 83)
Turns the automatc tunng functon ON or OFF n
the CW and AM modes.
IMPORTANT!
When recevng a weak sgnal, or recevng a sg-
nal wth nterference, the automatc tunng func-
ton may tune the recever to an undesred sgnal.
@7 MAIN DIAL
Changes the dsplayed frequency, selects the set
mode settng, etc.
@8 SPEECH/LOCK SWITCH [SPEECH/LOCK]
➥ Push to audbly announce the S-meter dsplay,
the dsplayed frequency and the operatng mode.
(p. 35)
• The parameters to be announced can be selected n
the Others set mode. (p. 131)
➥ Push and hold for 1 sec. to turn the dal lock func-
ton ON or OFF. (p. 82)
• The dal lock functon electroncally locks the man
dal.
• The lock ndcator lghts whle the dal lock functon s
actvated.
NOTE: The [SPEECH/LOCK] swtch operaton
to actvate the voce syntheszer or the dal lock
functons can be replaced n the Others set
mode. (p. 131)
@9 RIT/∂TX CONTROL [RIT/∂TX] (pgs. 73, 87)
Shfts the receve and/or transmt frequency wth-
out changng the transmt and/or receve frequency
shown on the man VFO whle the RIT and/or ∂TX
functons are/s ON.
• Rotate the control clockwse to ncrease the frequency,
or rotate the control counterclockwse to decrease the
frequency. The RIT or ∂TX functons must be ON.
• The shft frequency range s ±9.999 kHz n 1 Hz steps
(or ±9.99 kHz n 10 Hz steps).
