4
RECEIVE AND TRANSMIT

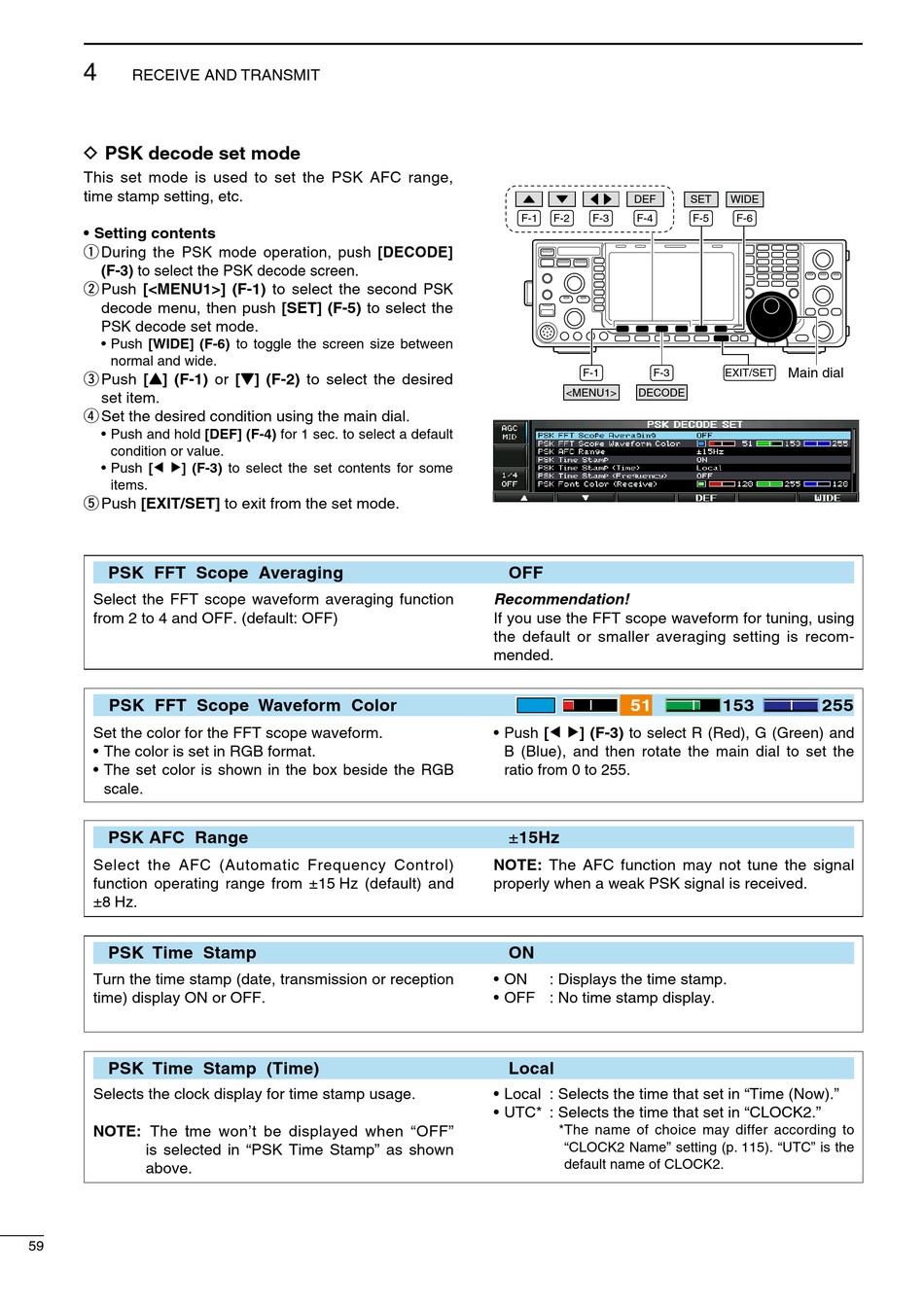

D PSK decode set mode

Ths set mode s used to set the PSK AFC range,
tme stamp settng, etc.
• Setting contents
q Durng the PSK mode operaton, push [DECODE]
(F-3) to select the PSK decode screen.
w Push [<MENU1>] (F-1) to select the second PSK
decode menu, then push [SET] (F-5) to select the
PSK decode set mode.
• Push [WIDE] (F-6) to toggle the screen sze between
normal and wde.
e Push [Y] (F-1) or [Z] (F-2) to select the desred
set tem.
r Set the desred condton usng the man dal.
• Push and hold [DEF] (F-4) for 1 sec. to select a default
condton or value.
• Push [Ω ≈] (F-3) to select the set contents for some
tems.
t Push [EXIT/SET] to ext from the set mode.
PSK FFT Scope Averaging
Select the FFT scope waveform averagng functon
from 2 to 4 and OFF. (default: OFF)
PSK FFT Scope Waveform Color
Set the color for the FFT scope waveform.
• The color s set n RGB format.
• The set color s shown n the box besde the RGB
scale.
PSK AFC Range
Select the AFC (Automatc Frequency Control)
functon operatng range from ±15 Hz (default) and
±8 Hz.
PSK Time Stamp
Turn the tme stamp (date, transmsson or recepton
tme) dsplay ON or OFF.
PSK Time Stamp (Time)
Selects the clock dsplay for tme stamp usage.
NOTE: The t  me won't be dsplayed when "OFF"
s selected n "PSK Tme Stamp" as shown
above.
59
DEF
F-1 F-2 F-3 F-4
F-1 F-3
<MENU1> DECODE
OFF
Recommendation!
If you use the FFT scope waveform for tunng, usng
the default or smaller averagng settng s recom-
mended.
51
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and then rotate the man dal to set the
rato from 0 to 255.
±15Hz
NOTE: The AFC functon may not tune the sgnal
properly when a weak PSK sgnal s receved.
ON
• ON : Dsplays the tme stamp.
• OFF : No tme stamp dsplay.
Local
• Local : Selects the tme that set n "Tme (Now)."
• UTC* : Selects the tme that set n "CLOCK2."
* The name of choce may dffer accordng to
"CLOCK2 Name" settng (p. 115). "UTC" s the
default name of CLOCK2.
SET WIDE
F-5 F-6
Main dial
EXIT/SET
153 255
