4
RECEIVE AND TRANSMIT

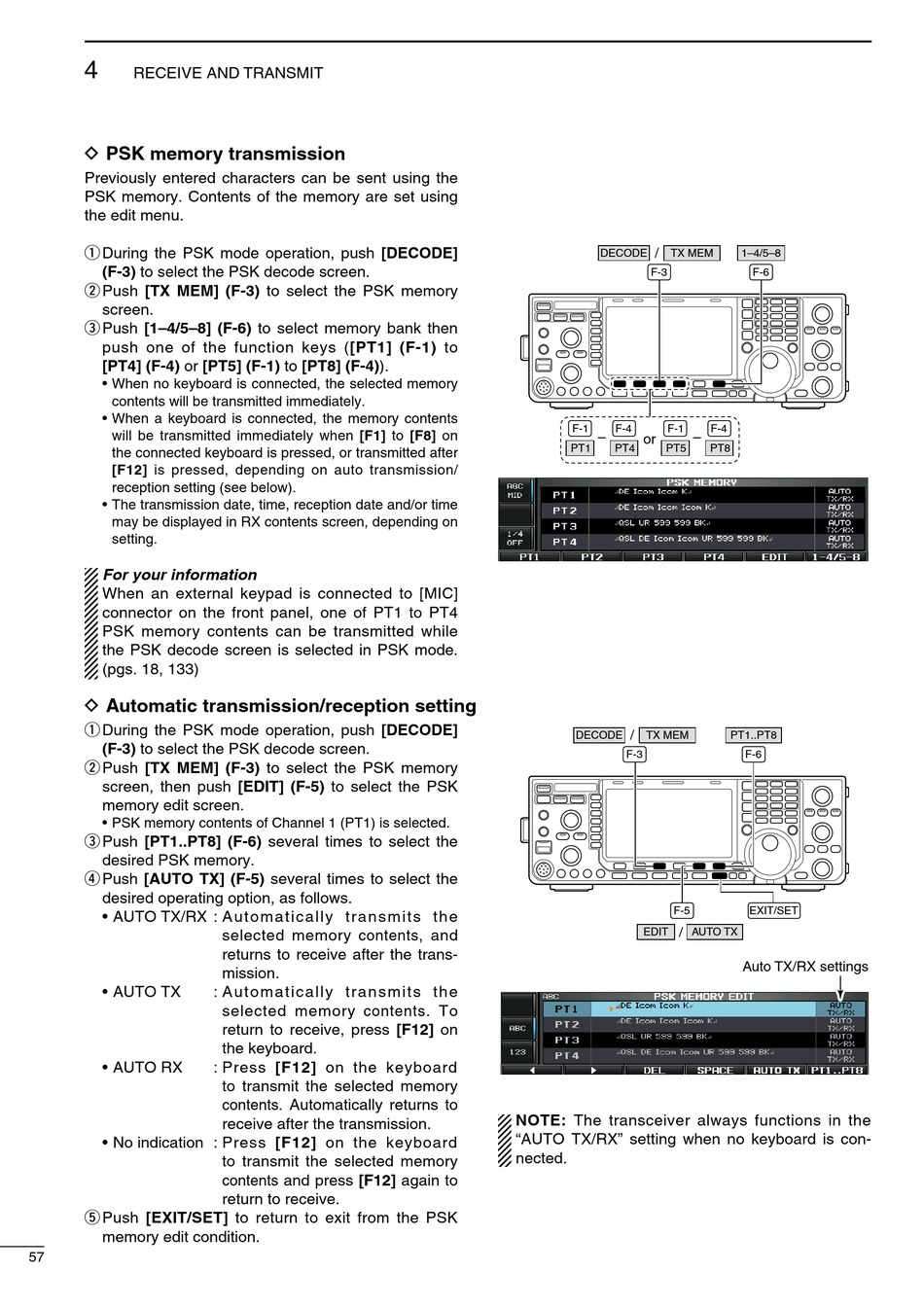

D PSK memory transmission

Prevously entered characters can be sent usng the
PSK memory. Contents of the memory are set usng
the edt menu.
q Durng the PSK mode operaton, push [DECODE]
(F-3) to select the PSK decode screen.
w Push [TX MEM] (F-3) to select the PSK memory
screen.
e Push [1–4/5–8] (F-6) to select memory bank then
push one of the functon keys ([PT1] (F-1) to
[PT4] (F-4) or [PT5] (F-1) to [PT8] (F-4)).
• When no keyboard s connected, the selected memory
contents wll be transmtted mmedately.
• When a keyboard s connected, the memory contents
wll be transmtted mmedately when [F1] to [F8] on
the connected keyboard s pressed, or transmtted after
[F12] s pressed, dependng on auto transmsson/
recepton settng (see below).
• The transmsson date, tme, recepton date and/or tme
may be dsplayed n RX contents screen, dependng on
settng.
For your information
When an external keypad s connected to [MIC]
connector on the front panel, one of PT1 to PT4
PSK memory contents can be transmtted whle
the PSK decode screen s selected n PSK mode.
(pgs. 18, 133)
D Automatic transmission/reception setting
q Durng the PSK mode operaton, push [DECODE]
(F-3) to select the PSK decode screen.
w Push [TX MEM] (F-3) to select the PSK memory
screen, then push [EDIT] (F-5) to select the PSK
memory edt screen.
• PSK memory contents of Channel 1 (PT1) s selected.
e Push [PT1..PT8] (F-6) several tmes to select the
desred PSK memory.
r Push [AUTO TX] (F-5) several tmes to select the
desred operatng opton, as follows.
• AUTO TX/RX : Automatcally transm ts the
• AUTO TX
• AUTO RX
• No ndcaton : Press [F12] on the keyboard
t Push [EXIT/SET] to return to ext from the PSK
memory edt condton.
57
selected memory contents, and
returns to receve after the trans-
msson.
: Automatcally transm ts the
selected memory contents. To
return to receve, press [F12] on
the keyboard.
: Press [F12] on the keyboard
to transmt the selected memory
contents. Automatcally returns to
receve after the transmsson.
to transmt the selected memory
contents and press [F12] agan to
return to receve.
/
DECODE TX MEM
F-3
F-1 F-4 F-1
–
or
PT1 PT4 PT5
/
DECODE TX MEM
F-3
F-5
/
EDIT AUTO TX
NOTE: The transcever always functons n the
"AUTO TX/RX" settng when no keyboard s con-
nected.
1–4/5–8
F-6
F-4
–
PT8
PT1..PT8
F-6
EXIT/SET
Auto TX/RX settings
