INSTALLATION AND CONNECTIONS

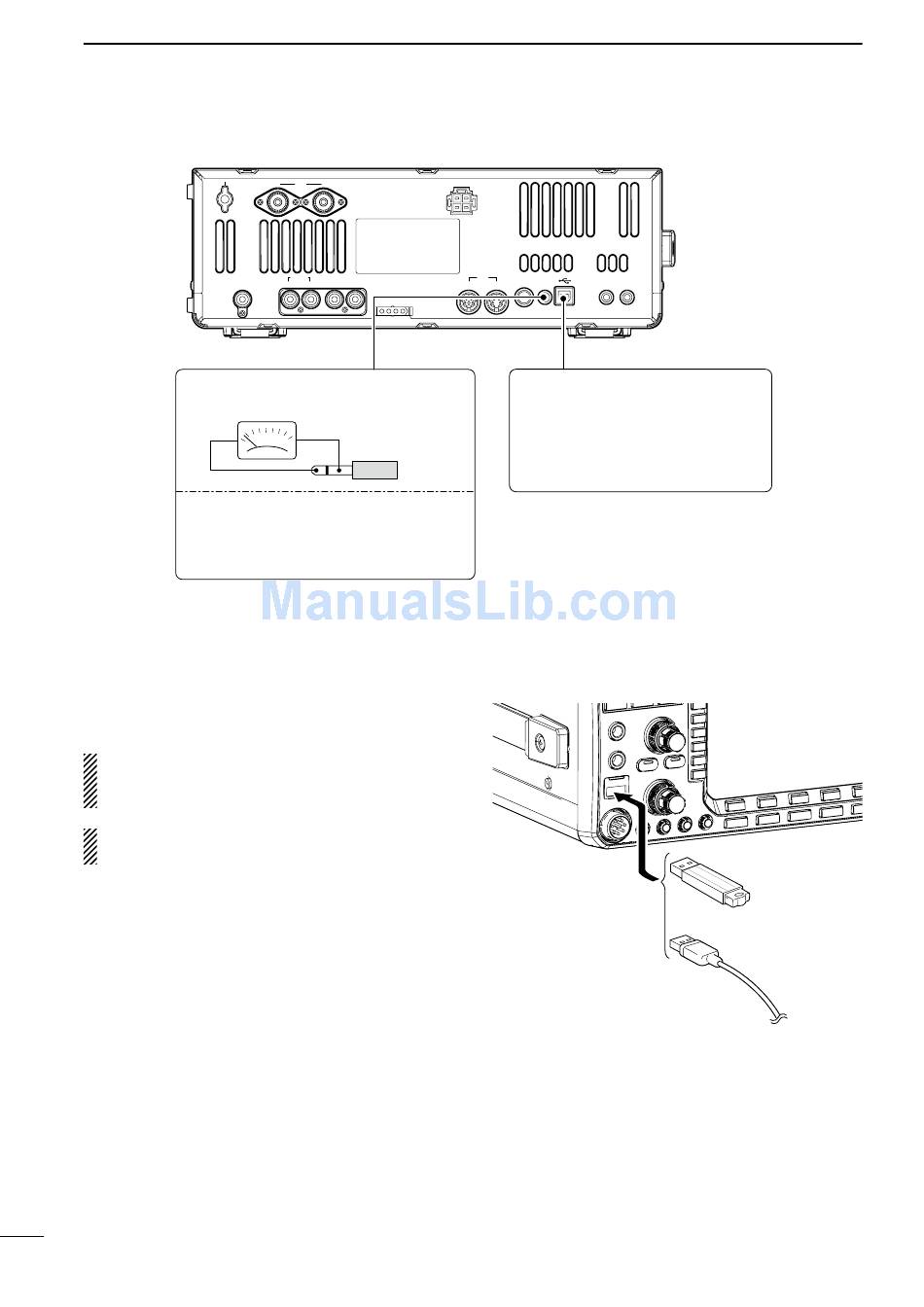

D Rear panel— 2
[METER]
Connect an external meter, etc.
Output impedance
Output voltage (open circuit) : 2.5 V (default)
Output voltage can be adjusted 0 to 5 V
in ACC set mode. (p. 125)

■ USB connection

Connect the USB-Memory* to the USB connector
(A type) on the front panel.
• Unmount operaton s recommended before removng the
USB-Memory* (p.142).
Be sure to connect the USB-Memory correctly.
NEVER connect or remove the USB-Memory when
the read/wrte ndcator lghts or blnks.
A USB keyboard* or a USB hub* can also be
connected to the USB connector.
* USB-Memory, USB keyboard and USB hub are not
suppled by Icom.
19
1 ANT 2
RX-ANT
X-VERTER IN OUT ALC SEND
TUNER
3.5 (d) mm; 1⁄8" plug
: 4.7 kø
DC 13.8V
ACC
1 2 KEY METER REMOTE EXT-SP
[USB] (B)
When the transceiver is connected
to a PC, a USB cable (purchase
separately) should be connected to
the USB connector (B type) on the
rear panel. (p. 11)
or
