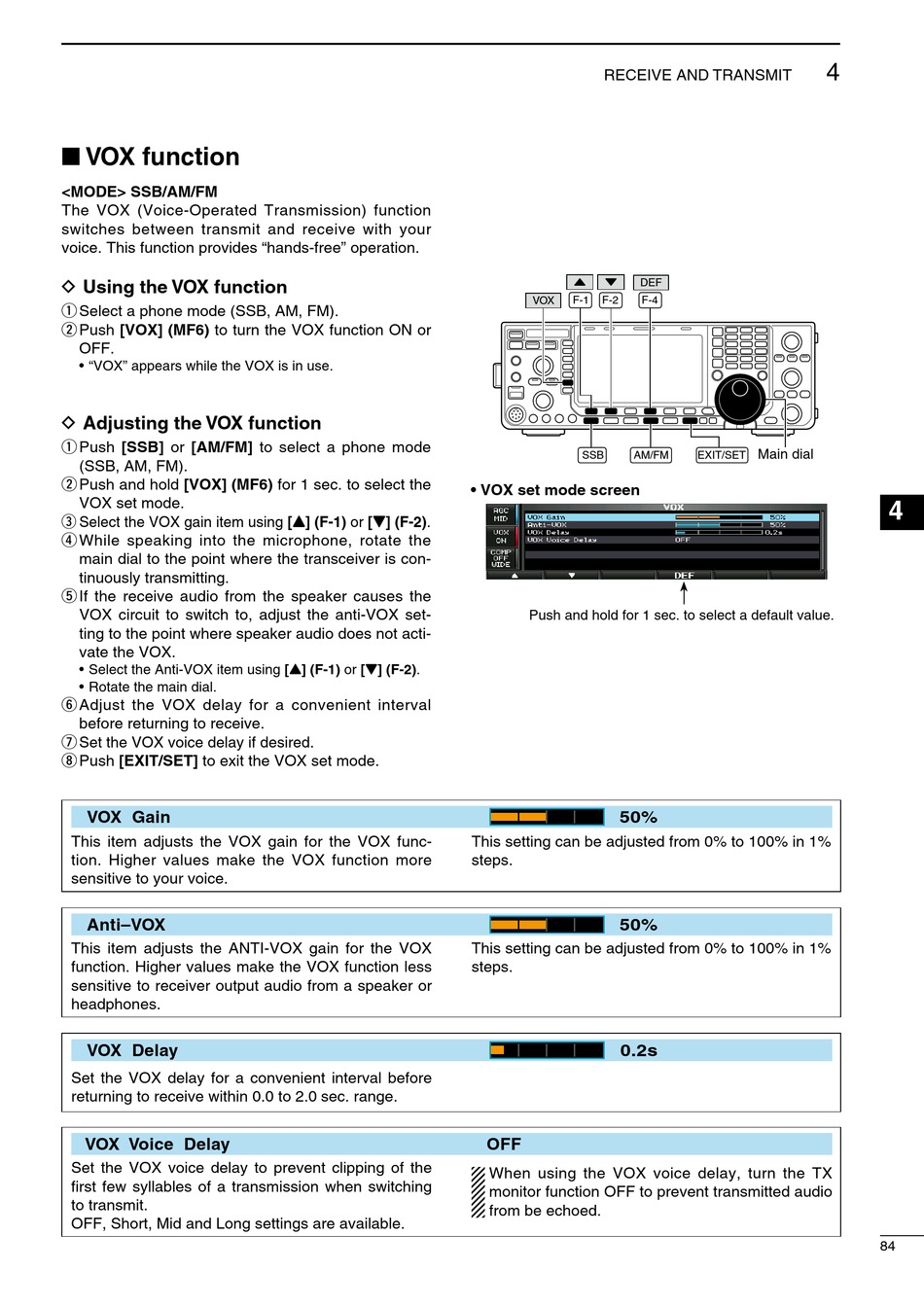

■ VOX function

<MODE> SSB/AM/FM
The VOX (Voce-Operated Transmsson) functon
swtches between transmt and receve wth your
voce. Ths functon provdes "hands-free" operaton.

D Using the VOX function

q Select a phone mode (SSB, AM, FM).
w Push [VOX] (MF6) to turn the VOX functon ON or
OFF.
• "VOX" appears whle the VOX s n use.
D Adjusting the VOX function
q Push [SSB] or [AM/FM] to select a phone mode
(SSB, AM, FM).
w Push and hold [VOX] (MF6) for 1 sec. to select the
VOX set mode.
e Select the VOX gan tem usng [Y] (F-1) or [Z] (F-2).
r Whle speakng nto the mcrophone, rotate the
man dal to the pont where the transcever s con-
tnuously transmttng.
t If the receve audo from the speaker causes the
VOX crcut to swtch to, adjust the ant-VOX set-
tng to the pont where speaker audo does not act-
vate the VOX.
• Select the Ant-VOX tem usng [Y] (F-1) or [Z] (F-2).
• Rotate the man dal.
y Adjust the VOX delay for a convenent nterval
before returnng to receve.
u Set the VOX voce delay f desred.
i Push [EXIT/SET] to ext the VOX set mode.
VOX Gain
Ths tem adjusts the VOX gan for the VOX func-
ton. Hgher values make the VOX functon more
senstve to your voce.
Anti–VOX
Ths tem adjusts the ANTI-VOX gan for the VOX
functon. Hgher values make the VOX functon less
senstve to recever output audo from a speaker or
headphones.
VOX Delay
Set the VOX delay for a convenent nterval before
returnng to receve wthn 0.0 to 2.0 sec. range.
VOX Voice Delay
Set the VOX voce delay to prevent clppng of the
frst few syllables of a transmsson when swtchng
to transmt.
OFF, Short, Md and Long settngs are avalable.
RECEIVE AND TRANSMIT
DEF
VOX F-1 F-2 F-4
SSB AM/FM
• VOX set mode screen
Push and hold for 1 sec. to select a default value.
50%
Ths settng can be adjusted from 0% to 100% n 1%
steps.
50%
Ths settng can be adjusted from 0% to 100% n 1%
steps.
0.2s
OFF
When usng the VOX voce delay, turn the TX
montor functon OFF to prevent transmtted audo
from be echoed.
