11

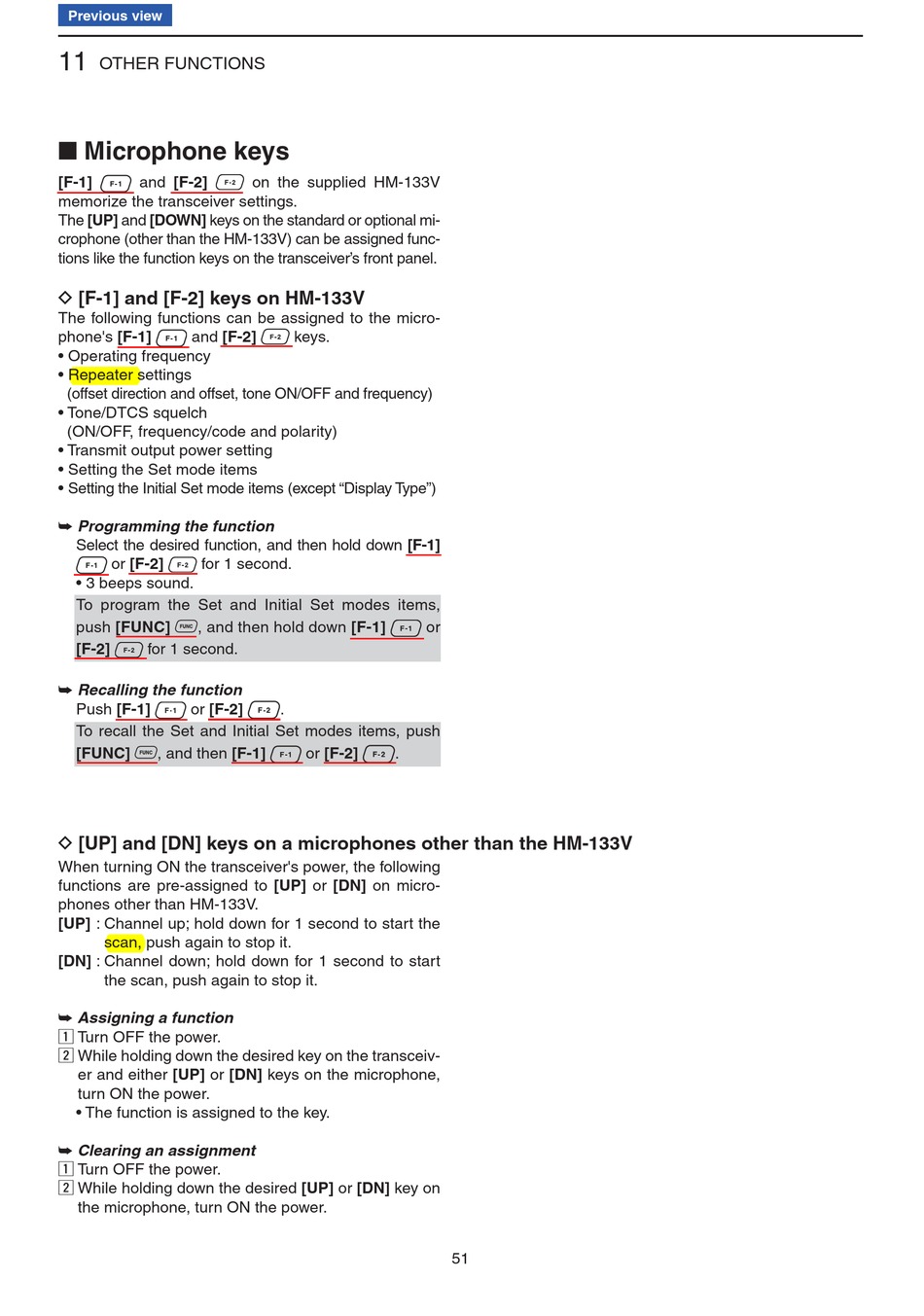

OTHER FUNCTIONS

■ Microphone keys

[F-1] and [F-2]
memorize the transceiver settings.
The [UP] and [DOWN] keys on the standard or optional mi-
crophone (other than the HM-133V) can be assigned func-
tions like the function keys on the transceiver's front panel.
D
[F-1] and [F-2] keys on HM-133V
The following functions can be assigned to the micro-
phone's [F-1] and [F-2]
• Operating frequency
• Repeater settings
(offset direction and offset, tone ON/OFF and frequency)
• Tone/DTCS squelch
(ON/OFF, frequency/code and polarity)
• Transmit output power setting
• Setting the Set mode items
• Setting the Initial Set mode items (except "Display Type")
➥ Programming the function
Select the desired function, and then hold down [F-1]
or [F-2] for 1 second.
• 3 beeps sound.
To program the Set and Initial Set modes items,
push [FUNC] , and then hold down [F-1]
[F-2] for 1 second.
➥ Recalling the function
Push [F-1] or [F-2]
To recall the Set and Initial Set modes items, push
[FUNC] , and then [F-1]
D
[UP] and [DN] keys on a microphones other than the HM-133V
When turning ON the transceiver's power, the following
functions are pre-assigned to [UP] or [DN] on micro-
phones other than HM-133V.
[UP] : Channel up; hold down for 1 second to start the
scan, push again to stop it.
[DN] : Channel down; hold down for 1 second to start
the scan, push again to stop it.
➥ Assigning a function
z Turn OFF the power.
x While holding down the desired key on the transceiv-
er and either [UP] or [DN] keys on the microphone,
turn ON the power.
• The function is assigned to the key.
➥ Clearing an assignment
z Turn OFF the power.
x While holding down the desired [UP] or [DN] key on
the microphone, turn ON the power.
on the supplied HM-133V
keys.
.
or [F-2] .
or
51
