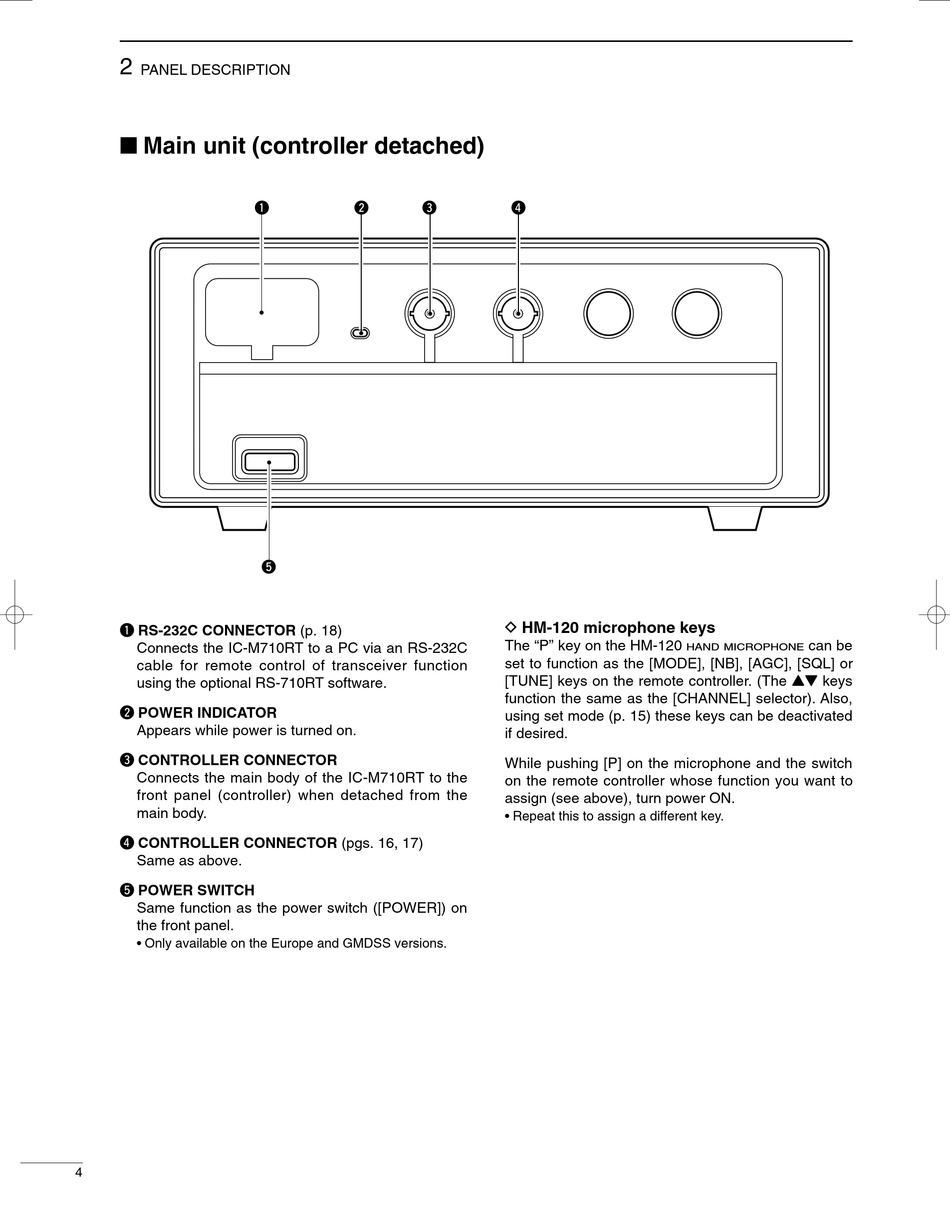

PANEL DESCRIPTION

I Main unit (controller detached)

q RS-232C CONNECTOR (p. 18)

Connects the IC-M710RT to a PC via an RS-232C

cable for remote control of transceiver function

using the optional RS-710RT software.

w POWER INDICATOR

Appears while power is turned on.

e CONTROLLER CONNECTOR

Connects the main body of the IC-M710RT to the

front panel (controller) when detached from the

main body.

r CONTROLLER CONNECTOR (pgs. 16, 17)

Same as above.

t POWER SWITCH

Same function as the power switch ([POWER]) on

the front panel.

• Only available on the Europe and GMDSS versions.

The "P" key on the HM-120

set to function as the [MODE], [NB], [AGC], [SQL] or

[TUNE] keys on the remote controller. (The YZ keys

function the same as the [CHANNEL] selector). Also,

using set mode (p. 15) these keys can be deactivated

if desired.

While pushing [P] on the microphone and the switch

on the remote controller whose function you want to

assign (see above), turn power ON.

• Repeat this to assign a different key.

can be

HAND MICROPHONE
