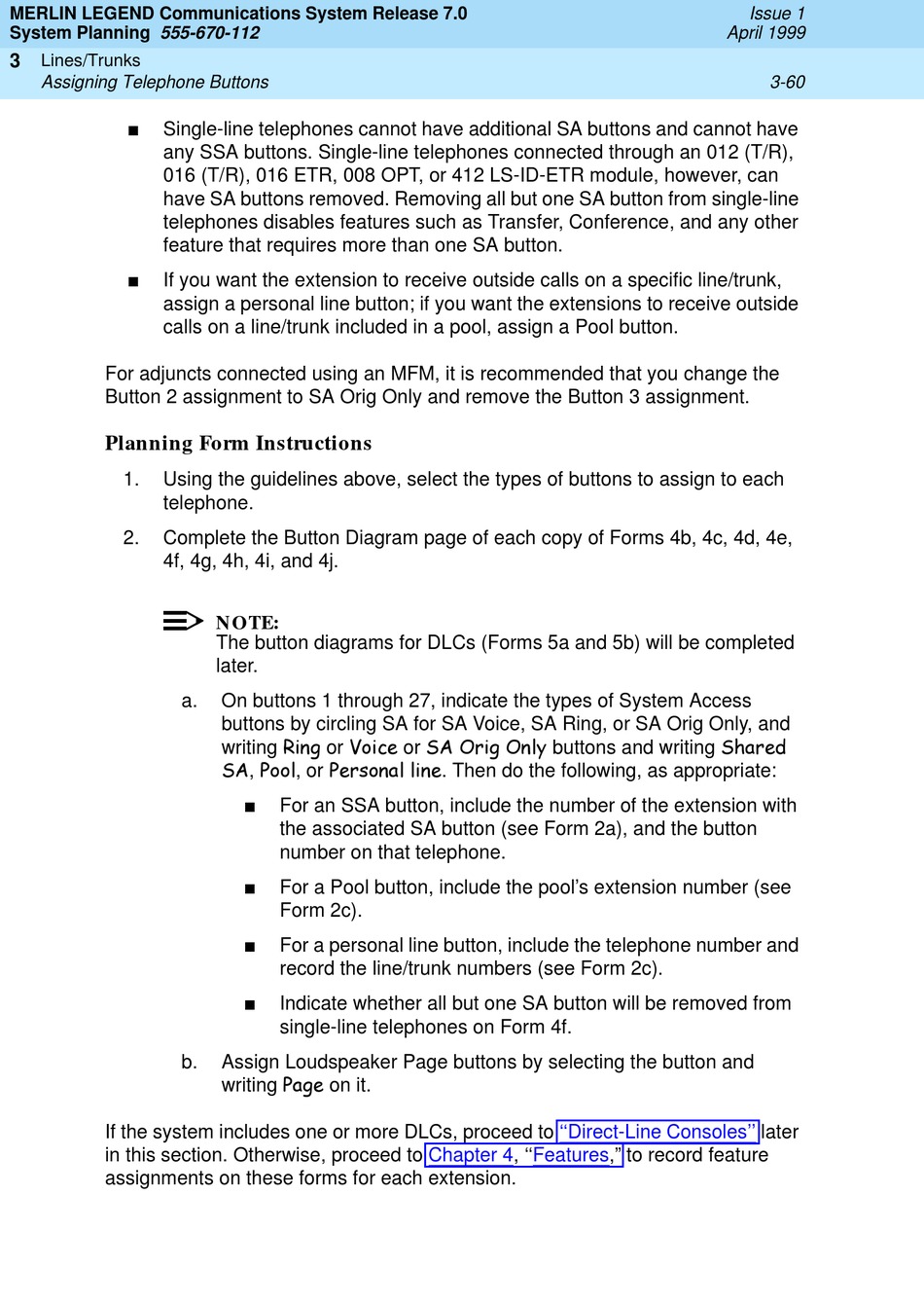

MERLIN LEGEND Communications System Release 7.0
System Planning 555-670-112
3
Lines/Trunks
Assigning Telephone Buttons
Single-line telephones cannot have additional SA buttons and cannot have
any SSA buttons. Single-line telephones connected through an 012 (T/R),
016 (T/R), 016 ETR, 008 OPT, or 412 LS-ID-ETR module, however, can
have SA buttons removed. Removing all but one SA button from single-line
telephones disables features such as Transfer, Conference, and any other
feature that requires more than one SA button.
If you want the extension to receive outside calls on a specific line/trunk,
assign a personal line button; if you want the extensions to receive outside
calls on a line/trunk included in a pool, assign a Pool button.
For adjuncts connected using an MFM, it is recommended that you change the
Button 2 assignment to SA Orig Only and remove the Button 3 assignment.
Planning Form Instructions
1.
Using the guidelines above, select the types of buttons to assign to each
telephone.
2.
Complete the Button Diagram page of each copy of Forms 4b, 4c, 4d, 4e,
4f, 4g, 4h, 4i, and 4j.
a.
b.
If the system includes one or more DLCs, proceed to
in this section. Otherwise, proceed to
assignments on these forms for each extension.
NOTE:
The button diagrams for DLCs (Forms 5a and 5b) will be completed
later.
On buttons 1 through 27, indicate the types of System Access
buttons by circling SA for SA Voice, SA Ring, or SA Orig Only, and
writing
or
,
, or
For an SSA button, include the number of the extension with
the associated SA button (see Form 2a), and the button
number on that telephone.
For a Pool button, include the pool's extension number (see
Form 2c).
For a personal line button, include the telephone number and
record the line/trunk numbers (see Form 2c).
Indicate whether all but one SA button will be removed from
single-line telephones on Form 4f.
Assign Loudspeaker Page buttons by selecting the button and
writing
on it.
or
buttons and writing
. Then do the following, as appropriate:
''Direct-Line Consoles''
Chapter
4, ''Features," to record feature
Issue 1
April 1999
3-60
3
later
