Hardware
Supplemental Alert
Adapter
A supplemental alert adapter (SAA) allows the connection of an alerting device
such as a bell or chime to an analog multiline telephone (see Figure 5-16).
These alerts notify people working in noisy areas of incoming calls.

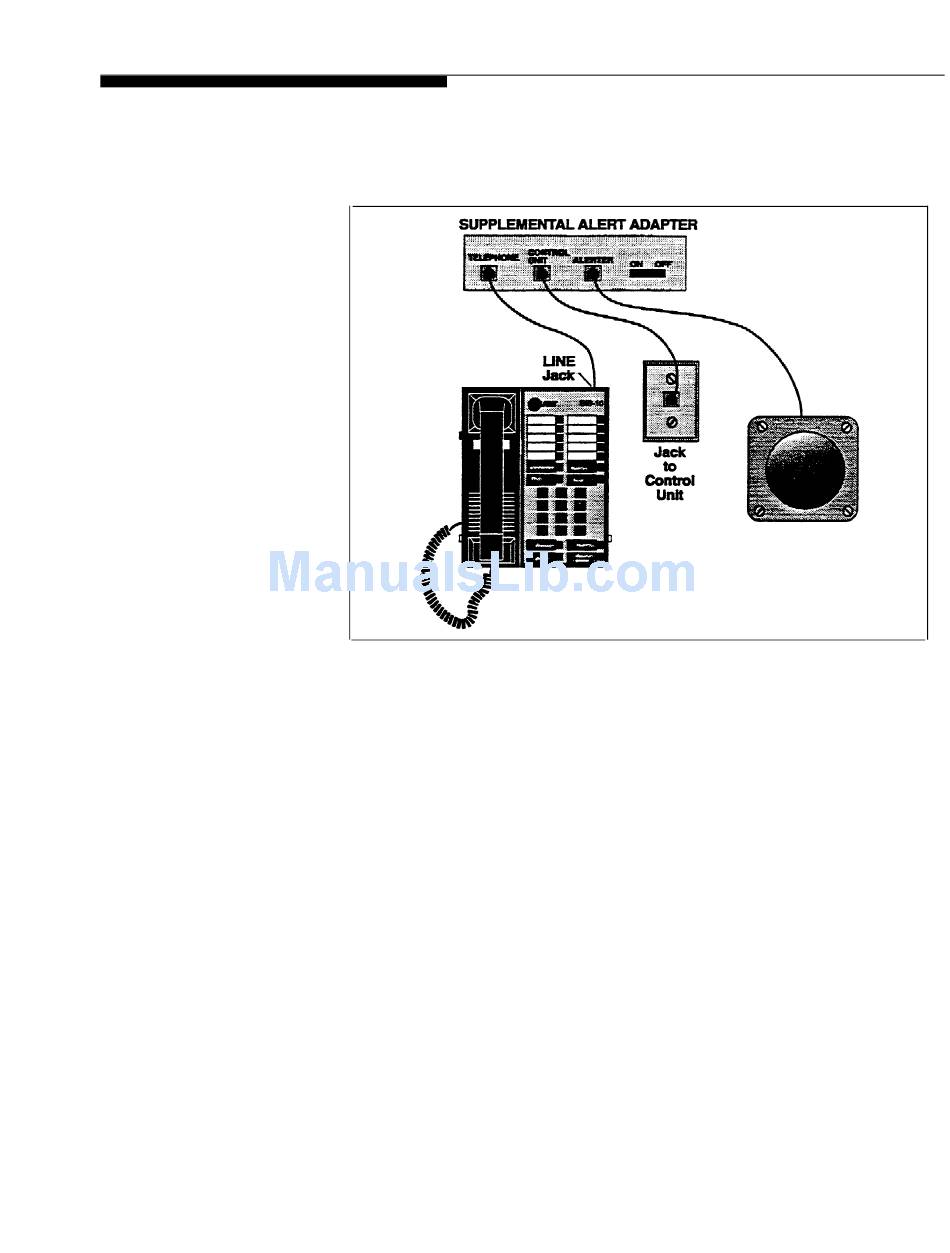

Figure 5-16

SAA Connections

The telephone cord plugs into the jack labeled TELEPHONE; the cord from the
external alert device plugs into the jack labeled ALERTER; and the cord from the
station jack plugs into the jack labeled CONTROL UNIT.
Adapters 5-29
