Chapter 2

Replacing the Top Cover

To replace the top cover, follow these steps:
1. If the HP Netserver is already laying on a flat surface with no power
applied, continue with Step 5.
2. If the HP Netserver was operating with the cover removed, power down
the operating system and turn off the Netserver's power switch.
3. Disconnect the power cord and any cables attached to the Netserver.
4. Remove the Netserver chassis from the rack and lay it on a flat surface.
5. Ensure the knob is turned to the "Open" position (clockwise position).
See Figure 2-2.
6. Place the rear edge of the top cover on the rear edge of the chassis and lay
it down on the chassis.
12
Opening and Closing the HP Netserver

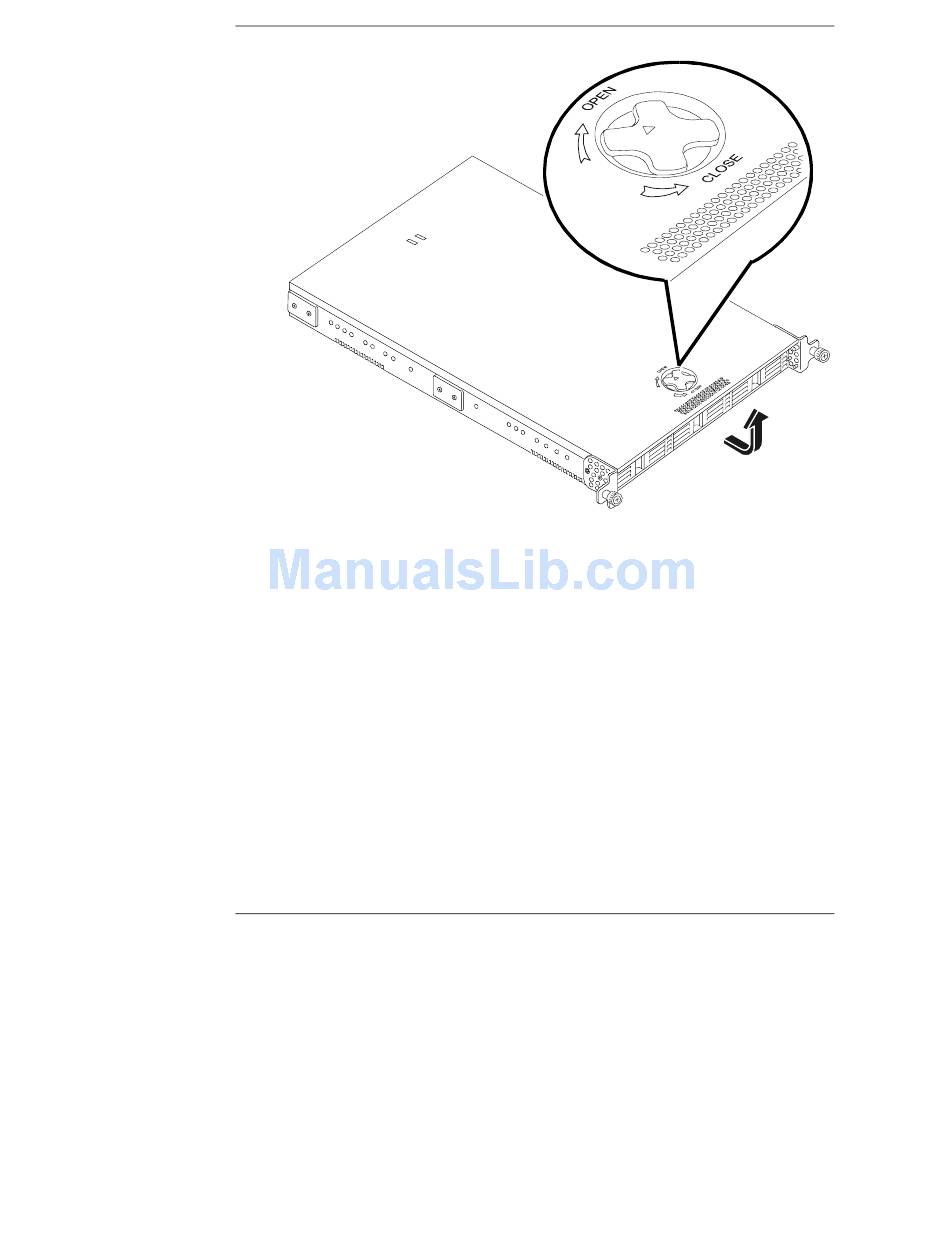

Figure 2-2. Removing the Top Cover
