Chapter 7
NOTE Use the HP Rack Configuration Tools to determine where in
the rack to mount the HP Netserver. The tools are available at:
1. Use the mounting brackets to help find the Netserver location on the
columns, as shown in Figure 7-2.
The screw holes cover a span of only one EIA unit, which is the height
requirement of the HP Netserver.
2. Use the masking tape (or marking pen) to mark above the 3rd hole up the
on face of both front columns, as shown in Figure 7-2.
NOTE The brackets use the 1st and 3rd holes on the respective front
columns, regardless of the mounting position of the Netserver.
The Netserver can only be mounted into both holes of one EIA
Unit, but cannot be mounted across two EIA units. You cannot
use a hole in one EIA unit and a hole in another EIA unit.
# "
" represents
the hole grouping
for EIA units on the
rack columns.
3rd Hole
From Bottom
1st Hole
From Bottom

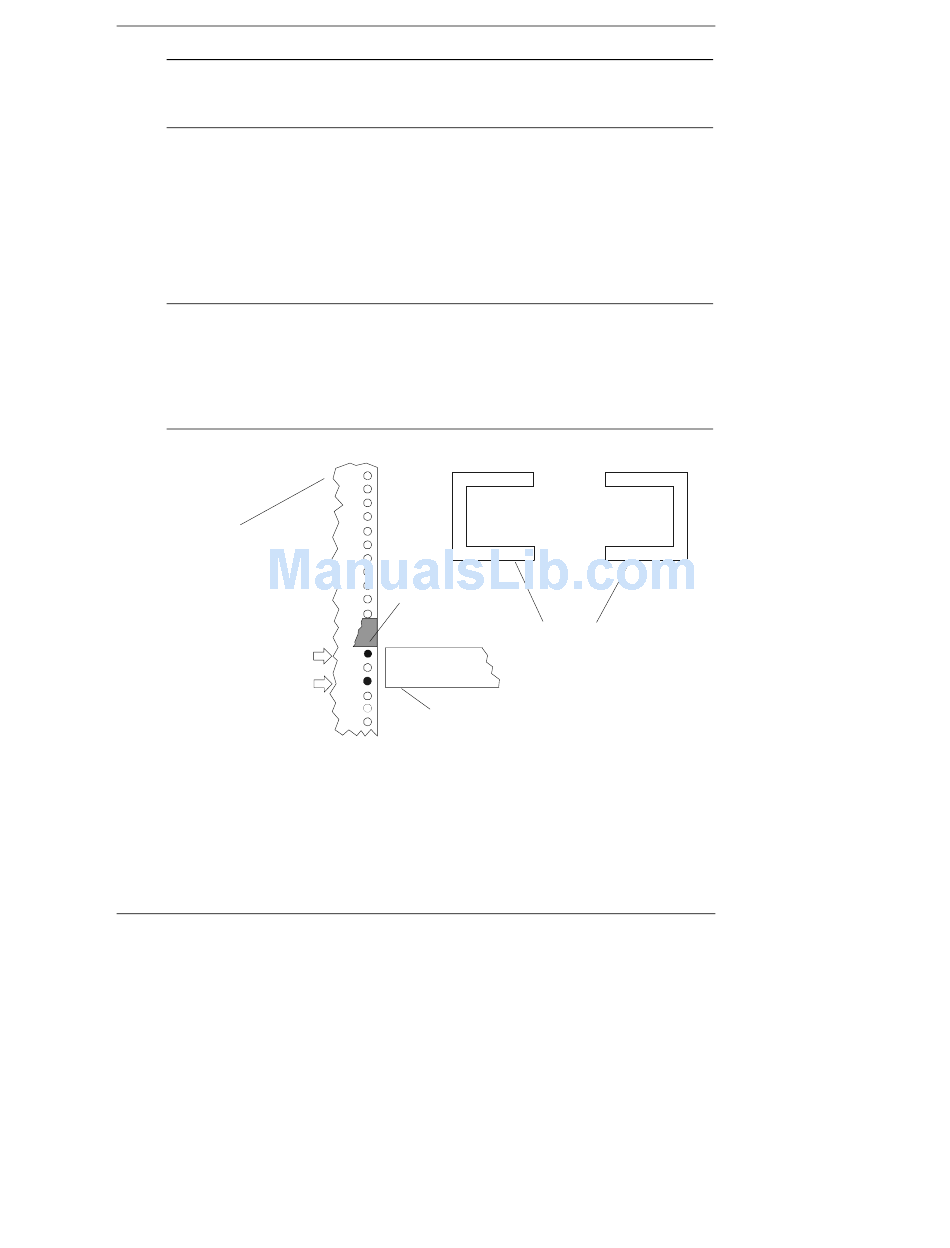

Figure 7-2. Locations on the Rack's Front Columns
Rack Mounting the HP Netserver (2-Post)
http: //www.hp.com/netserver/support
#
Left
#
Side
#
Masking
Tape
#
Marker
#
#
Bottom of
HP NetServer
Right
Side
Front of
Rack
Mark this face of
the columns with
masking tape
or marker pen.
