Chapter 8
Leveler
Screws (4)

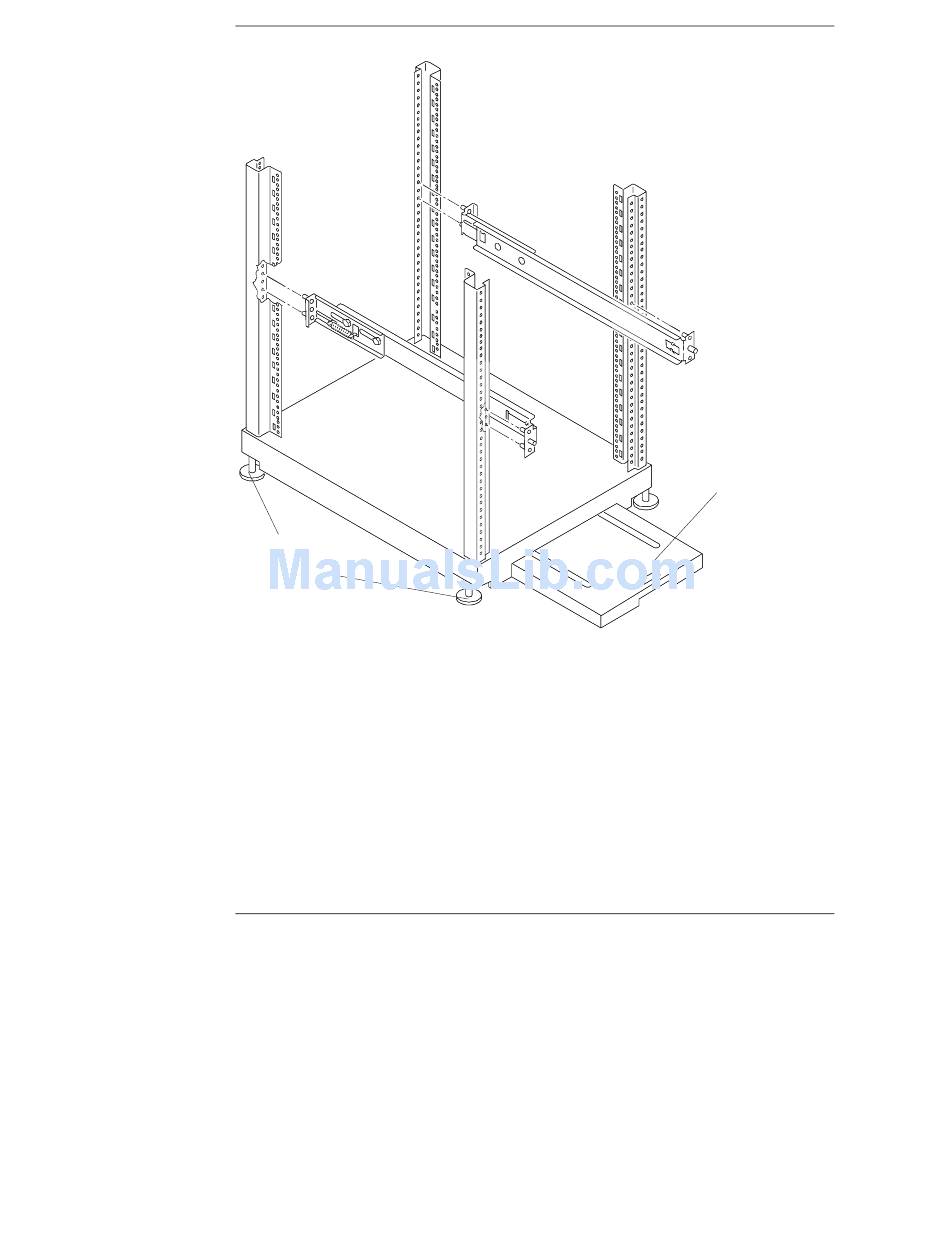

Figure 8-4. Mounting Outer-Rails to Columns
4. Match the outer-rail pins to the column holes (1st & 3rd) marked on the
front and rear columns. See Figure 8-3.
The mounting pins of the outer-rails should go into the inside face of the
rear column and the front face of the front column.
5. With the outer-rail assembly held in position at the rear, push in on the
front outer-rail mount and place in the two holes in the front column face.
A tension spring allows the outer-rails to compress during installation. The
outer-rails are held in place at of the front of the rack by a flat spring tab at
the rear face of the front columns. See Figures 8-2 and 8-5.
78
Rack Mounting the HP Netserver (4-Post)
Anti-tip Foot
Extended
