Chapter 3
2. Remove the SCSI drive from its protective packaging and open the ejector
arms as shown in Figure 3-3.
The SCSI drive should already be mounted in the Hot Swap mounting tray
adapter.
a. Place both thumbs in the center opening at the front of the SCSI drive.
b. Pull outward on both ejector arms, which moves the locking tabs
inward. See Figure 3-4.
You should hear the each ejector arm click as you pull it outward.
3. Gently slide the SCSI drive into the chassis, until you feel resistance.
See Figure 3-3.
The drive will meet resistance about a quarter of an inch before completely
seating in the drive bay.
4. Push the drive in firmly (all the way) to seat the drive in the connector on
SCSI back plane.
CAUTION
To prevent snapping off the ejector arms do not apply
excessive pressure.
5. Close the ejector arms by rotating each one back into place. See Figure 3-4.
Installing Mass Storage Devices

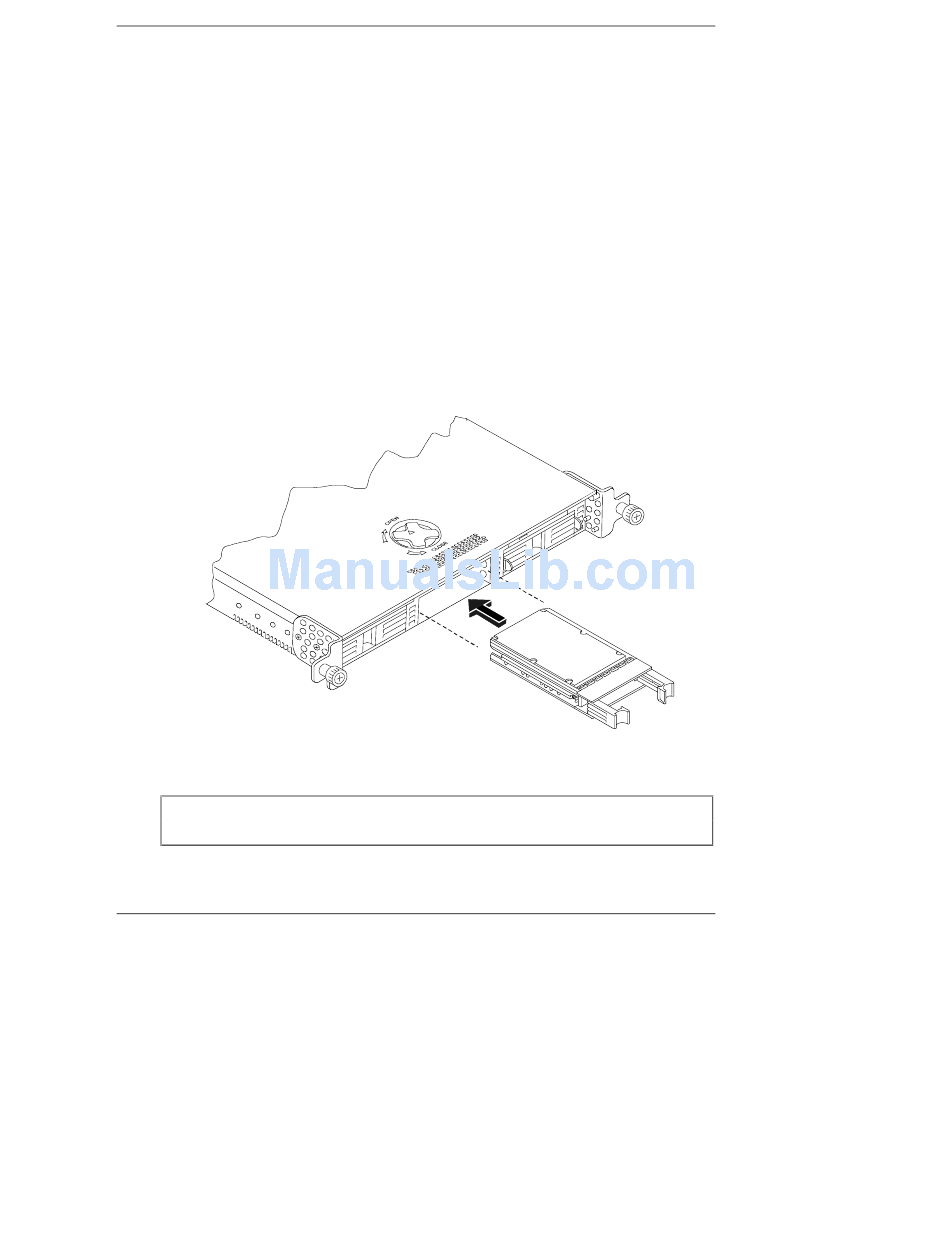

Figure 3-3. Inserting the Drive
