Chapter 8
5. Slowly move the Netserver chassis into the outer-rail assemblies until the
Netserver is completely in the rack. See Figures 8-6.
The securing brackets on the front of the Netserver should stop the chassis
from going all the way into the rack.
6. Secure the Netserver chassis to the rack with the captive screws.

Attaching the Front Bezel

The front bezel attaches to the HP Netserver by pivoting on two pins at the bottom
and grasping the top pins with spring latches. The middle pins force the bezel to
pivot in or out, ensuring a rotating action.
Rack Mounting the HP Netserver (4-Post)

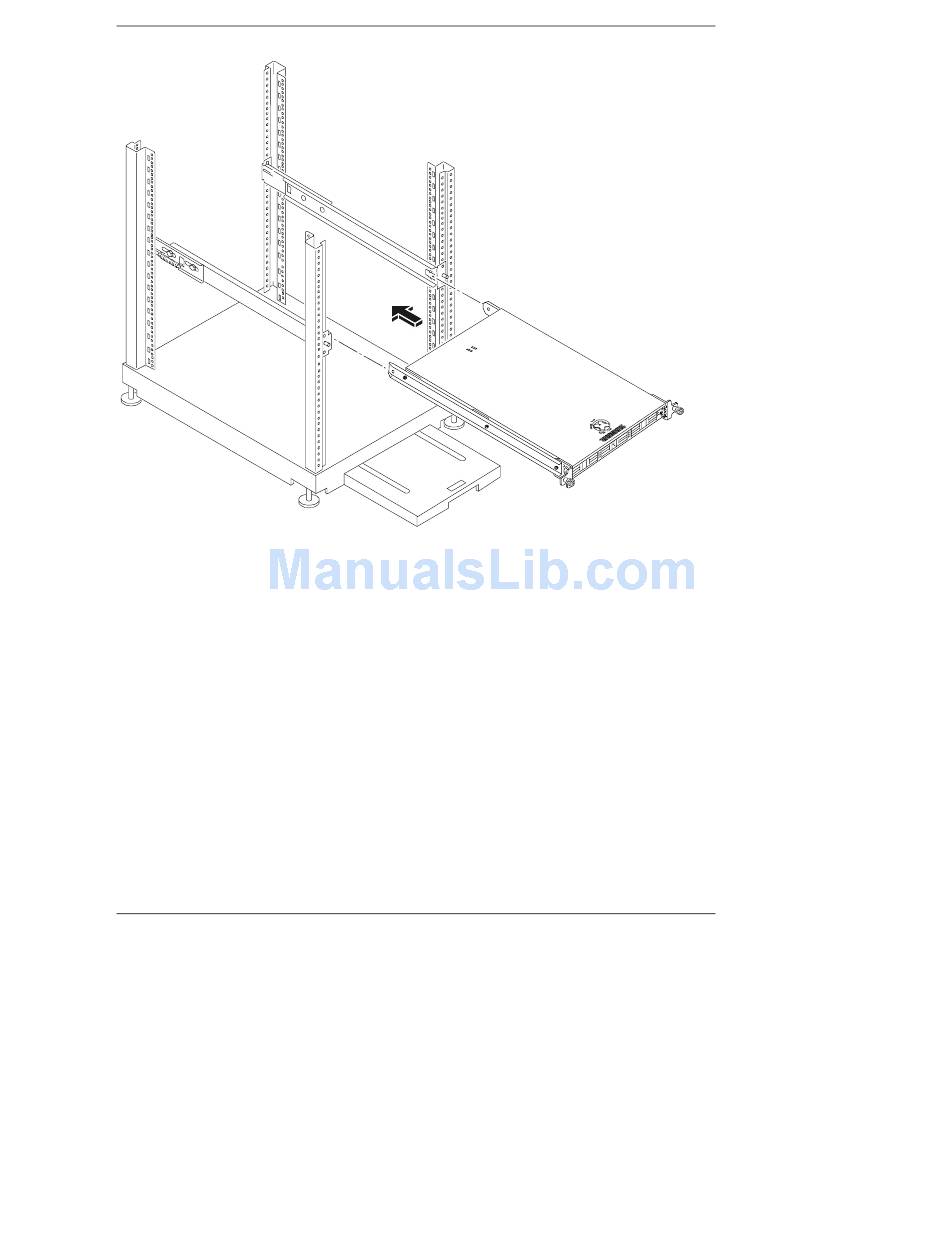

Figure 8-6. Mounting the HP Netserver
81
