Chapter 2
Removing the Air Duct
The air duct directs air from the fan onto the heatsinks of both processors. The air
duct also restricts access to both processors and all the DIMMs, and must be
removed for full access.
1. Loosen the two captive screws holding the air duct to the system board.
See Figure 2-4.
2. Remove the air duct from the system board.
Replacing the Air Duct
To replace the air duct, simply reverse the steps in the previous procedure.
14
Opening and Closing the HP Netserver

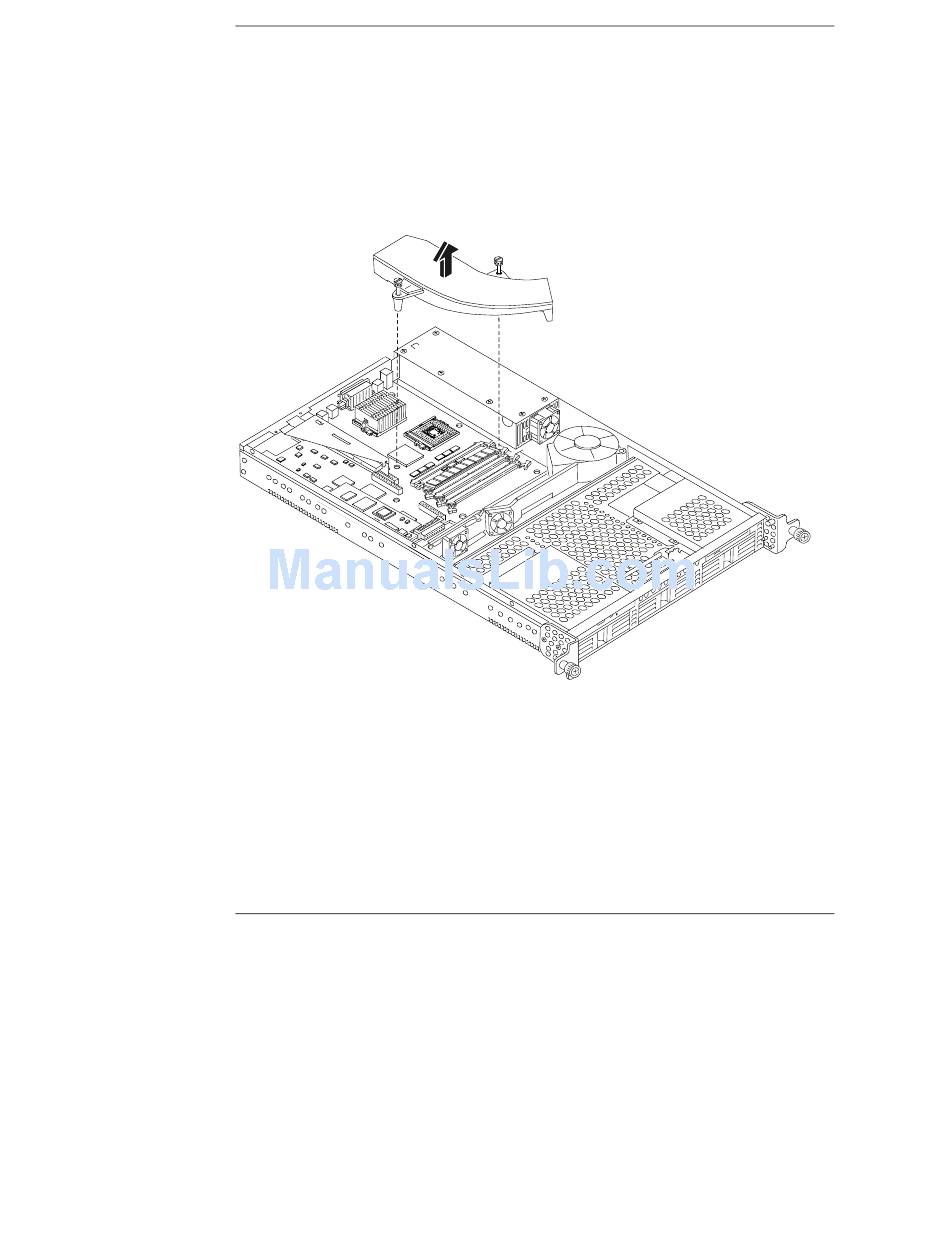

Figure 2-4. Removing the Air Duct
