Replacing The Front Bezel - HP D5970A - NetServer - LCII Guía Del Usuario

Chapter 2
4. Pull and lift the bezel out toward you and remove it from the chassis. See
Figure 2-1.
NOTE The front bezel pivots on two pins at the bottom and is held in
place at the top with spring latches holding onto the top pins.
The middle pins limit bezel rotation to an 80 angle.

Replacing the Front Bezel

1. Place the bottom edge of the front bezel into the hinge pins at the bottom
front of the chassis.
2. Rotate the top front of the bezel into place and push it in at the top,
allowing it to snap into place.
The spring latches grasp the pins at the top and hold the bezel in place.
10
Opening and Closing the HP Netserver

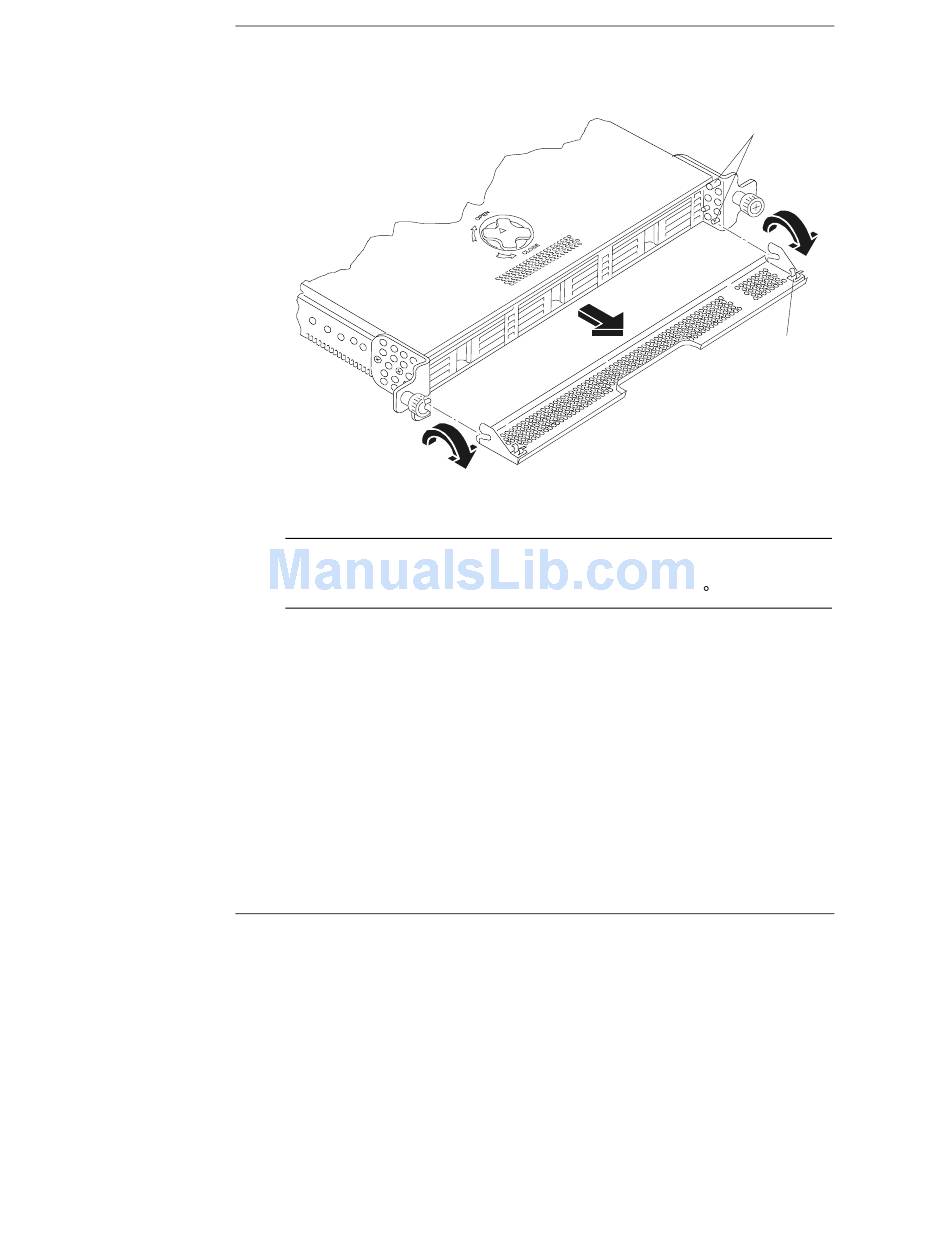

Figure 2-1. Front Bezel Location
Pins
Spring
Latch (2)
