Using grips to change stair flight width

Changing the Shape of a Flight

Use this procedure to change the top and bottom width of a single flight on U-shaped, multi-landing, or spiral-shape
stairs. Each side of a flight can be tapered independently using grip points.
For more information about stair grips, see
NOTE If you change the width of the stair after grip editing a side, the grip changes are lost.
1 Select the stair to modify.

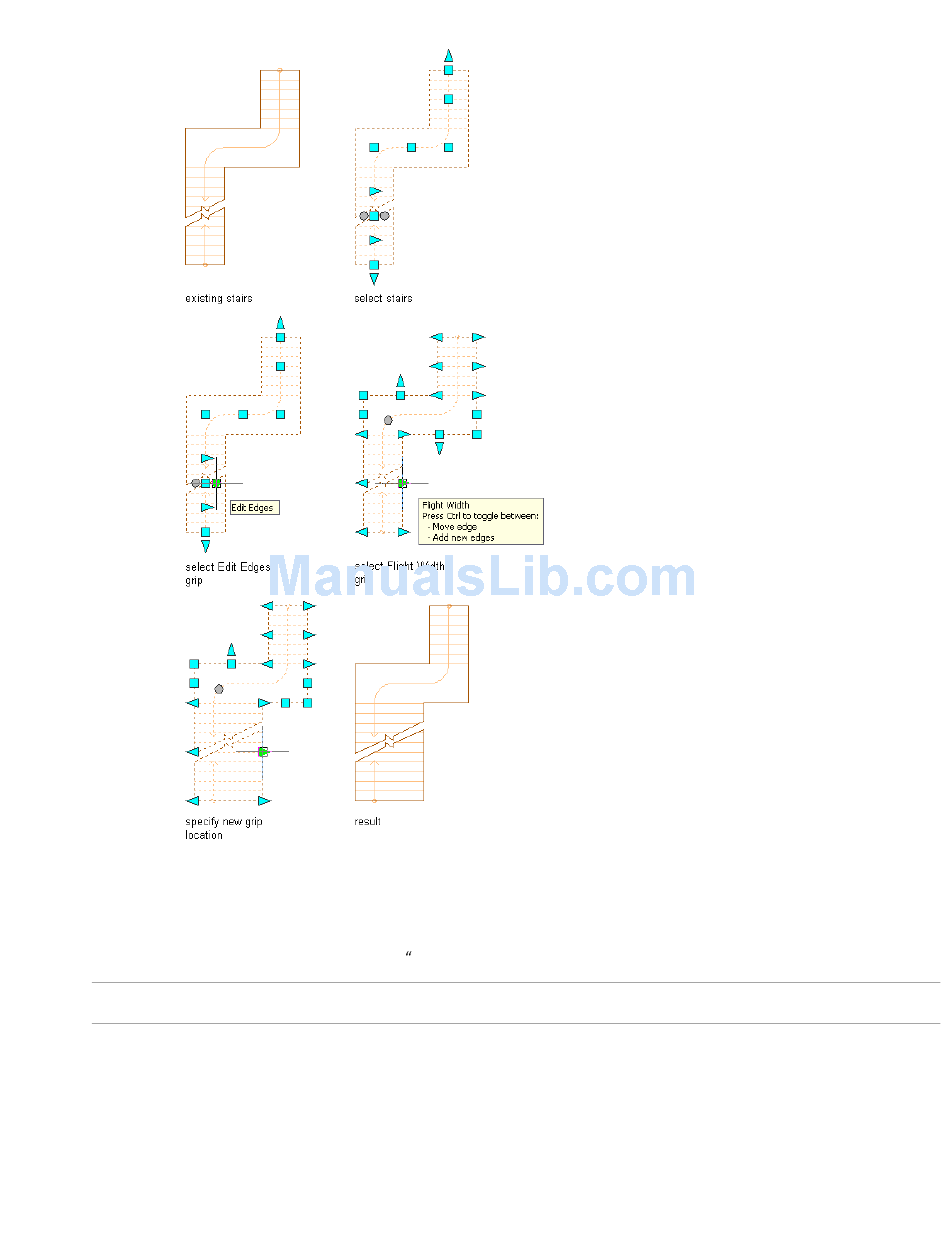

2 Select the Flight Taper grip on the stair flight, and move the grip away from stair path to new location.
The flight changes to the new shape.
1174 | Chapter 25 Stairs
Using Grips to Edit Stairs" on page 1160.
