Intersecting spaces with style-defined boundary offsets
Intersecting Spaces with Different Boundary Offsets
If the space boundaries of the 2 spaces are calculated with different offset types, the method used by the first selected
space is also used for the resulting space.
Example 1: The boundaries of space 1 are offset by style, and the style defines an offset between boundaries of 0.25 m.
The boundaries of space 2 are offset manually, and have 0 offset between the individual boundaries. If space 1 is
intersected with space 2, the base boundaries of the 2 spaces are intersected with each other, and the remaining
boundaries are recalculated by the offsets of the style of space 1, and offset from each other by 0.25 m.

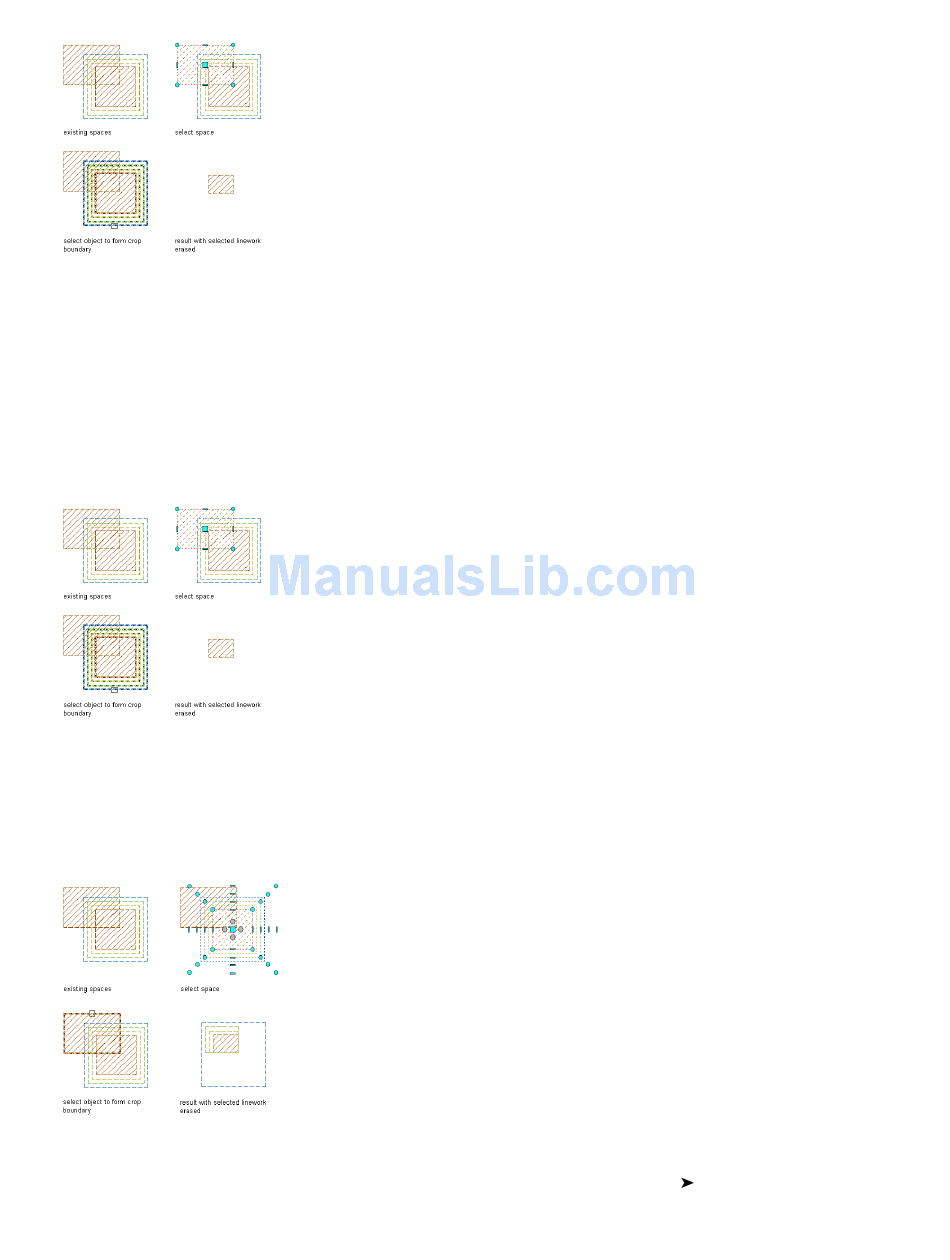

Intersecting style-based boundaries (left) with manual boundaries (right)
Example 2: The boundaries of space 1 are offset manually, and have 0.3 offset between the individual boundaries. The
boundaries of space 2 are offset by style, and the style defines an offset between boundaries of 0.25 m. If space 1 is
merged with space 2, the value of the Offset boundaries property for the resulting space will be Manual. Since the net,
usable, and gross boundaries of a space with style-based offsets are not grip-editable, only the base boundaries of both
spaces will be intersected. The boundaries of the second space are deleted from the drawing.
Intersecting manual boundaries (left) with style-based boundaries (right)
1 Create 2 overlapping spaces.
2 Select the first overlapping space, right-click, and click AEC Modify Tools
Boolean Operations for Extruded 3D Spaces | 1653
Crop.
