If you want to
save the changes
Changing Vertices in the Roof Line or Floor Line of a Wall
Use this procedure to perform the following tasks on the Roof/Floor Line worksheet on the Properties palette:
Add, move, or remove vertices in the roof line or the floor line of a wall.
Add gables or steps to a roof line or steps to a floor line that was previously edited by adding vertices that define
these conditions.
You can also edit the roof line and the floor line graphically. For more information, see
Floor Line of a Wall" on page 677.
1 Double-click the wall you want to change.
2 Expand Advanced, and expand Worksheets.
3 Select Roof/Floor Line.
4 Select Edit Roof Line, or select Edit Floor Line.

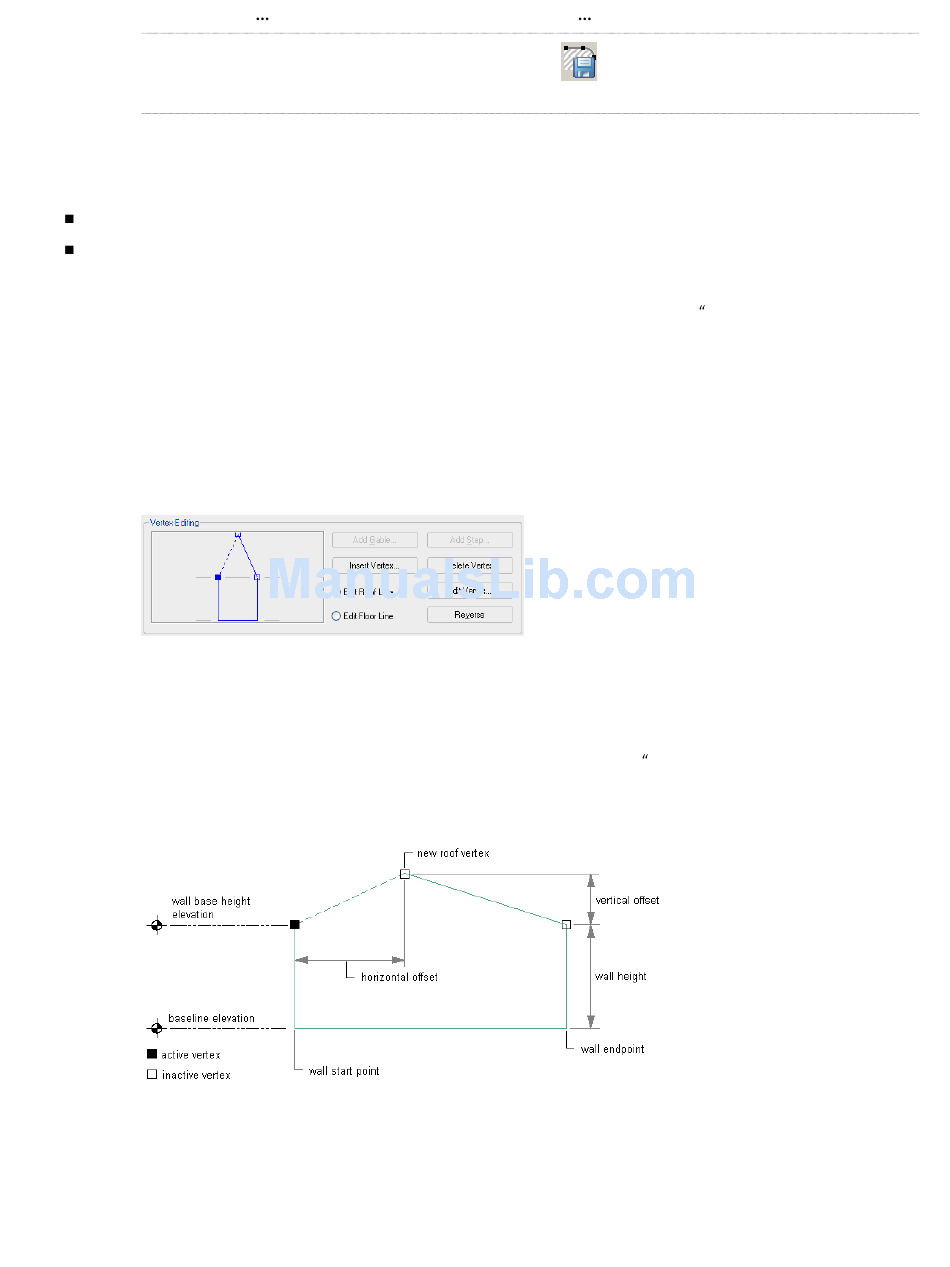

Changing the vertices of a roof line
The active vertex in the illustration changes when you select a different line to edit. Any changes you make
to the wall are reflected in the illustration.
5 To add a vertex, click Insert Vertex. Specify the horizontal offset and vertical offset for the new vertex and
each offset distance, and click OK.
For more information about specifying the location of a vertex, see
Floor Line Vertices" on page 746.
Modifying a roof line of a wall by adding a vertex
Then
click . The wall uses the edited profile to define its
geometry.
Changing the Roof Line and the Floor Line of a Wall | 681
Editing the Roof Line or the
Specifying Offsets for Roof Line and
