If you selected
Add as Cell Override and you want to insert
a door, window or door/window assembly
of the existing style and not modify the edge
of the frame surrounding the object
Add as Cell Override and you want to insert
a door, window or door/window assembly
of a different style than exists in your drawing
and not remove an edge of the frame
surrounding the object
Add as Cell Override and you want to insert
a door, window or door/window assembly
of the existing style and remove an edge of
the frame surrounding the object
Add as Cell Override and you want to insert
a door, window or door/window assembly
of a different style than exists in your drawing
and remove an edge of the frame
surrounding the object
6 Press
ENTER
Filling a Curtain Wall Cell with a Simple Panel
Use this procedure to fill a curtain wall cell with a simple panel. Simple panels are generally used to represent basic
cladding materials in the curtain wall, such as a stone wall panel or a concrete panel.
1 On the Format menu, click Style Manager.
2 Expand Architectural Objects, and expand Curtain Wall Styles.
3 Select a curtain wall style.
4 Click the Design Rules tab.
5 In the left pane, select the grid in which you want to put a simple panel infill.

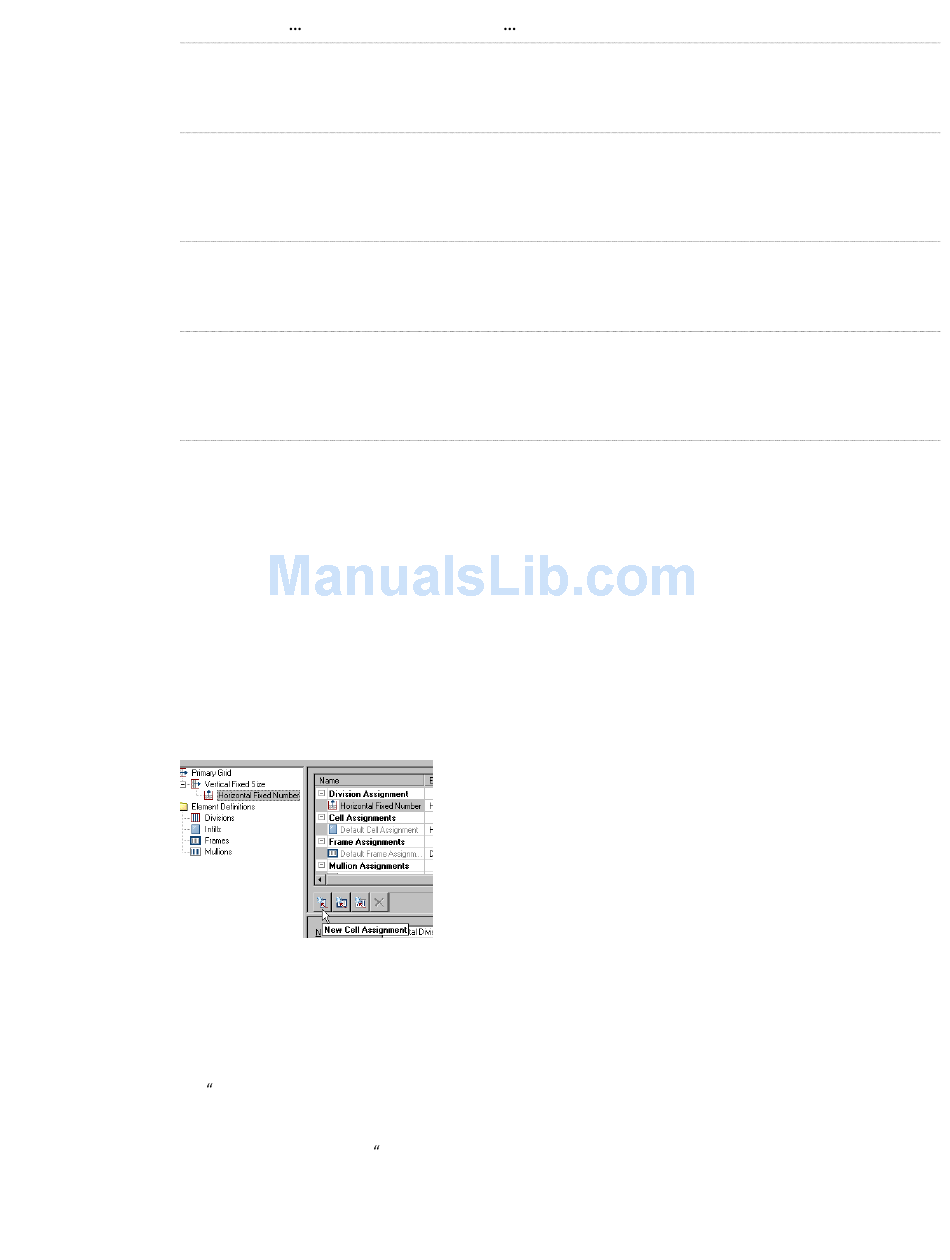

6 Click New Cell Assignment.
A new cell assignment is displayed in the list of cell assignments.
7 Select the cell assignment in the top right pane, right-click and click Rename, and then enter a descriptive
name.
8 Under Element, select an infill that defines a simple panel.
If you do not have a simple panel infill defined, then select New Infill and define one. For more information,
see Creating a Panel Infill for a Curtain
9 Specify the cells to contain this simple panel.
For more information, see
10 Click OK.
790 | Chapter 19 Curtain Walls
.
Specifying Which Curtain Wall Cells Use a Cell
Then
Click OK.
select New Infill, enter a name for the object and click OK.
select Top, Bottom, Left, or Right for Override Frame Removal and click OK.
select New Infill and enter a name for the object. Then select Top, Bottom,
Left, or Right for Override Frame Removal and click OK.
Wall" on page 774.
Assignment" on page 792.
